This series horizontal lathe is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch,modulus and diametrical.
 |
4800mm Max. Turned Length Universal Horizontal Heavy Duty Lathe Machine with 5m Swing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway/timac |
| Model Number: | AL-1600/5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 30 | Dimension(L*W*H): | 6120*2130*2380 |
| Weight (KG): | 20000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Heavy Duty Horizontal Lathe |
| Machine Type: | Horizontal Normal Lathe | Model: | AL-1600/5000 |
| Color: | Customrized | After-sales Service Provided: | 1 Year (no Human-made Reason) |
| Distance Between Centers: | 3000mm | Max.swing Over Bed: | 1600mm |
| Spindle Speed: | 3.15-315rpm | Spindle Bore: | 100mm |
| Bed Width: | 1100mm | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Indonesia, Sri Lanka, Japan | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine |
| Max. Turned Length (mm): | 4800 Mm | ||
Product Description
Products Description

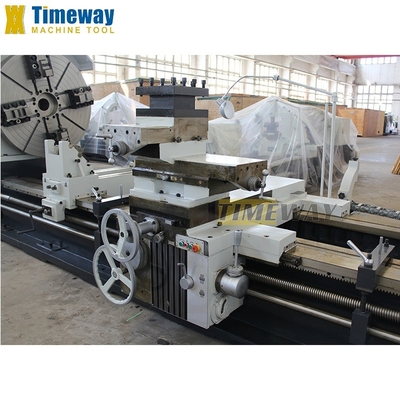

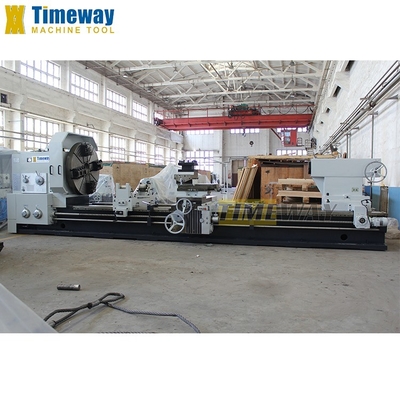

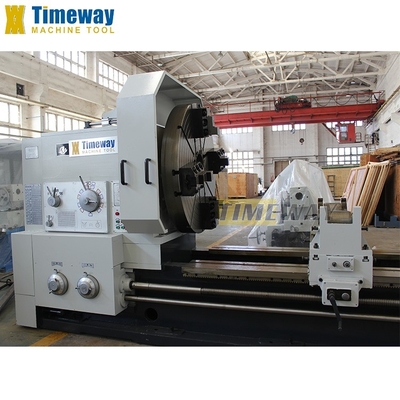

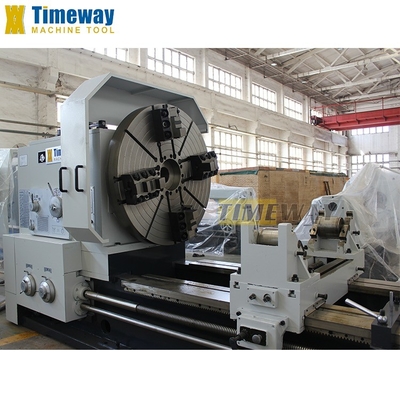

High Precision Heavy Duty Horizontal lathe machine
Product Paramenters
Specifications | Unit | AL-1600 |
Swing over bed | mm | 1600 |
Swing over carriage | mm | 1250 |
Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800 |
Span of guideway | mm | 1100 |
Max. weight of workpiece | t | 16 |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Taper hole of spindle | - | metric 140 |
Range of spindle speeds | r/min | foreward: 3.15-315, reversal: 3.5-291 |
No. of spindle speeds | steps | foreward: 21, reversal: 12 |
Longitudinal and cross | kinds | 56 |
Feed per revolution | mm/r | long longitudinal:0.1-12, cross:0.05-6, top tool-post：0.025-3 |
No. and range of metric thread | mm | 1-120 (44) |
No. and range of inch thread | TPI | 28-1/4 (31) |
No. and range of module thread | MP | 0.5-60 (45) |
No. and range of dia. thread | DP | 1/2-56 (38) |
Distance of spindle and tool plane | mm | 53 |
Tool post swing range | ° | ±90 |
Max. travel of cross slide | mm | 850 |
Max. travel of top slide | mm | 360 |
Section of tool shank | mm | 50x50 |
Travel of tool post (per turn of dials) | mm | 0.05 |
Dia. of tailstock quill | mm | 260 |
Travel of tailstock quill | mm | 300 |
Taper hole of tailstock quill | - | Metric 80 |
Main motor power | kw | 30 |
Length | mm | 6120/7120/8120/9120/11120/13120/15120 |
Width | mm | 2130 |
Height | mm | 2380 |
Details of Accessories:

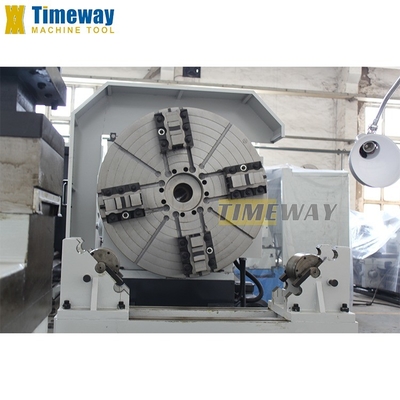

Standard accessories: * 4-jaw heavy duty independent chuck * Steady rest * Dead center * 4-station tool post * Cooling system * Work lamp * Electric moving tailstock * Tools & tool-box * Leveling wedge and bolts * Operation manual (English) | Optional accessories: * Face plate * 2 or 3-axis DRO * Chuck guard * Tool-post guard * Rear splash guard * Roller support * Grinding attachment |
