- This series heavy duty lathes adopt 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
- The main spindle is of precision roller bearing 3-point supporting structure.
- Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
- The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces,and turning of metric or inch threads, modular threads and diametrical pitch threads, etc.
- Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
- Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.
 |

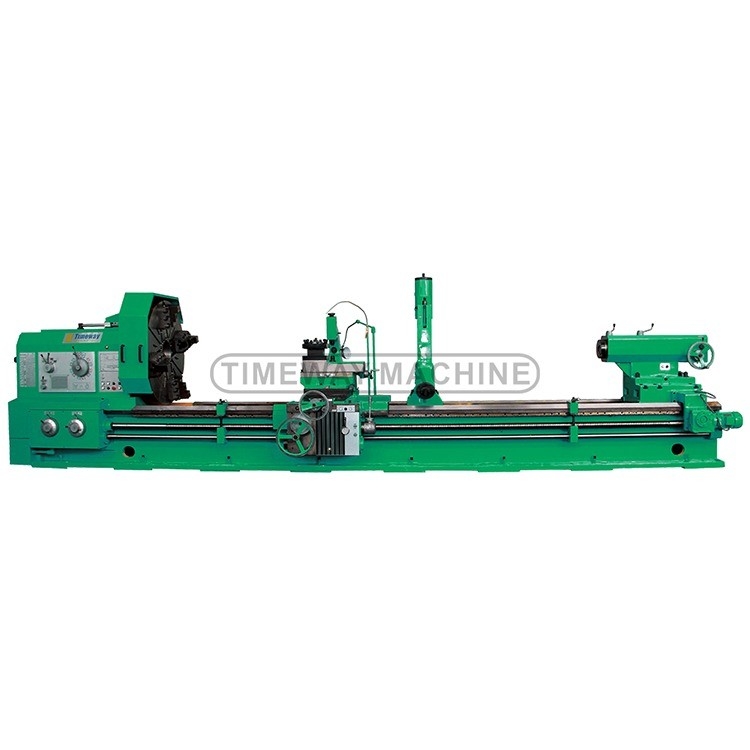

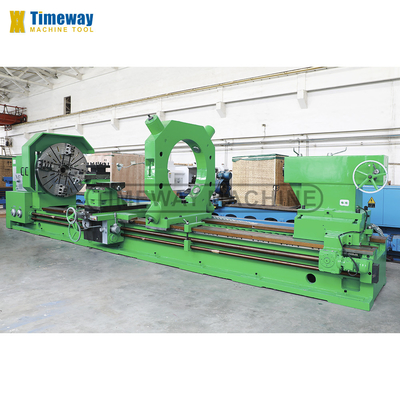

5000mm Distance between Centers Manual Lathe for Universal Horizontal Screw-Cutting
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | AL-1600C/5000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $71,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Dimension(L*W*H): | 8020*1995*2525 |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Heavy Duty Horizontal Lathe |
| Model: | AL-1600C/5000 | CNC Or Not: | Nomal |
| Color: | Customers' Request | Max.swing Over Bed: | 1600mm |
| Max. Swing Over Cross Bed: | 1210mm | Distance Between Centers: | 5000mm |
| Max.turning Length: | 4800mm | Bed Width: | 970mm |
| Spindle Bore: | 130mm | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Colombia, Algeria, Romania, Bangladesh, South Africa, Ukraine, Nigeria | Max. Turned Length (mm): | 4800 Mm |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine, Other | ||
Product Description
Product Description
Heavy Duty Horizontal Lathe
Model: AL-1250C, AL-1400C, AL-1600C, AL-1800C
Features:
Detailed Images

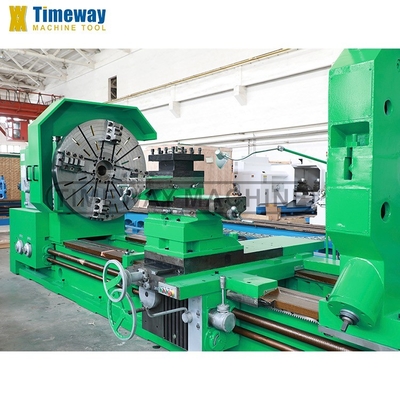

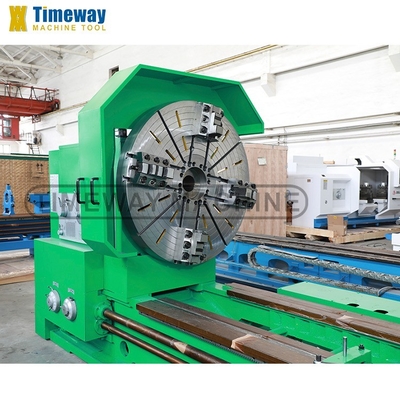

Headstock & Chuck
⇒ The horizontal lathes gain wide-range spindle speed of 3.15-315 rpm with 33 speeds.
⇒ The heavy duty lathes are equipped with 4-jaw heavy lathe chuck, strong clamping force.
⇒ The heavy duty lathes are equipped with 4-jaw heavy lathe chuck, strong clamping force.
Closed-type Steady Rest

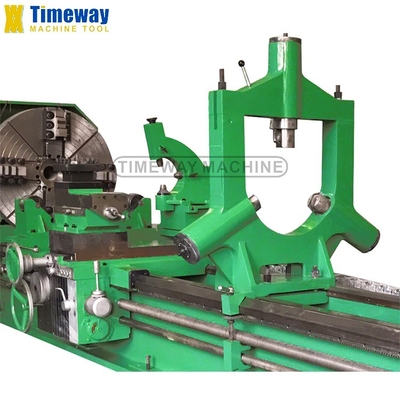

⇒ The steady rest adopts three-point supporting structure, positioning accuracy is higher.
Open-type Steady Rest
⇒ Roller support (open-type steady rest) is standard configuration, make sure cutting bigger parts.
⇒ The roller support move right and left on the rails of lathes through gear and rack, reduce labor intensity.
⇒ The roller support move right and left on the rails of lathes through gear and rack, reduce labor intensity.

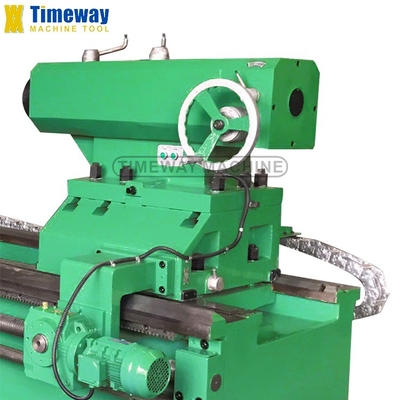

Motorized Tailstock
⇒ Horizontal lathes are equipped with motorized tailstock, movement simple and easy.
⇒ The sleeve of tailstock can rough feed and fine feed.
⇒ The sleeve of tailstock can rough feed and fine feed.
Specification
Specification | Unit | AL-1250C | AL-1400C | AL-1600C | AL-1800C | |||
Max.swing over bed | mm | 1250 | 1400 | 1600 | 1800 | |||
Max. swing over cross bed | mm | 865 | 1010 | 1210 | 1410 | |||
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/ | ||||||
Max.turning length | mm | 2800/3800/4800/5800/7800/9800/11800 | ||||||
Bed width | mm | 970 | 970 | 970 | 970 | |||
Max.cutting force | N | 45000 | 45000 | 45000 | 45000 | |||
Loading capacity | kg | 10000 | 10000 | 10000 | 10000 | |||
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed range | rpm | Forward:3.15-315,Reverse:3.5-291 | ||||||
Spindle speed step | steps | Forward:21,Reverse:12 | 56 | 56 | 56 | |||
X/Z-axis feed kinds | kinds | 56 | 56 | 56 | 56 | |||
Feed range | mm/r | longitudinal:0.1-12, cross:0.05-6, top tool-post：0.025-3 | ||||||
Metric threads range(kinds) | mm | 1-120(44) | 1-120(44) | 1-120(44) | 1-120(44) | |||
Inch threads range(kinds) | TPI | 28-1/4(31) | 28-1/4(31) | 28-1/4(31) | 28-1/4(31) | |||
Module threads range(kinds) | MP | 0.5-60(45) | 0.5-60(45) | 0.5-60(45) | 0.5-60(45) | |||
Diametrical threads range(kinds) | DP | 1/2-56(38) | 1/2-56(38) | 1/2-56(38) | 1/2-56(38) | |||
Cross slide travel | mm | 650 | 650 | 650 | 650 | |||
Top slide travel | mm | 300 | 300 | 300 | V4 | |||
Main motor power | kw | 22 | 22 | 22 | 30 | |||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020 | ||||||
Machine width | mm | 1995 | 1995 | 1995 | 2665 | |||
Machine height | mm | 2175 | 2325 | 2525 | 2680 | |||
Accessories
STANDARD ACCESSORIES
4-jaw heavy independent chuck,
Steady rest (over 3M length),
Follow rest,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
