Metal Machining Function Heavy Duty Horizontal Lathe Machine 3000mm Workpiece Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AL-1400C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 187 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 220V/380V/400V/415V | Dimension(L*W*H): | 7020*1995*2075 |
| Weight (KG): | 1900 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Manual Lathe Machine |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Product Name: | Manual Metal Lathe Machine |
| After-sales Service Provided: | Online Support | Keyword: | Universal Metal Lathe |
| Color: | Customrized | Precision: | High Precision |
| Function: | Machining Metal | Application: | Precision Metal Turning |
| Processing: | Metal Workpiece | Condition: | New |
| Spindle Bore(mm): | 38 | Showroom Location: | United States, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan |
| Core Components: | Bearing, Gear, Motor, Gearbox, Engine | Max. Turned Length (mm): | 2800 Mm |
| Year: | 2021 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Product Description
Heavy Duty Horizontal Lathe
1.This series heavy duty lathe adopts 970mm wide induction hardened and ground bed guide
ways, so of excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.
2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated.
Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
ways, so of excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.
2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with Teflon belt coated.
Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized turning could be done by top slide combined with longitudinal feed. Further more, these machines can also carry out drilling, trepanning and boring processes, etc.
Specification
Specification | Al-1250C | AL-1400C | AL-1600C | AL-1800C | ||||||
Capacity | Swing over bed | 1250 | 1400 | 1600 | 1800 | |||||
Swing over cross slide | 865 | 1010 | 1210 | 1280 | ||||||
Max.length of workpiece | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | |||||||||
Max.length of turning | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | |||||||||
Width of bed | 970 | |||||||||
Max.torque of spindle | 12590 | |||||||||
Max.cutting force | 45000 | |||||||||
Max.force of logitudinal | 18000 | |||||||||
Max.weight of workpiece | 10000 | |||||||||
Spindle | Dia.of spindle bore | 130 | ||||||||
Taper of spindle | metric140 | |||||||||
No.of forward turning | 21 kinds | |||||||||
No.of reverse turning | 12 kinds | |||||||||
Spindle speed | Forward | 3.15-315 | ||||||||
Reverse | 3.5-291 | |||||||||
Feed motion | No.of feeds per revolution | (Longitudinal/tranverse)56/56 | ||||||||
Feed per revolution | Longutudinal | 0.1-12(0.004"-0.473" | ||||||||
Tranverse | 0.05-6(0.002"-0.236") | |||||||||
Upper tool-post | 0.025-3(0.001"-0.118") | |||||||||
No.and range of metric thread | 44kinds:1-120 | |||||||||
No.and range of inch thread | 31kinds:28-1/4 | |||||||||
No.and range of module thread | 45kinds:0.5-60 | |||||||||
No.and range of diametrical thread | 38kinds:1/2-56 | |||||||||
Tool post | Size of tool shank | 45×45 | ||||||||
swing range of tool post | ±90º | |||||||||
Max.travel of cross slide | 650 | |||||||||
Max.travel of top slide | 300 | |||||||||
Rapid of tool post | Longitudianl:3740 Tranverse:1870 Top slide:935 | |||||||||
Tailstock | Dia.of tailstock quill | 220 | ||||||||
Travel of tailstock quill | 300 | |||||||||
Taper hole of tailstock quill | Morse No.6# | |||||||||
Others | Main motor power | 22 | ||||||||
Power of tool post rapid move motor | 1.5 | |||||||||
Power of cooling pump | 0.15 | |||||||||
Overall dimension | Length | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | ||||||||
Width | 1995 | |||||||||
Height | 2175 | 2325 | 2525 | 2725 | ||||||

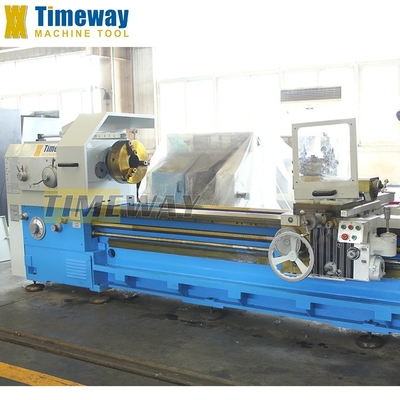

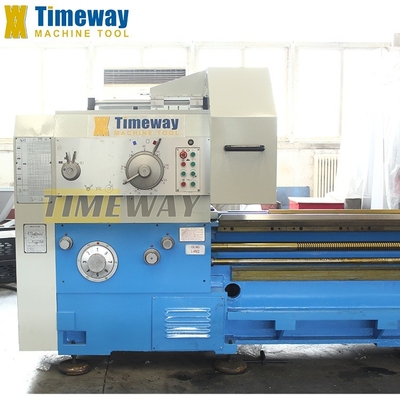

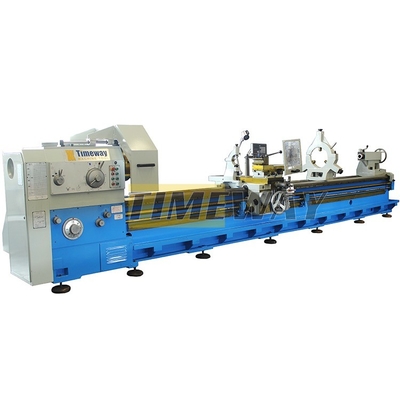

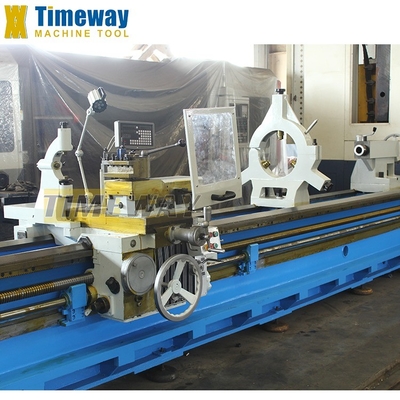

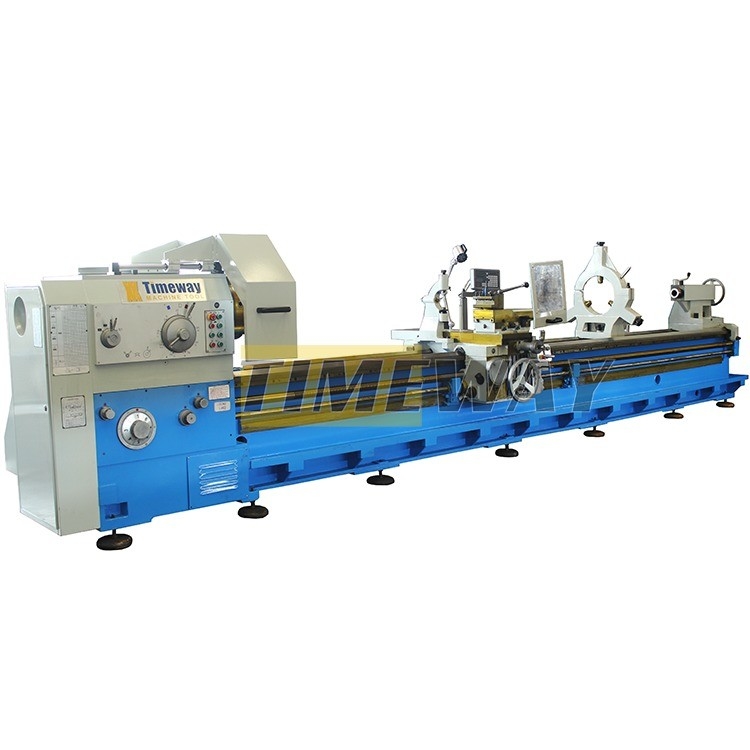

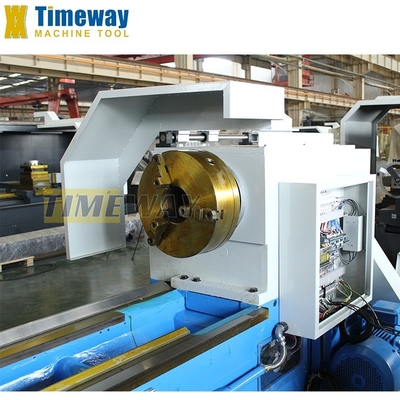

Detailed Images
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
