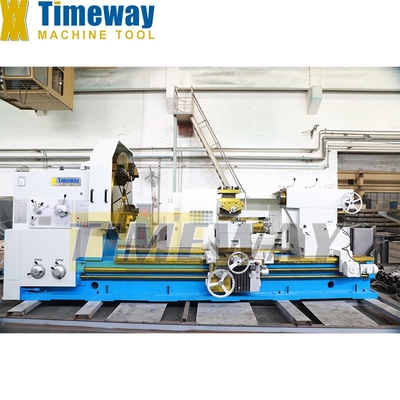

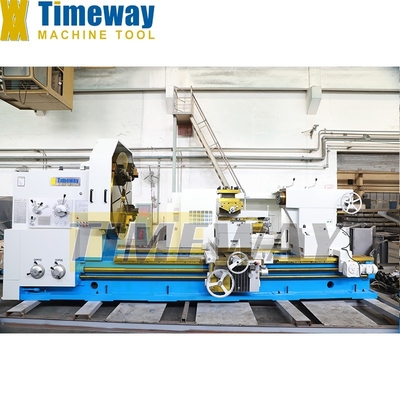

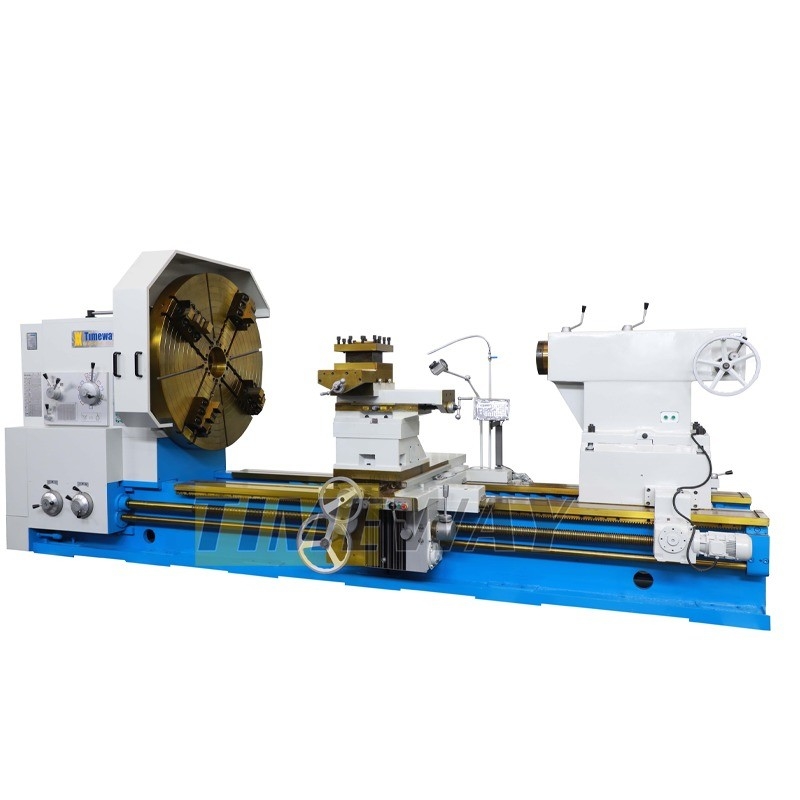

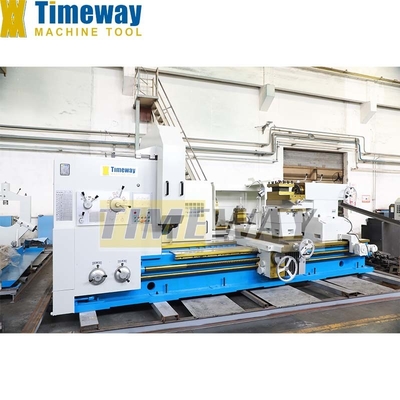

30kW Spindle Motor Power Big Heavy Duty Horizontal Manual Lathe for Turning Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway/timac |
| Model Number: | AL-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 30 | Dimension(L*W*H): | 8120*2058*2200 |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Heavy Duty Horizontal Lathe |
| Machine Type: | Horizontal Normal Lathe | Model: | AL-1250 |
| Color: | Customrized | After-sales Service Provided: | 1 Year (no Human-made Reason) |
| Max. Swing Over Bed: | 1250mm | Distance Between Centers: | 5000mm |
| Spindle Speed: | 3.15-315rpm | Spindle Bore: | 100mm |
| Bed Width: | 1100mm | Condition: | New |
| Spindle Bore(mm): | 100 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | Peru, Russia, South Korea | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Pressure Vessel, Engine |
| Max. Turned Length (mm): | 4800 Mm | ||
Product Description
Products Description
High Precision Heavy Duty Horizontal lathe machine
Product Paramenters
Specifications | Unit | AL-1250 |
Swing over bed | mm | 1250 |
Swing over carriage | mm | 900 |
Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800 |
Span of guideway | mm | 1100 |
Max. weight of workpiece | t | 16 |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Taper hole of spindle | - | metric 140 |
Range of spindle speeds | r/min | foreward: 3.15-315, reversal: 3.5-291 |
No. of spindle speeds | steps | foreward: 21, reversal: 12 |
Longitudinal and cross | kinds | 56 |
Feed per revolution | mm/r | long longitudinal:0.1-12, cross:0.05-6, top tool-post：0.025-3 |
No. and range of metric thread | mm | 1-120 (44) |
No. and range of inch thread | TPI | 28-1/4 (31) |
No. and range of module thread | MP | 0.5-60 (45) |
No. and range of dia. thread | DP | 1/2-56 (38) |
Distance of spindle and tool plane | mm | 53 |
Tool post swing range | ° | ±90 |
Max. travel of cross slide | mm | 740 |
Max. travel of top slide | mm | 360 |
Section of tool shank | mm | 50x50 |
Travel of tool post (per turn of dials) | mm | 0.05 |
Dia. of tailstock quill | mm | 260 |
Travel of tailstock quill | mm | 300 |
Taper hole of tailstock quill | - | Metric 80 |
Main motor power | kw | 30 |
Length | mm | 6120/7120/8120/9120/11120/13120/15120 |
Width | mm | 2058 |
Height | mm | 2200 |
Details of Accessories:
Standard accessories: * 4-jaw heavy duty independent chuck * Steady rest * Dead center * 4-station tool post * Cooling system * Work lamp * Electric moving tailstock * Tools & tool-box * Leveling wedge and bolts * Operation manual (English) | Optional accessories: * Face plate * 2 or 3-axis DRO * Chuck guard * Tool-post guard * Rear splash guard * Roller support * Grinding attachment |
Detailed Images
Spindle box:

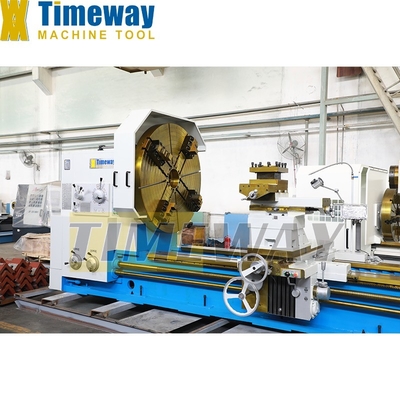

Spindle &4-jaw heavy duty independent chuck:

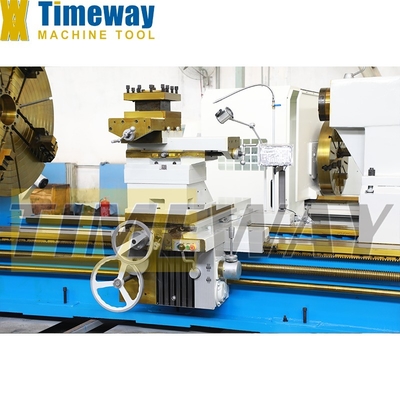

4 Station Tool-post:
Electric moving tailstock:
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
