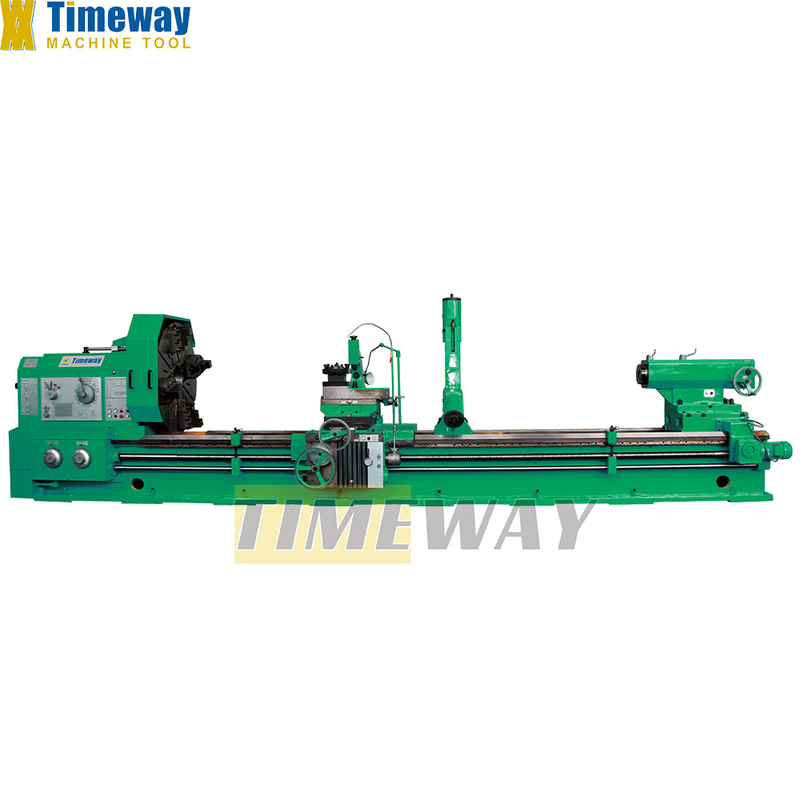

AL-1250C Metal Lathe Machine with 3.15 315 r.p.m Spindle Speed and A2-15 Spindle Nose
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 12000 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 10000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Horizontal Normal Lathe | Max. Swing Over Bed: | 1250mm |
| Max. Swing Over Cross Slide: | 865mm | Max. Turning Length: | 2800/3800/4800/5800/7800/9800/11800/- |
| Bed Width: | 970mm | Loading Capacity: | 10000 (opt: 12000)kg |
| Spindle Nose: | A2-15 | Spindle Bore: | 130mm |
| Spindle Speed Range: | Forward: 3.15-315, Reverse: 3.5-291rpm | X/Z-axis Feed Kinds: | 56kinds |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining | Showroom Location: | Egypt, Turkey, Italy, Germany, Indonesia, India, Mexico, Thailand, Kenya, South Korea, Chile, Bangladesh, Japan, Malaysia, Australia |
| Core Components: | Pump, Motor | Max. Turned Length (mm): | 11800 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
4-jaw heavy duty independent chuck,
Steady rest,
Follow rest,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Electric moving tailstock,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Roller support,
Grinding attachment.
Specification
SPECIFICATION | UNIT | AL-1250C |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 885 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 970 |
Max. cutting force | N | 45000 |
Loading capacity | kg | 10000 (opt: 12000) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21,Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Cross slide travel | mm | 650 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Tool post swivel angle | ° | ±90° |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 220 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- |
Machine width | mm | 1995 |
Machine height | mm | 2175 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
