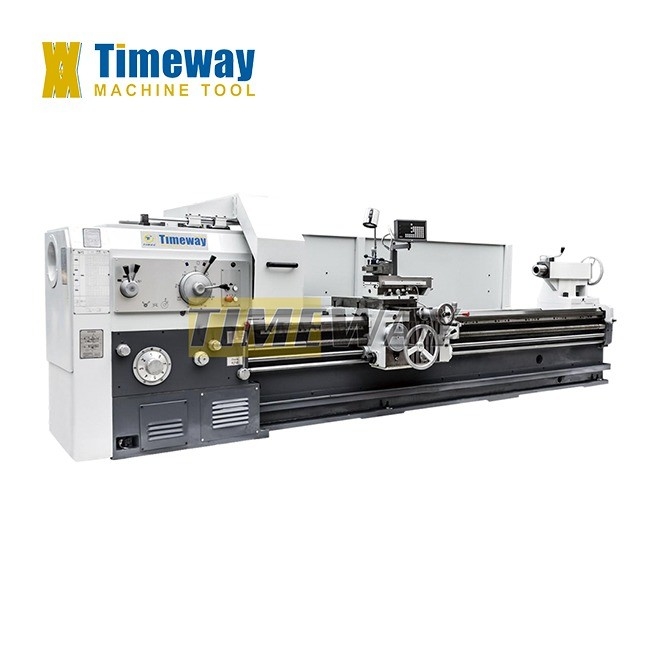

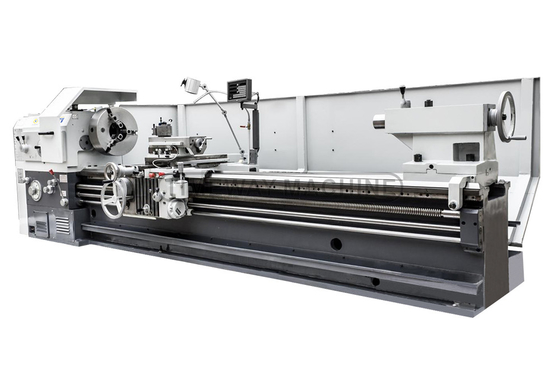

AL-800 The Perfect Combination of Durability and Precision in a Heavy Duty Lathe Machine
Product Details:
| Place of Origin: | China |
| Model Number: | AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,598.00/units 1-2 units |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1350 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Weight (KG): | 2060 KG | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Turning Lathe Machine |
| After-sales Service Provided: | Provided | CNC Or Not: | Nomal |
| Name: | Heavy Duty Horizontal Lathe Machine | Swing Over Bed: | 800mm |
| Max. Turning Length: | 1350mm | Spindle Bore: | 100mm |
| Loading Capacity: | 3000kg | Bed Width: | 600mm |
| Spindle Taper: | Metric 1:20 | Condition: | New |
| Spindle Bore(mm): | 100 | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, South Africa |
| Max. Turned Length (mm): | 1350 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specification | AL-800 | AL-1000 |
Max. swing over bed | 800mm | 800mm |
Max. swing over cross slide | 480mm | 680mm |
Distance between centers | 1500mm | 1500mm |
Max. turning length | 1350mm | 1350mm |
Bed width | 600mm | 600mm |
Loading capacity | 3000kg | 3000kg |
Spindle nose | C11 (opt: C15) | C11 (opt: C15) |
Spindle bore | 100 (opt: 140)mm | 100 (opt: 140)mm |
Spindle taper | Metric 1:20 | Metric 1:20 |
Spindle speed range | Forward: 6-750; Reverse: 10-775rpm | Forward: 6-750; Reverse: 10-775rpm |
Spindle speed step | Forward: 18; Reverse: 6 steps | Forward: 6-750; Reverse: 10-775rpm |
Longitudinal feed range | 0.1-24.32 (64) mm/r | 0.1-24.32 (64) mm/r |
Cross feed range | 0.05-12.16 (64) mm/r | 0.05-12.16 (64) mm/r |
Metric threads range (kinds) | 1-240 (50)mm | 1-240 (50)mm |
Inch threads range (kinds) | 14-1 (26) TPI | 14-1 (26) TPI |
Module threads range (kinds) | 0.5-120 (53) MP | 0.5-120 (53) MP |
Diametrical threads range (kinds) | 28-1 (24) DP | 28-1 (24) DP |
Rapid feed speed | 4000mm/min | 4000mm/min |
Distance spindle center to tool base | 33mm | 33mm |
Tool post swivel angle | ±90° | ±90° |
Cross slide travel | 500mm | 500mm |
Top slide travel | 200mm | 200mm |
Tool section size | 32x32mm | 32x32mm |
Tailstock quill diameter | 100mm | 100mm |
Tailstock quill travel Tailstock quill taper | 250mm MT6 | 250mm MT6 |
Main motor power | 11kw | 11kw |
Machine length | 3670mm | 3670mm |
Machine width | 1730mm | 1730mm |
Machine height | 1450mm | 1450mm |
Main Configuration & Accessories

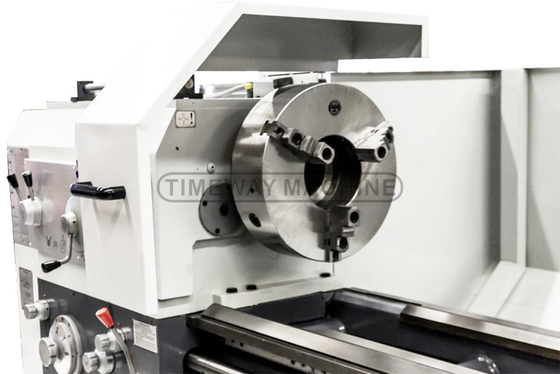

3-jaw chuck, Steady rest (over 2M length),
Follow rest ,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
Optional Configuration & Accessories
4-jaw independent chuck,
Face plate,
2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Quick changing tool post,
Grinding attachment.
Grinding attachment.
