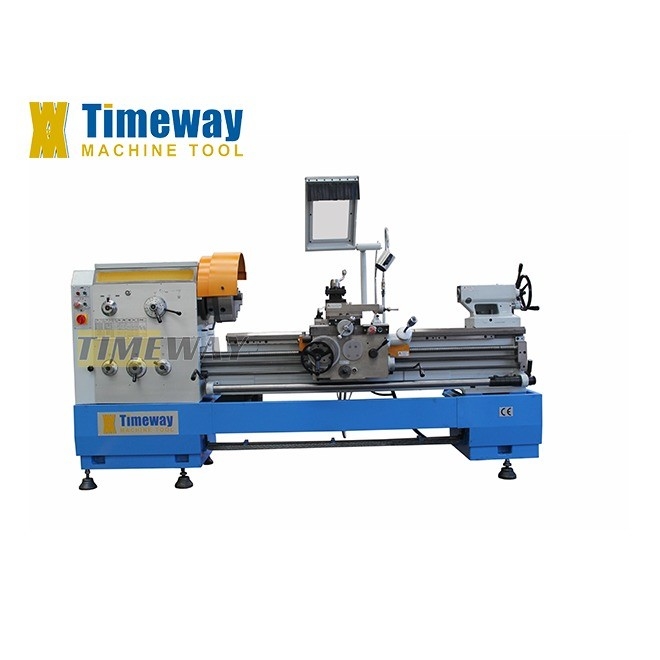

High Precision Horizontal Gap Bed Lathe Turning Machine BL500C for Max. Swing over Bed of 500mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BL500C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1450 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | TURNING CENTER |
| Weight (KG): | 2300 KG | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Gap Bed Lathe Machine |
| Machine Type: | Gab Bed Lathe | After-sales Service Provided: | Online Support |
| Precision: | High Precision | CNC Or Not: | Nomal |
| Max. Swing Over Bed: | 500mm | Max. Turning Length: | 1450mm |
| Max. Length Of Work Piece: | 1450mm | Machine Weight: | 2400kg |
| Center Hight: | 250mm | Condition: | New |
| Spindle Bore(mm): | 105 | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa |
| Max. Turned Length (mm): | 1450 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specifications | BL500C |
Max. swing over bed | 500mm |
Max. swing over cross slide | 300mm |
Max. swing over gap | 710mm |
Gap length | 240mm |
Distance between centers | 1500mm |
Max. turning length | 1450mm |
Spindle bore | Φ105mm |
Spindle taper | Φ113, 1:20 |
Spindle nose | ISO 702/II No.8 |
Spindle speed range (steps) | 36-1600 (12)rpm |
Top slide travel | 145mm |
Cross slide travel | 320mm |
Tool section size | 25x25mm |
X-axis rapid feed speed | 50HZ: 1.9; 60HZ: 2.3m/min |
Z-axis rapid feed speed | 50HZ: 4.5; 60HZ: 5.4m/min |
X-axis feed range | 0.027-1.07 (65)mm/r |
Z-axis feed range | 0.63-2.52 (65)mm/r |
Metric threads range (kinds) | 1-14 (22)mm |
Inch threads range (kinds) | 28-2 (25)TPI |
Module threads range (kinds) | 28-2 (25)MP |
Diametrical threads range (kinds) | 56-4 (24)DP |
Tailstock quill diameter | Φ75mm |
Tailstock quill travel | 150mm |
Tailstock quill taper | MT5 |
Main motor power | 7.5kw |
Rapid feed motor power | 0.3kw |
Coolant pump motor power | 0.12kw |
Machine length | 3132mm |
Machine width | 975mm |
Machine height | 1270mm |
Machine weight | 2300kg |
STANDARD ACCESSORIES:

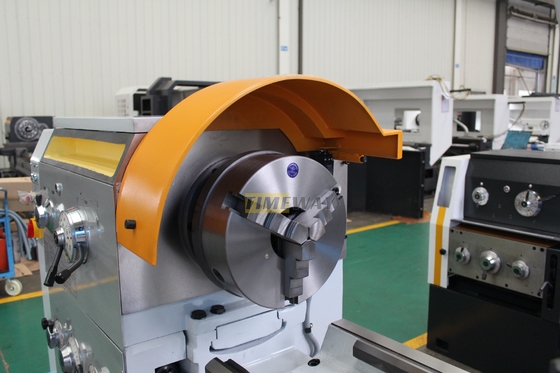

3-jaw chuck,
4-jaw chuck,
Face plate,
Dead center,
Thread chasing dial,
Splash guard,
Oil gun,
Work lamp,
Cooling system,
Cooling system,
Steady rest,
Follow rest, etc.
OPTIONAL ACCESSORIES:
Quick change tool post,
2/3-axis digital readout,
Living center,
Taper turning attachment,

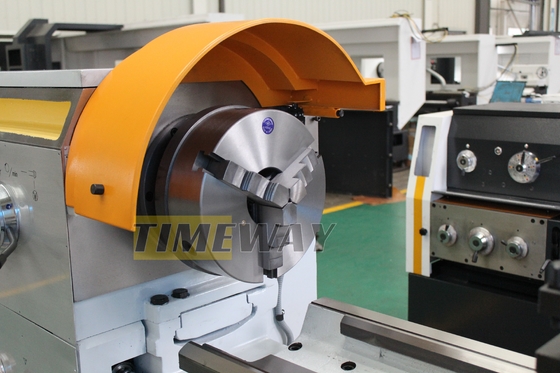

Chuck guard,
Leadscrew guard,
Leadscrew guard,
Tool post guard.
