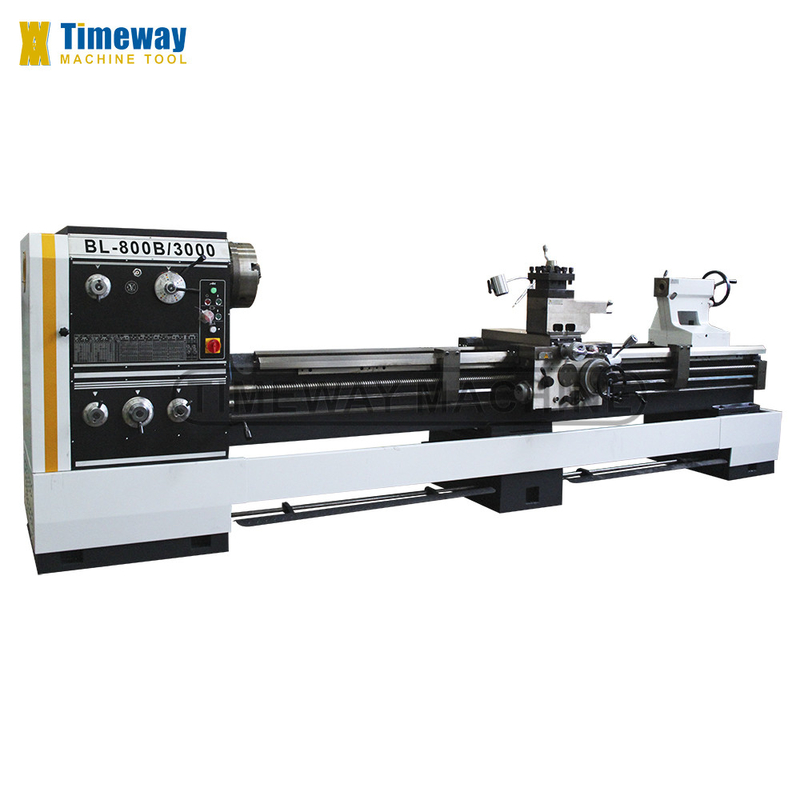

BL-800B Gap Bed Lathe Machine with 2850mm Max. Turned Length and 82mm Spindle Bore
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BL-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $33,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2850 | Range Of Spindle Speed(r.p.m): | 8 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Weight (KG): | 3300 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 800mm | Max. Turning Length: | 1850/2850mm |
| Gap Length: | 240mm | Machine Type: | Gab Bed Lathe |
| Function: | Machining Metal | Name: | Gap Bed Lathe Machine |
| Max. Swing Over Gap: | 1000mm | Spindle Bore: | 82mm |
| Main Motor Power: | 7.5kw | Machine Weight: | 3300/3700kg |
| Condition: | New | Spindle Bore(mm): | 82 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, Algeria, Bangladesh, South Africa, Japan, Malaysia, Australia |
| Core Components: | Gear, Motor, Engine | Max. Turned Length (mm): | 2850 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual.
OPTIONAL ACCESSORIES:
Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION | UNIT | BL-800B |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1000 |
Gap length | mm | 240 |
Distance between centers | mm | 2000/3000 |
Max. turning length | mm | 1850/2850 |
Spindle bore | mm | Φ82 |
Spindle taper | - | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 8-1400 (24) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 320 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) |

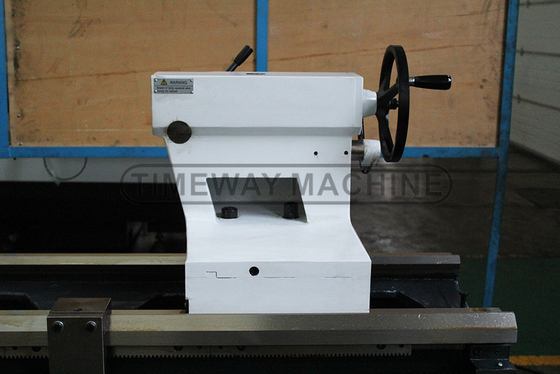

Tailstock quill diameter | mm | Φ90 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1430 |
Machine weight | kg | 3300/3700 |
