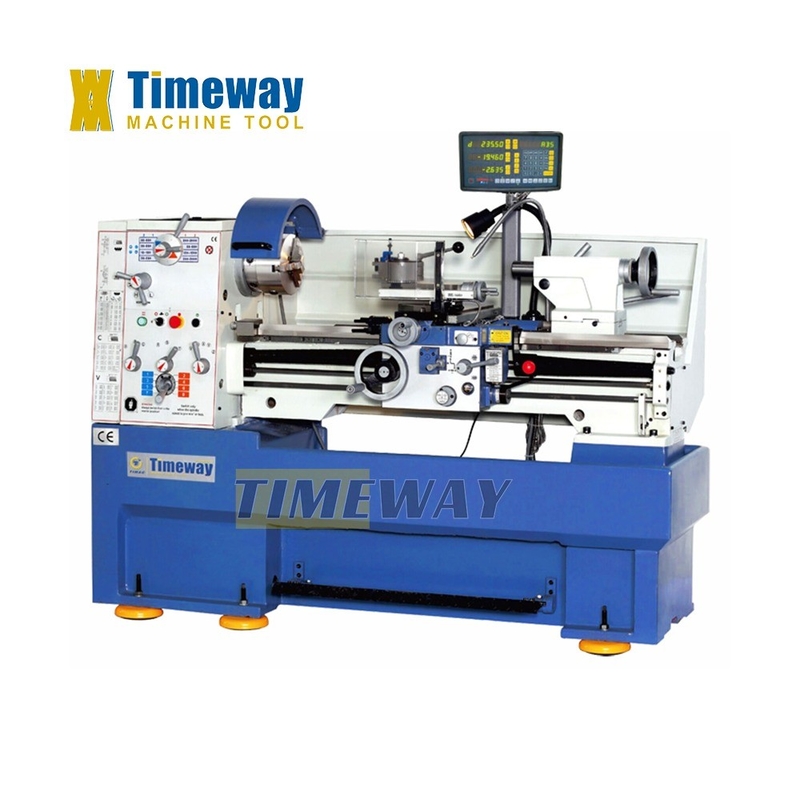

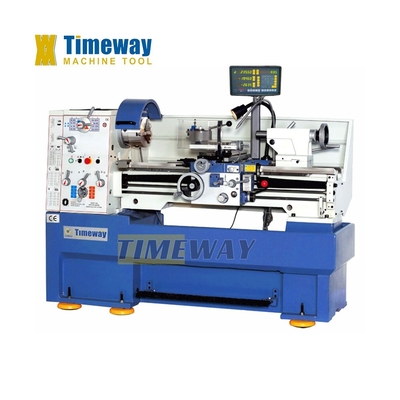

CM400 Horizontal Gap Bed Lathe with 205mm Center Height and 1000mm Max Turning Length
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 45 - 1800 R.p.m |
|---|---|---|---|
| Machining Capacity: | Light Duty | Type: | Horizontal |
| Weight (KG): | 1300 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Gap Bed Lathe Machine |
| Machine Type: | Horizontal Normal Lathe | Precision: | High |
| Cnc Or Not: | No | Center Height: | 205mm |
| Max Turning Length: | 1000mm | Spindle Bore: | 52mm |
| Service Support: | Online | Max. Length Of Piece: | 1000mm |
| Max. Swing Dial: | 410mm | Condition: | New |
| Spindle Bore(mm): | 52 | Showroom Location: | Canada, Italy, Russia |
| Max. Turned Length (mm): | 1000 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specifications | CM400 |
Max. swing over bed | 410mm |
Max. swing over cross slide | 255mm |
Max. swing over gap | 580mm |
Center height | 205mm |
Distance between centers | 1000mm |
Bed width | 250mm |
Tool section size | 20x20mm |
Cross slide travel | 210mm |
Top slide travel | 140mm |
Spindle bore | 52mm |
Spindle taper | D1-6 |
Leadscrew | 4TPI |
Spindle speed range (steps) | 45-1800 (16)rpm |
Metric threads range (kinds) | 0.1-14 (39)mm |
Inch threads range (kinds) | 2-72 (45)TPI |
Module threads range (kinds) | 0.3-3.5 (18)MP |
Diametrical threads range (kinds) | 8-44 (21)DP |
Longitudinal feed range | 0.05-1.7mm/rev |
Longitudinal feed range | 0.025-0.85mm/rev |

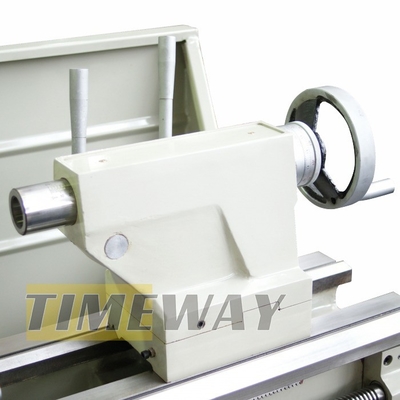

Tailstock quill diameter | 50mm |
Tailstock quill travel | 120mm |
Tailstock quill taper | MT4 |
Main motor power | 3.3kw |
Coolant pump power | 90w |
Packing size (LxWxH) | 2060x900x1640mm |
Net weight | 1300/1550kg |
Gross weight | 1500/1750kg |
STANDARD ACCESSORIES:

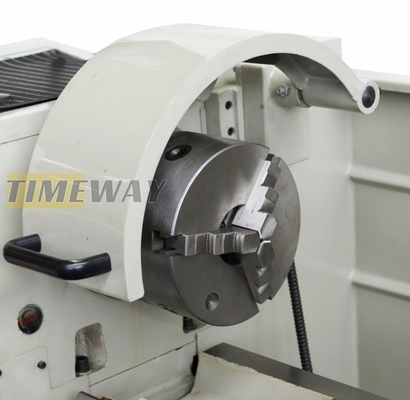

3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
etc.
OPTIONAL ACCESSORIES:
Quick change tool post
2/3-axis digital readout
Living center
2/3-axis digital readout
Living center
etc.
