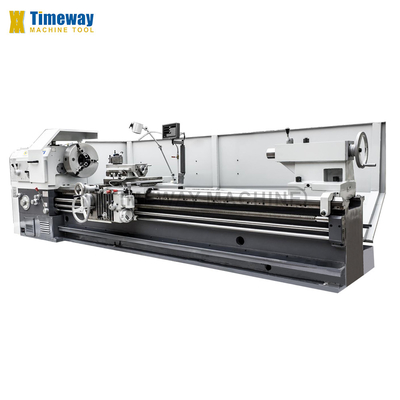

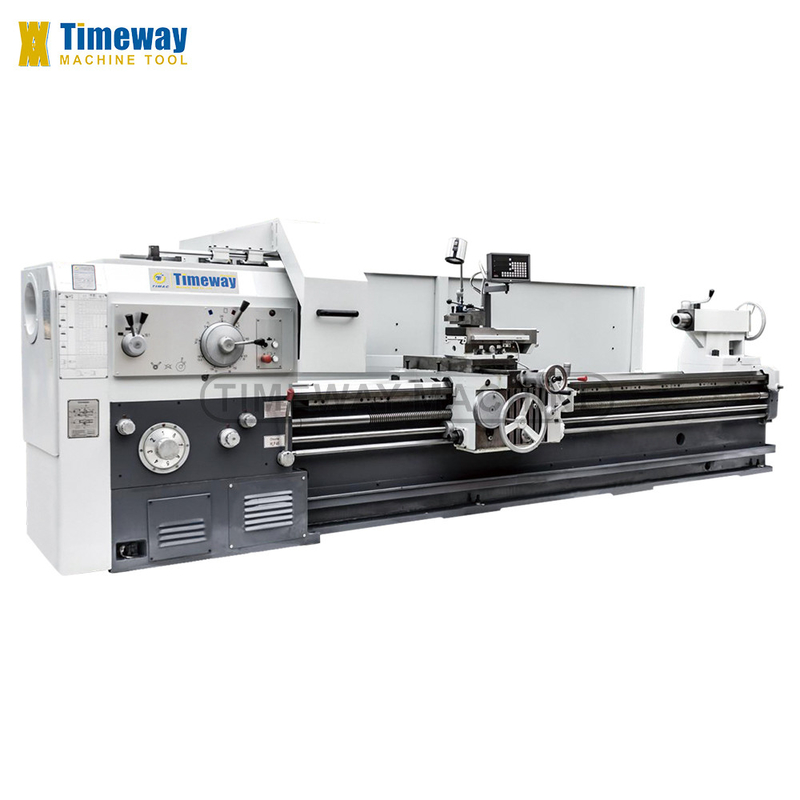

AL-800 Heavy Duty Horizontal Lathe Machine Machining Capacity for CNC Metal Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 5850 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Weight (KG): | 6300 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Horizontal Turning Lathe Machine |
| CNC Or Not: | Normal Lathe Machine | Max. Swing Over Bed: | 800mm |
| Distance Between Centers: | 1500/2000/3000/4000/5000/6000- | Bed Width: | 600mm |
| Loading Capacity: | 3000kg | Machine Type: | Horizontal Normal Lathe |
| Spindle Bore: | 100(opt:140) | Cross Slide Travel: | 500mm |
| Main Moter Power: | 11kw | Condition: | New |
| Applicable Industries: | Building Material Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, South Korea, Bangladesh, Japan, Australia |
| Core Components: | Gear, Motor, Gearbox | Spindle Bore(mm): | 100(opt:140) |
| Max. Turned Length (mm): | 5850 Mm | Year: | 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
1.Heavy Duty Lathe Machine AL-800 2.Big Heavy Duty Horizontal Remote Manual Lathe Machine For Turning Lathe 3.These lathes are suitable for turning inner and outer cylindrical surfaces,coincal surfaces and other rotating parts. 4.It is suitable for stable and strong cutting of large and medium-sized parts such as castings,rigid parts and non-ferrous metals.
Specification
SPECIFICATION | UNIT | AL-800 |
Max.swing over bed | mm | 800 |
Max.swing over cross slide | mm | 480 |
Distance between centers | mm | 1500/2000/3000/4000/5000/6000/- |
Max. turning length | mm | 1350/1850/2850/3850/4850/5850/- |
Bed width | mm | 600 |
Loading capacity | kg | 3000 |
Spindle nose | - | C11 (opt: C15) |
Spindle bore | mm | 100 (opt: 140) |
Spindle taper | - | Metric 1:20 |
Spindle speed range | rpm | Forward:6-750;Reverse:10-775 |
Spindle speed step | steps | Forward:18;Reverse:6 |
Longitudinal feed range | mm/r | 0.1-24.32(64) |
Cross feed range | mm/r | 0.05-12.16(64) |
Metric threads range(kinds) | mm | 1-240(50) |
Inch threads range(kinds) | TPI | 14-1(26) |
Module threads range(kinds) | MP | 0.5-120(53) |
Diametrical threads range(kinds) | DP | 28-1(24) |
Rapid feed speed | mm/min | 4000 |
Distance spindle center to tool base | mm | 33 |
Tool post swivel angle | . | ±90° |
Cross slide travel | mm | 500 |
Top slide travel | mm | 200 |
Top section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | MT6 | |
Main motor power | kw | 11 |
Machine length | mm | 3670/3985/5165/6220/7400/8260/- |
Machine width | mm | 1730 |
Machine height | mm | 1450 |
STANDARD ACCESSORIES:
3-jaw chuck,

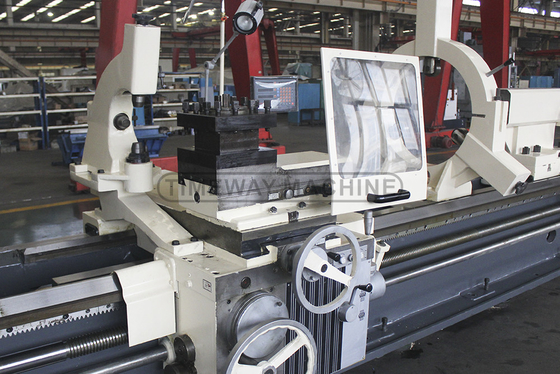

Steady rest (over 2M length),
Follow rest ,
Manual moving tailstock,
Dead center,
4-station tool post,
Cooling system,
Work lamp,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
4-jaw independent chuck,
Face plate,

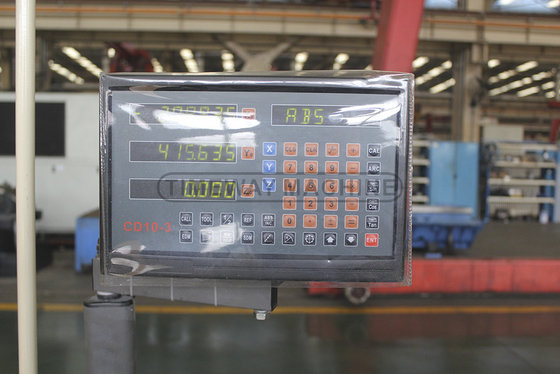

2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,
Quick changing tool post,
Grinding attachment.
Grinding attachment.
