Blue and White Multifunctional Drilling Milling Machine with Normal CNC
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE norms, ISO9001 |
| Model Number: | MD-30B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $2,350.00/sets 5-18 sets |
| Packaging Details: | Plywood case (fumigated) |
| Supply Ability: | 75 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 31.5 | Range Of Spindle Speed(r.p.m): | 100 - 2150 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 75~3200 R.p.m |
| Voltage: | As Per Customer Request | Dimension(L*W*H): | 1140x960x2240mm |
| Power (kW): | 1.5 | Weight (KG): | 360 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Showroom Location: | Canada, United States, Italy, Germany | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Farms, Retail, Energy & Mining |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Motor, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Field Maintenance And Repair Service |
| Drilling Machine: | Bule And White | Max.facing Mill Capacity: | 80mm |
| Diameter Of Vertical Milling: | 22mm | Spindle Trave: | 130mm |
| Diameter Of Column: | 115mm | After Warranty Service: | Video Technical Support |
| Local Service Location: | Canada, United States, Italy, Germany | Port: | Shanghai Port |
Product Description

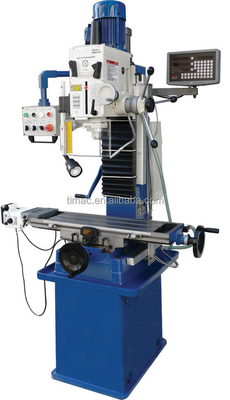

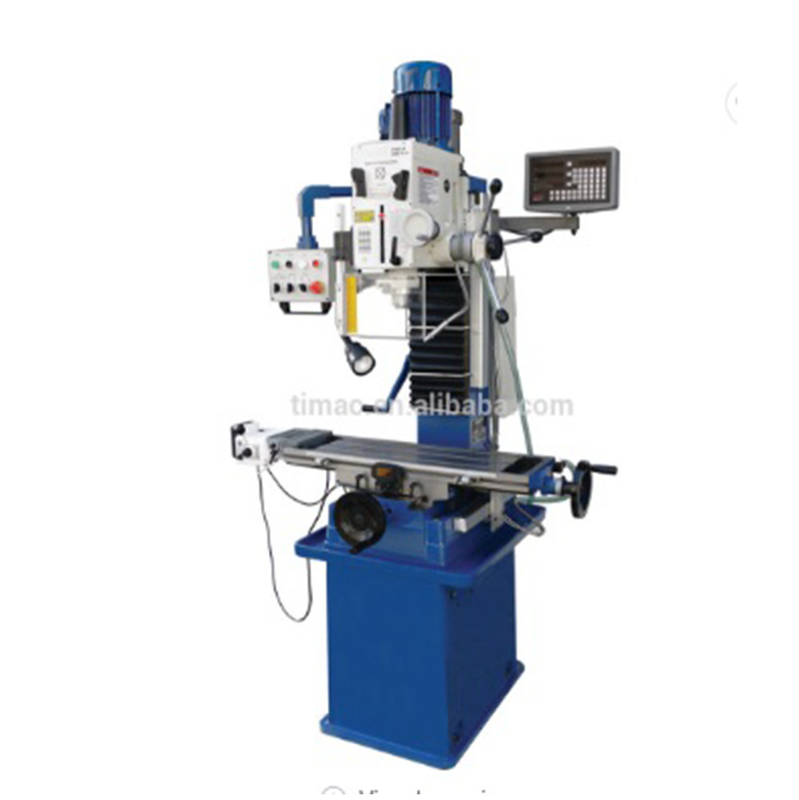

Multifunctional Drilling Milling Machine
Parameters:
| Model | MD-30B | MD-40B |
| Max.drilling capacity | 31.5 mm | 40 mm |
| Max.facing mill capacity | 80 mm | 80 mm |
| Diameter of vertical milling | 22 mm | 22 mm |
| Diameter of column | 115 mm | 115 mm |
| Spindle travel | 130 mm | 120 mm |
| Distance spindle - column | 202 mm | 272.5 mm |
| Distance spindle - table | 745 mm | 745 mm |
| Distance spindle - base | 1245 mm | 1245 mm |
| Spindle taper | MT3 | MT4 |
| Spindle speeds range | 100-2150 rpm | 95-1600 rpm |
| Spindle speeds series | 12 steps | 6 steps |
| Worktable size | 585×190 mm | 585×190 mm |
| Worktable travel | 370×140×515 mm | 370×140×515 mm |
| Main motor | 1500 W | 1100 W |
| G.W/N.W | 360/320 kg | 375/335 kg |
| Packing size (L×W×H) | 860×780×1910 mm | 720×740×1910 mm |
Parameters:
| Model | D-16G | D-20G | D-32G |
| Max. drilling capacity | 16 mm | 20 mm | 31.75 mm |
| Max. tapping capacity (Iron/steel) | M12/M10 | M20/M16 | M24/M20 |
| Column diameter | 50 mm | 50 mm | 100 mm |
| Spindle travel | 100 mm | 135 mm | 150 mm |
| Distance from spindle to column | 193 mm | 260 mm | 265 mm |
| Distance from spindle to worktable | 330 mm | 366 mm | 390 mm |
| Distance from spindle to base | 613 mm | 678 mm | 745 mm |
| Spindle taper | MT2 | MT3 | MT3 |
| Sindle speed range | 5 steps, 320~2730 rpm | 5 steps, 290~2150 rpm | 5 steps, 280~1875 rpm |
| Table size | 265×285 mm | 300×320 mm | 380×400 mm |
| Base Size: | 360×480 mm | 376×566 mm | 645×470 mm |
| Motor power | 0.55 kw | 1.1 kw | 1.5 kw |
| Approx.net weight | 145kg | 170kg | 225kg |
| Packing size (L×W×H) | 780×450×1260mm | 970×490×1390mm | 1000×600×1500mm |

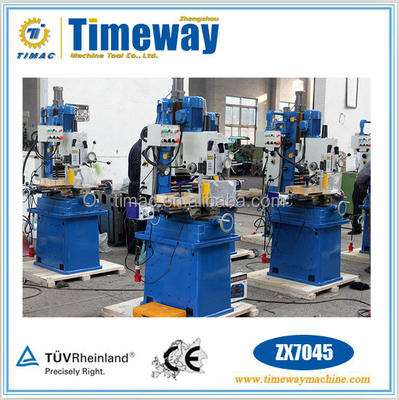

| Model | ZX7045 |
| Max.drilling capacity (Iron/steel) | 40/31.5 mm |
| Max.mill capacity (face/end) | 80/32 mm |
| Spindle taper | MT3/MT4/R8 |
| Worktable size | 800×240 mm |
| Worktable travelX/Y | 570/230 mm |
| Head tilt left right | 90° |
| Spindle travel | 130 mm |
| Spindle nose to worktable | 470 mm |
| Spindle center to column | 285 mm |
| Spindle speeds range | 12 steps:75-3200r/min |
| Motor power | 0.85/1.1kw |
| N.W/G.W | 300/350KG |
| Packing size (L×W×H) | 1140×960×2240mm |
| Container loaded | 12sets/20'GP |
| Model | MD-16A | MD-25A | MD-30A | MD-45A |
| Max.drilling capacity | 16 mm | 25 mm | 31.5 mm | 45 mm |
| Max.facing mill capacity | 40 mm | 63mm | 80 mm | 80 mm |
| Diameter of vertical milling | 10 mm | 13 mm | 22 mm | 28 mm |
| Spindle travel | 80 mm | 110 mm | 130 mm | 120 mm |
| Distance spindle - column | 180 mm | 240 mm | 202 mm | 260 mm |
| Distance spindle - table | 360 mm | 510 mm | 460 mm | 475 mm |
| Spindle taper | MT2 | MT3 | MT3 | MT4 |
| Spindle speeds range | 320-3300 rpm | 290-2150 rpm | 100-2150 rpm | 95-1600 rpm |
| Spindle speeds series | 12 steps | 5 steps | 12 steps | 6 steps |
| Worktable size | 420×152 mm | 555×195 mm | 730×210 mm | 730×210 mm |
| Worktable travel | 230×140 mm | 240×140 mm | 450×170 mm | 450×170 mm |
| Main motor | 550 W | 750 W | 1500 W | 1500 W |
| G.W/N.W | 100/75 kg | 190/160 kg | 285/250 kg | 318/278 kg |
| Packing size (L×W×H) | 650×580×770 mm | 870×670×1020 mm | 860×740×1160 mm | 860×740×1160 mm |
Package: Plywood case (fumigated)
Packing size:
One piece in one case: 700*1150*2150MM N.W./G.W.: 800/860KG
Container loaded: 16sets / 20'GP
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
