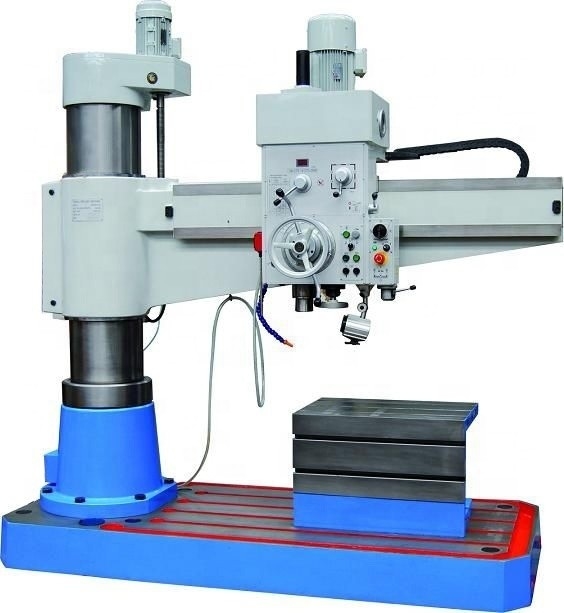

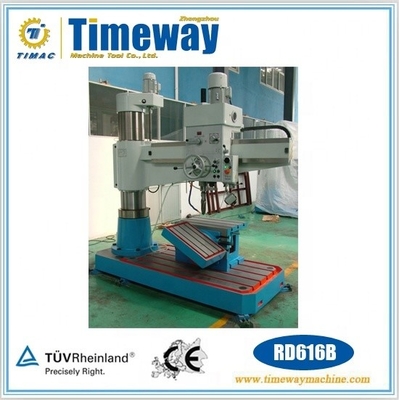

Home Stepless Variable Speed Arm Radial Drill RD616B Unbeatable Performance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO9001; CE |
| Model Number: | RD616B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,600.00/sets 1-2 sets |
| Packaging Details: | Veneer box or wooden case |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Radial Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 62 | Range Of Spindle Speed(r.p.m): | 38 - 275 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 38 ~ 275;275~2000 R.p.m |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2490x1050x2600mm |
| Power (kW): | 4 | Weight (KG): | 3800 KG |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Showroom Location: | Egypt, Pakistan, India, Mexico, Russia, Spain, Morocco, Kenya, Argentina, South Korea | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Energy & Mining |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine | Product Name: | Stepless Variable Speed Arm Radial Drill |
| Max. Drilling Diameter: | 62mm | Name: | Radial Arm Drilling Machine |
| Machine Type: | Radial Drilling Machine | Color: | Customizable |
| Key Selling Point: | Competitive Price | After Warranty Service: | Online Support |
| Keyword: | Radial Drilling Machine | Port: | Shanghai Port |
Product Description
Product Description
feature：

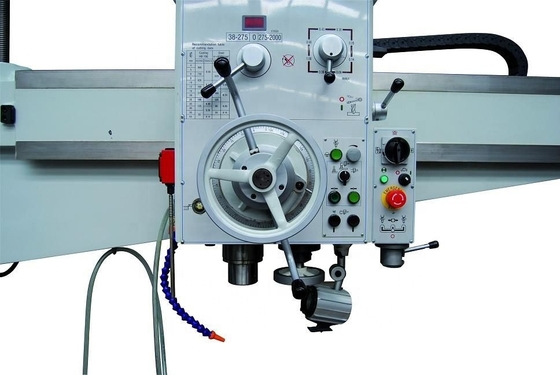

1. Frequency conversion transducer spindle stepless digital readout for the display of speed.
2. Strength spindle, with limiting protection for limiting position.
3. Electrical box and coolant button is on the right of spindle box.
4. Hydraulic pressure clamp, interlock of rocker arm clamping and up down movement, clamping of spindle and spindle box could be simultaneous or separated.
5. Trochoid thin oil lubrication.
6. With safety protection device.
7. At the bottom of lead screw and guide surface can be add protection device.
8. Importable electrical components with CE standard.

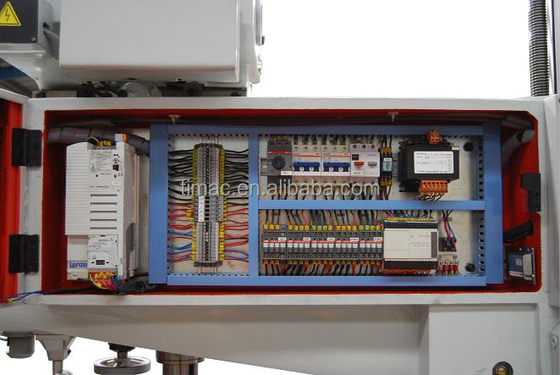

9. Electric box control by PLC.
10. Length worktable, supply inclined worktable and quick change collet as optional accessories.
2. Strength spindle, with limiting protection for limiting position.
3. Electrical box and coolant button is on the right of spindle box.
4. Hydraulic pressure clamp, interlock of rocker arm clamping and up down movement, clamping of spindle and spindle box could be simultaneous or separated.
5. Trochoid thin oil lubrication.
6. With safety protection device.
7. At the bottom of lead screw and guide surface can be add protection device.
8. Importable electrical components with CE standard.
9. Electric box control by PLC.
10. Length worktable, supply inclined worktable and quick change collet as optional accessories.
Specification
Specification | RD616B |
Max. drilling diameter (No.45 steel) | 62 |
Max. drilling diameter (HT200 cast iron) | 72 |
Distance between column center line to the spindle center line | 350~1600 |
Dimension of column | 350 |
Steps of spindle speed | step-less |
Range of the spindle feed rate | 0.06~1.00 |
Speed of the arm up and down | 1.2 |
Spindle moving distance of each dial revolution | 122 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
