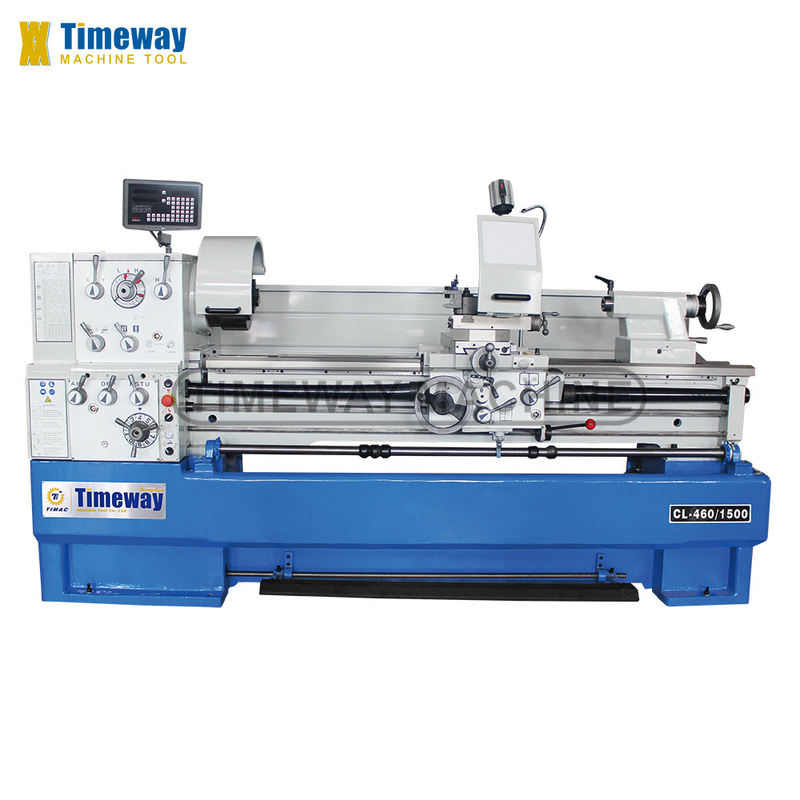

CL-460 Gap Bed Lathe Machine and Improved Range of Spindle Speed r.p.m 25 2000 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CL-460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 5.5 | Weight (KG): | 1645 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 460mm | Max. Swing Over Cross Slide: | 270mm |
| Gap Length: | 165mm | Machine Type: | Gab Bed Lathe |
| Cross Slide Travel: | 285mm | Tool Section Size: | 25x25mm |
| Max. Swing Over Gap: | 690mm | Spindle Bore: | 58mm |
| Main Motor Power: | 5.5kw | Processing Types: | Metal Processing Machine |
| Condition: | New | Spindle Bore(mm): | 58 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, Algeria, Bangladesh, South Africa, Japan, Malaysia, Australia |
| Core Components: | Gear, Motor, Engine | Max. Turned Length (mm): | 2000 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

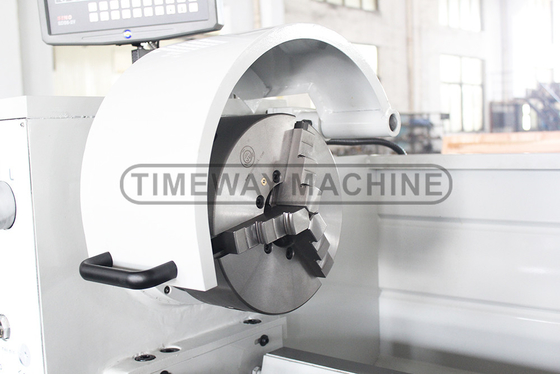

3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system

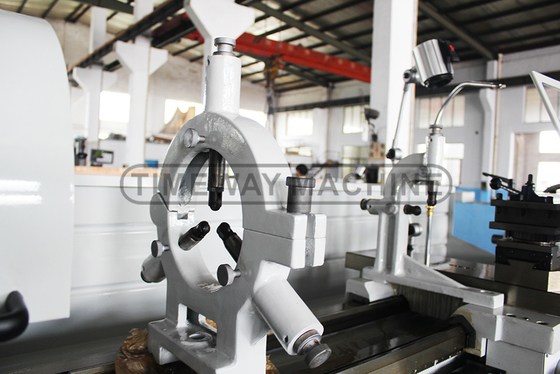

Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual(English)
OPTIONAL ACCESSORIES:

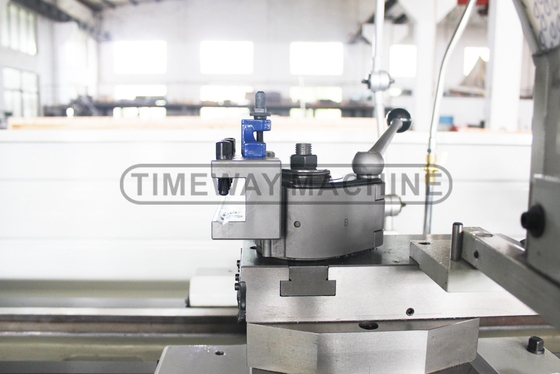

Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION | UNIT | CL-460 |
Max. swing over bed | mm | 460 |
Max. swing over cross slide | mm | 270 |
Max. swing over gap | mm | 690 |
Distance between centers | mm | 1000/1500/ 2000 |
Gap length | mm | 165 |
Bed width | mm | 300 |
Spindle nose | - | D1-6 |
Spindle bore | mm | 58 |
Spindle taper | - | MT6 |
Spindle speed range (steps) | rpm | 25-2000 (12) |
Top slide travel | mm | 128 |
Cross slide travel | mm | 285 |
Tool section size | mm | 25x25 |
Leadscrew | - | 40x4T.P.I or pitch 6mm |
Longitudinal feed range | mm/rev | 0.031-1.7 (42) |
Cross feed range | mm/rev | 0.014-0.784 (42) |
Metric threads range (kinds) | mm | 0.1-14 (41) |
Inch threads range (kinds) | TPI | 2-112 (60) |
Diametrical threads range (kinds) | DP | 4-112 (50) |
Module threads range (kinds) | MP | 0.1-7 (34) |

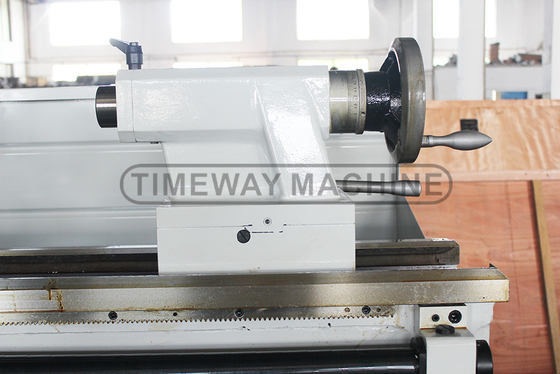

Tailstock quill diameter | mm | Φ60 |
Tailstock quill travel | mm | 130 |
Tailstock quill taper | - | MT4 |
Main motor power | kw | 5.5 |
Coolant pump motor power | kw | 0.1 |
Machine dimensions (LxWxH) | mm | 220/275/325x108x137 |
Packing size (LxWxH) | mm | 225/280/330x112x162 |
Net weight | kg | 1645/1810/1965 |
Gross weight | kg | 1910/2115/2295 |
