2.2kW Power D-50A Pedestal Drilling Machine Vertical Drilling Milling Type for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE norms, ISO9001 |
| Model Number: | D-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,200.00/sets 1-2 sets |
| Packaging Details: | Plywood case (fumigated) |
| Supply Ability: | 75 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 52 - 1400 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Per Customer Request |
| Dimension(L*W*H): | 940x680x2405mm | Power (kW): | 2.2 |
| Weight (KG): | 620 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Viet Nam, Brazil, Indonesia, Romania, South Africa |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Drilling Machine Color: | Bule And White |
| Power: | 2.2kw | Weight: | 675KG |
| Max. Drilling Dia: | 50mm | Machine Type: | Vertical Drilling Milling |
| Warranty Period: | 1 Year | Port: | Shanghai Port |
Product Description
Product Description
D-50A Pedestal Drilling Machine for Metal
Parameter
| Model | D-30A | D-32A | D-35A | D-40A | D-50A |
| Max. Drilling dia.(steel) & taping diameter(mm) | Φ30/M20 | Φ32/M20 | Φ35/M22 | Φ40/M24 | Φ50/M27 |
| Max. travel of spindle (mm) | 135 | 150 | 160 | 190 | 200 |
| Throat depth (mm) | 260 | 300 | 320 | 340 | 360 |
| Max. distance from spindle nose to surface of worktable (mm) | 670/685 | 800 | 585 | 665 | 590 |
| Max. distance from spindle nose to surface of base worktable (mm) | 1150/1165 | 1225 | 1140 | 1195 | 1175 |
| Max. travel of spindle box (mm) | 180 | 270 | |||
| Max. travel of worktable bracket/Manual(Mechanical) (mm) | 605/500 | 550 | 545 | 570(450) | 530(410) |
| Swivel angle of worktalbe | ±45° | ±45° | ±45° | ±45° | |
| Spindle taper bore (MT) | 3 | 4 | 4 | 4 | 4 |
| Spindle speed steps | 12 | 12 | 12 | 12 | 12 |
| Spindle speed range (r/min) | 125-3030 | 78-2500 | 125-3030 | 76-2065 | 52-1400 |
| Spindle feed steps | 3 | 3 | 3 | 4 | |
| Spindle feed range (mm/r) | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.4 | |
| Dimension of worktable(mm) | 420x350 | 190 | 500x420 | 520x440 | 580-460 |
| Effective workig area of worktable | 335x340 | 365x415 | 400x360 | 405x395 | 445x435 |
| Diameter of column (mm) | Φ110 | Φ120 | Φ140 | Φ160 | |
| Power of motor (kw) | 0.85/1.1 | 1/1.3/1.7 | 1/1.2 | 1.5 | 2.2 |
| Machine dimension (mm) | 700x465x2060 | 780x505x1910 | 835/510x1730 | 849x545x2290 | 940x680x2405 |
| Packing dimension (mm) | 870x550x2220 | 880x620x1980 | 940x570x2120 | 1000x650x2220 | 1170x680x2300 |
| Net weight/gross weight (kg) | 340/380 | 420/465 | 430/475 | 565/615 | 620/675 |

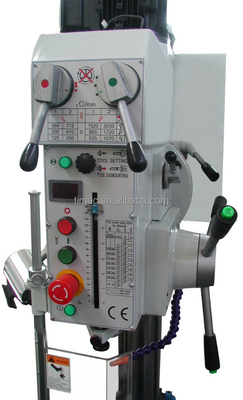

Detailed Images
Z5030A, Z5040A, Z5050A sereis Vertical Drilling Machine

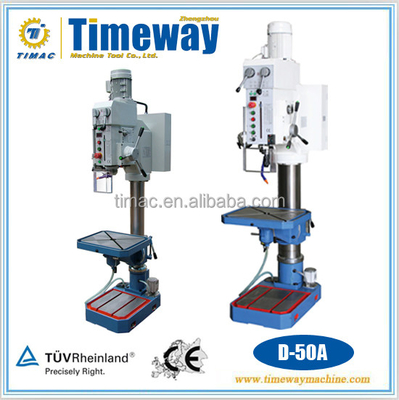

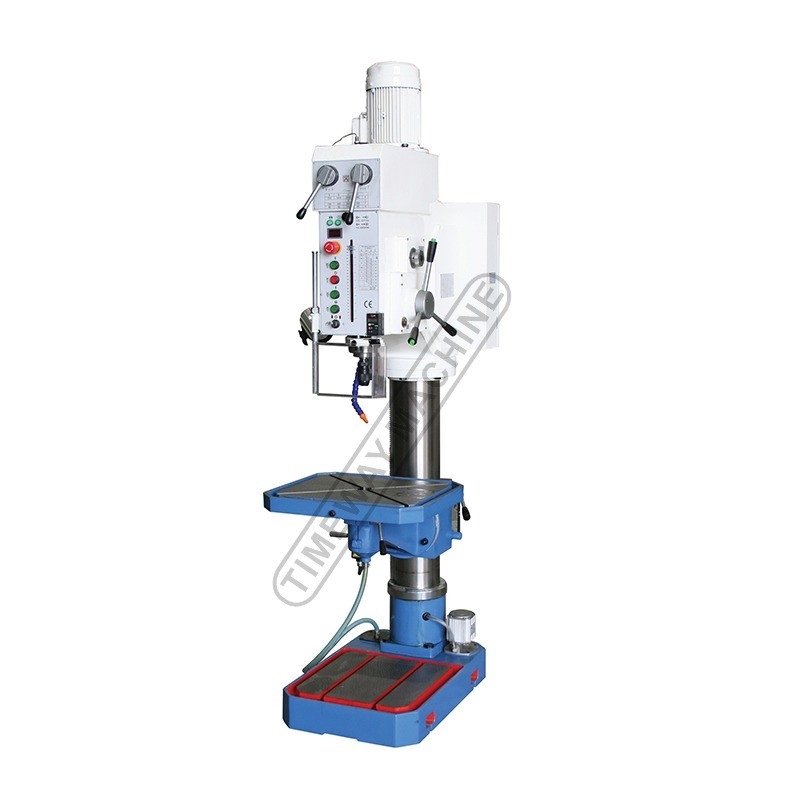

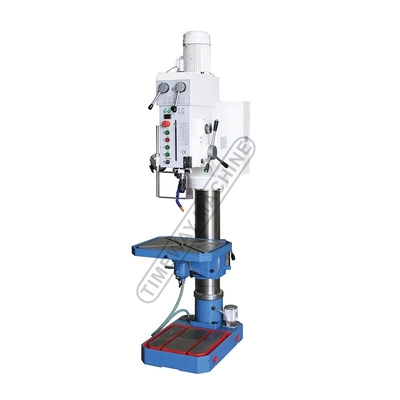

D-30A, D-40A, D-50A sereis Vertical Drilling Machine
Packaging & Shipping
Package: Plywood case (fumigated)
Packing size:
One piece in one case: 700*1150*2150MM N.W./G.W.: 800/860KG
Container loaded: 16sets / 20'GP
