80mm Diameter Large-type Hydraulic Rotary Arm Drilling Press with 450mm Spindle Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | RD310, RD313, RD410, RD413, RD516, RD620, RD825 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case and Wooden pallet |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Type: | Pillar Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 35 | Range Of Spindle Speed(r.p.m): | 300 - 1000 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 0.04-3.2mm/r(16steps) |
| Voltage: | 380V/50Hz | Dimension(L*W*H): | 1805x800x232mm |
| Power (kW): | 3 Kw | Weight (KG): | 1600 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Showroom Location: | Egypt, Italy, France, Peru, Indonesia, India, Mexico, Thailand, South Africa | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gear, Motor, Engine, Other | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Customizable | Max. Drilling Diameter: | 80mm |
| Distance Of Spindle Center To Column: | 500-2500mm | Spindle Speed Range: | 16-1250rpm(16steps) |
| Spindle Travel: | 450mm | Clamping Type: | Hydraulic |
| Worktable Size: | 800x1000mm | Power: | 7.5kw |
| Port: | China Port | ||
Product Description

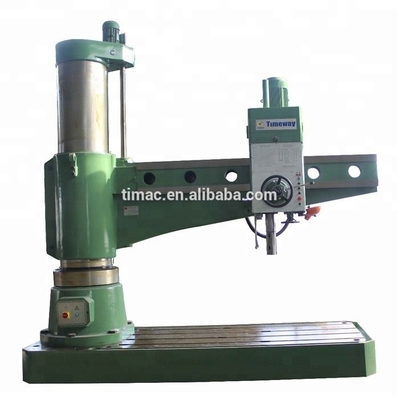

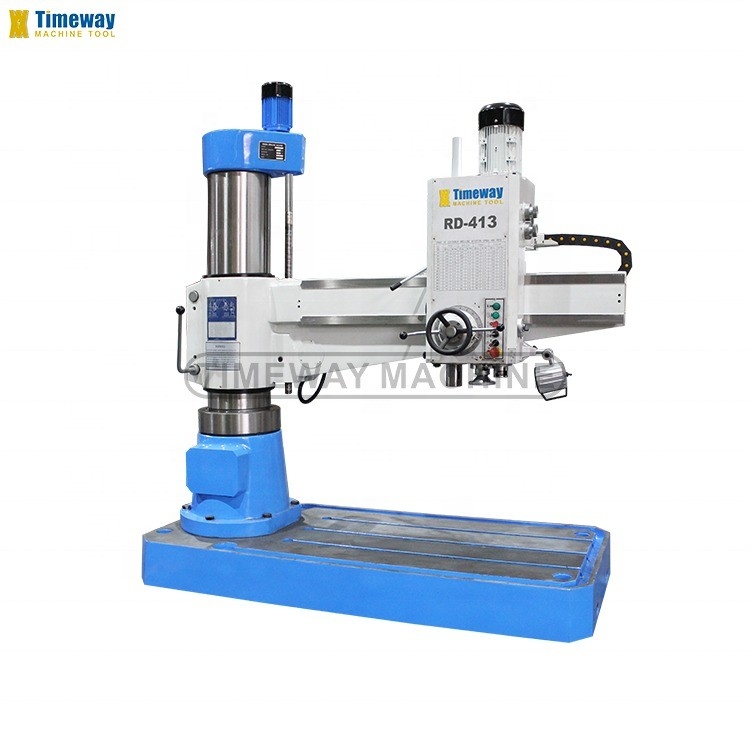

Large-type Hydraulic Rotary Arm Drilling Machine
RD310 RD313 RD410 RD413 RD516 RD620 RD825
Features:
- Base, column, boom and gear head are made of premium high-quality cast.
- Major design features include a large column and a highly torsion-resistant boom.
- Boom height adjustment via a powerful motorized drive and vertical spindle.
- The boom lifting gears run in an oil-bath for maximum reliability and minimum wear.
- Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset.
- Swivel axis and travel axis features extremely smooth operation to make the operator's everyday production work easier.
- The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
- All gear parts are lubricated reliably via oil pump.
- The main spindle runs on precision bearings and features an automatic spindle brake.
Technical Parameter:
Medium and Small Type Driller
| Specification | Unit | RD310 | RD313 | RD410 | RD413 |
| Max. drilling diameter | mm | 35 | 35 | 40 | 40 |
| Distance from spindle center to column surface | mm | 300-1000 | 300-1300 | 300-1000 | 300-1300 |
| Distance from spindle nose to worktable surface | mm | 250-1020 | 320-1020 | 215-965 | 215-965 |
| Spindle box horizontal travel | mm | 700 | 1000 | 700 | 1000 |
| Radial ram rotary angle | deg | ±180° | ±180° | ±180° | ±180° |
| Spindle taper | - | Morse No.4 | Morse No.4 | Morse No.4 | Morse No.4 |
| Spindle speed range and grades | rpm | 50-2350(12 steps) | 50-2350(12 steps) | 50-1035(9 steps) | 50-1035(9 steps) |
| Feed speed and grades | mm/r | 0.13-0.54(4 steps) | 0.13-0.54(4 steps) | 0.13-0.54(4 steps) | 0.13-0.54(4 steps) |
| Spindle travel | mm | 250 | 250 | 250 | 250 |
| Main motor power | kw | 3 | 3 | 3 | 3 |
| Net weight | kg | 1600 | 1780 | 1600 | 1780 |
| Floor area | mm | 1050x650 | 1350x650 | 1050x650 | 1350x650 |
| Worktable size | mm | 450x450 | 450x450 | 450x450 | 450x450 |
| Overall dimension | mm | 1805x800x2320 | 2105x800x2320 | 1805x800x2320 | 2105x800x2320 |
Large Type Driller
| Specification | Unit | RD516 | RD620 | RD825 |
| Max. drilling diameter | mm | 50 | 63 | 80 |
| Distance from spindle center to column surface | mm | 350-1600 | 450-2000 | 500-2500 |
| Distance from spindle nose to worktable surface | mm | 320-1220 | 400-1600 | 550-2000 |
| Spindle box horizontal travel | mm | 1250 | 1600 | 2000 |
| Radial ram rotary angle | deg | ±180° | ±180° | ±180° |
| Spindle taper | - | Morse No.5 | Morse No.5 | Morse No.6 |
| Spindle speed range and grades | rpm | 25-2000(16steps) | 20-1600(16steps) | 16-1250(16steps) |
| Feed speed and grades | mm/r | 0.04-3.2(16steps) | 0.04-3.2(16steps) | 0.04-3.2(16steps) |
| Spindle travel | mm | 315 | 400 | 450 |
| Main motor power | kw | 4 | 5.5 | 7.5 |
| Net weight | kg | 3500 | 7000 | 11000 |
| Floor area | mm | 1590x840 | 2000x1080 | 2450x1160 |
| Worktable size | mm | 500x630 | 625x800 | 800x1000 |
| Overall dimension | mm | 2500x1070x2840 | 3080x1250x3400 | 3730x1400x4025 |
Standard Configuration:
• Hydraulic pre-selection speed and feed change mechanisms
• Hydraulic clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Box shape worktable
• Halogen work light
• Coolant system
• Tool & tool box
• Operator manual in English
• 380V-50Hz-3Ph or as client’s request.

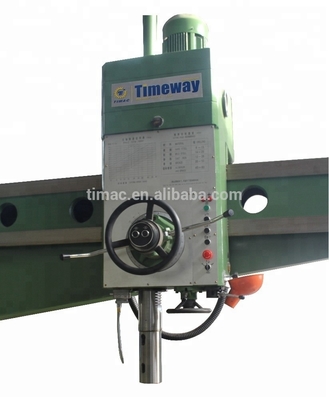

Spindle Box and Hardened-ground Guideway Spindle and Feed Parts
High Rigidity Column Total Switch and Cooling Switch
Radial Drill Press (RD310) Ready Packaging with Fixed Angle Iron(RD516)
