860 KG Geared Head Pedestal Drills Vertical Drilling Machine Z5050A Bule and White
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE norms, ISO9001 |
| Model Number: | Z5050A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets >=1 sets |
| Packaging Details: | Plywood case (fumigated) |
| Supply Ability: | 75 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 3 - 344 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 42-1865 R.p.m |
| Voltage: | As Per Customer Request | Dimension(L*W*H): | 700x1150x2150MM |
| Weight (KG): | 860 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Egypt, Viet Nam, Brazil, Indonesia, Mexico, Spain, Argentina, South Korea, Sri Lanka |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Energy & Mining | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Gear, Motor, Other |
| Drilling Machine: | Bule And White | After-sales Service Provided: | Online Support |
| After Warranty Service: | Online Support | Machine Type: | Vertical |
| Max. Drilling Capacity: | 50mm | Warranty Period: | 1 Year |
| Port: | Qingdao Port | ||
Product Description

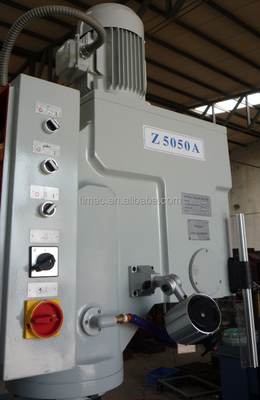

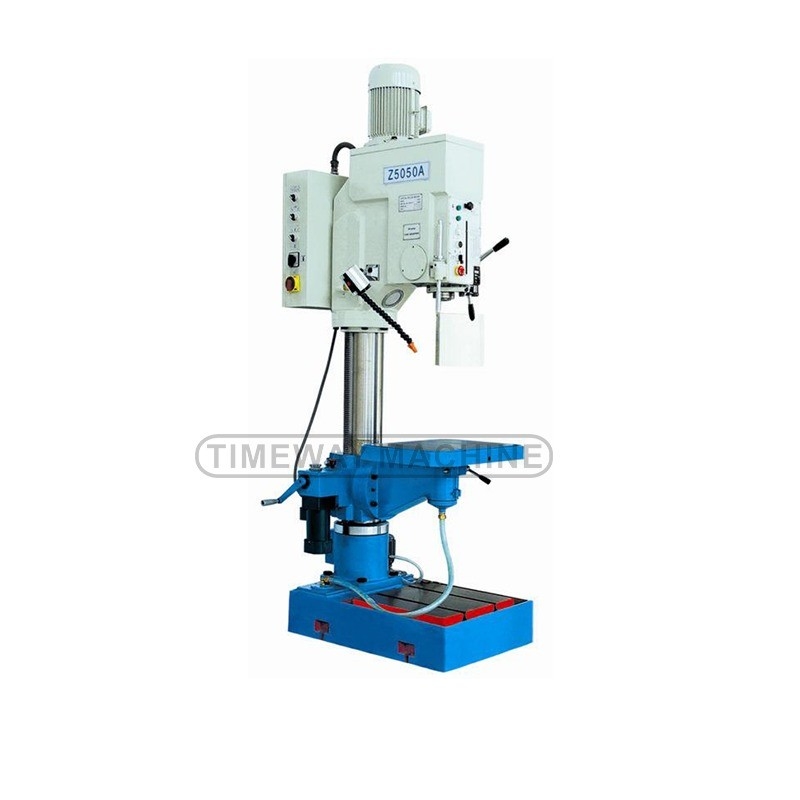

Geared Head Pedestal Drills Vertical Drilling Machine Z5050A
Parameter
| Specification | Unit | Z5030A | Z5032V | Z5035A | Z5040A | Z5050A |
| Max. drilling capacity | mm | 30 | 32 | 35 | 40 | 50 |
| Max. tapping capacity | mm | M18 | - | M20 | M24 | M24 |
| Distance from spindle - column | mm | 315 | 290 | 330 | 360 | 360 |
| Distance from spindle - worktable | mm | 520 | 790 | 610 | 600 | 600 |
| Distance from spindle nose to base surface | mm | 1080 | 1300 | 1150 | 1215 | 1205 |
| Max. travel of spindle | mm | 135 | 115 | 150 | 180 | 180 |
| Max. adjustment of worktable and table rest | mm | 480 | 790 | 540 | 560 | 525 |
| Swivel of table and table rest | ° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Spindle bore taper |
| Morse 3 | Morse 3 | Morse 4 | Morse 4 | Morse 4 |
| Spindle speed steps |
| 12steps | 2steps, variable in each step | 12steps | 12steps | 12steps |
| Spindle speed range | rpm | 70-2600 | Low: 55-350, High 350-2300 | 12steps, 70-2600 | 42-2050 | 42-1865 |
| Spindle feed steps |
| 3 | - | 3 | 4 | 4 |
| Spindle feed range | mm/r | 0.1, 0.2, 0.3 | - | 0.1, 0.2, 0.3 | 0.07,0.15,0.26,0.4 | 0.07,0.15,0.26,0.4 |
| Column diameter | mm | 125 | 120 | 140 | 160 | 170 |
| Effective working area of table(LxW) | mm | 450x450 | 420x420 | 500x550 | 580x450 | 580x450 |
| Effective working ares of base(LxW) | mm | 690x480 | 600x450 | 760x500 | 820x550 | 820x550 |
| Dimension of T-slot of table and base | mm | 2-14, 2-16 | 2-12 | 2-14, 2-16 | 2-14, 2-16 | 2-14, 2-16 |
| 3-Phase two speed AC motor | kw | 1.1/1.5 | 1.1 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
| 3-Phase two speed AC motor speed | rpm | 960/1450 | 1440 | 960/1450 | 960/1450 | 960/1450 |
| 3-Phase pump motor | kw | 0.09 | 0.06 | 0.09 | 0.09 | 0.09 |
| Packing size | mm | 650x1050x1950 | 900x590x1980 | 700x1150x2150 | 700x1150x2150 | 700x1150x2150 |
| Net/Gross weight | kg | 440/500 | 310/360 | 670/730 | 740/800 | 800/860 |

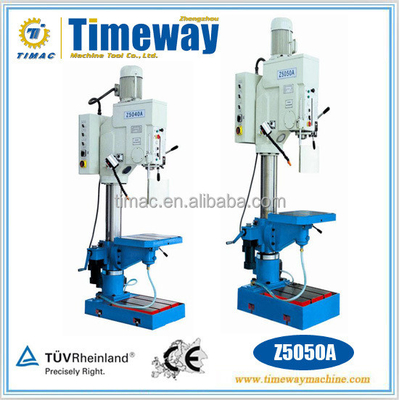

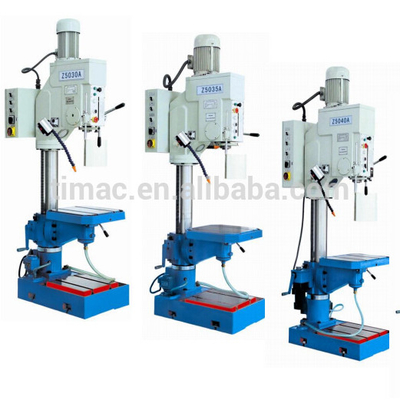

Z5030A, Z5040A, Z5050A sereis Vertical Drilling Machine
D-30A, D-40A, D-50A sereis Vertical Drilling Machine
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
