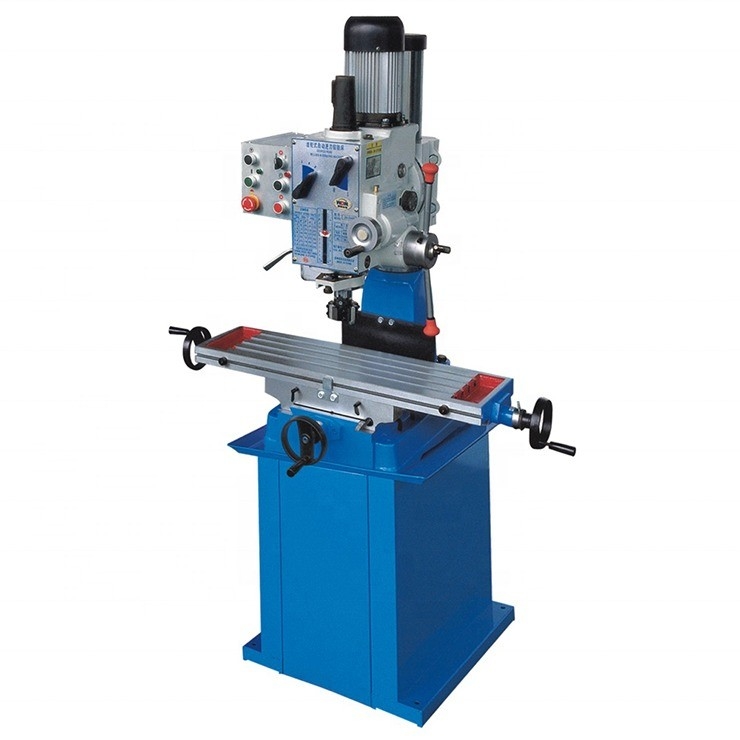

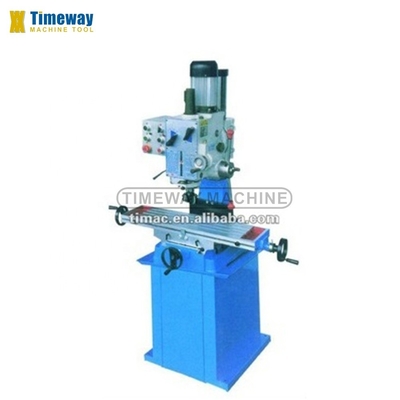

TRAPANO Series Auto-feeding Drilling Milling Machine with Max. Drilling Dia. of 40mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO9001 |
| Model Number: | TRAPANO-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets >=1 sets |
| Packaging Details: | wooden case(can be fumigated) or plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 40 | Range Of Spindle Speed(r.p.m): | 50 - 1250 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 50-1250r.p.m |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 75mm*73mm*146mm |
| Power (kW): | 0.75 | Weight (KG): | 360 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Canada, United States, Italy, Germany | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Farms, Retail, Energy & Mining |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Motor | Type: | Drilling Milling Machine |
| Diameter Of Column: | 115mm | Spindle Travel: | 110mm |
| Max.distance From Spindle Nose To Base: | 800mm | Spindle Taper: | MT4/R8 |
| Range Of Spindle Speeds: | 50-1250 | Series Of Spindle Speed: | 6 R/min |
| Spindle Feeds: | 0.12, 0.18, 0.25 Mm/r | Dimension Of Table Surface: | 730x210/820x240mm |
| Port: | China Port | ||
Product Description
Products Description

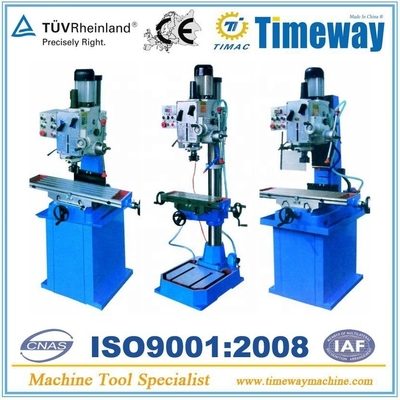

Model | Unit | TRAPANO-1 | TRAPANO-2 | TRAPANO-3 | TRAPANO-4 | TRAPANO-5 | ||||
Max. drilling capacity | mm | 40 | 45 | |||||||
Width of facing milling | mm | / | 80 | / | 80 | 80 | ||||
Diameter of facing milling | mm | / | 22 | / | 22 | 28 | ||||
Diameter of column | mm | 115 | 115 | 115 | 115 | / | ||||
Spindle travel | mm | 110 | ||||||||
Distance from spindle axis to column generaing line | mm | 261.5 | 260 | |||||||
Max.distance from spindle nose to table | mm | / | 450 | 745 | 475 | |||||
Max.distance from spindle nose to base | mm | 800 | / | 1245 | / | |||||
Spindle taper | MT4/R8 | MT4 | ||||||||
Range of spindle speeds | 50-1250 | |||||||||
Series of spindle speed | r/min | 6 | ||||||||
Spindle feeds | mm/r | 0.12, 0.18, 0.25 | ||||||||
Dimension of table surface | mm | / | 730×210/820×240 | 540×470 | 585×190 | 730×210/820×240 | ||||
Table travel | mm | / | 450×170/540×170 | 515 | 370×140×515 | 450×170/540×170 | ||||
Dimension of base | mm | 690×520 | 605×400 | 690×520 | 605×558 | |||||
Overall height | mm | 1450 | 1100 | 1760 | 1810 | 1100 | ||||
Main motor | w | 750/1100 | ||||||||
Coolant motor | w | 40 | ||||||||
G.W/N.W | kg | 360/320 | 370/330 | 390/350 | 385/345 | |||||
Packing dimension(L×W×H) | cm | 75×73×146 | 86×74×116/ 97×77×116 | 72×74×191 | 86×74×116/ 97×77×116 | |||||
Packing size (LxWxH) | mm | 285/340/190x220 | 425/545x225x220 | 543/583/796/996x225x210 | 340/400x240x220 | 460/560x250x220 | ||||
