Max. Drilling Dia. mm 63 Vertical Knee-Type Box-Column Drilling Machine Design
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | SD-63B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case and Wooden pallet |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 63 | Range Of Spindle Speed(r.p.m): | 40 - 570 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 0.1-0.78mm/r(6steps) |
| Voltage: | 380V/50Hz | Dimension(L*W*H): | 1452x965x2787mm |
| Weight (KG): | 2500 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Canada, United Kingdom, United States, France, Germany |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customizable |
| Max. Drilling Diameter: | 63mm | Worktable Size: | 650x550mm |
| Spindle Speed: | 40-570rpm(9steps) | Spindle Taper: | Morse No.5 |
| Spindle Travel: | 250mm | Spindle Box Vertical Travel: | 250mm |
| Max. Spindle Torque: | 800N.m | Port: | China Port |
Product Description

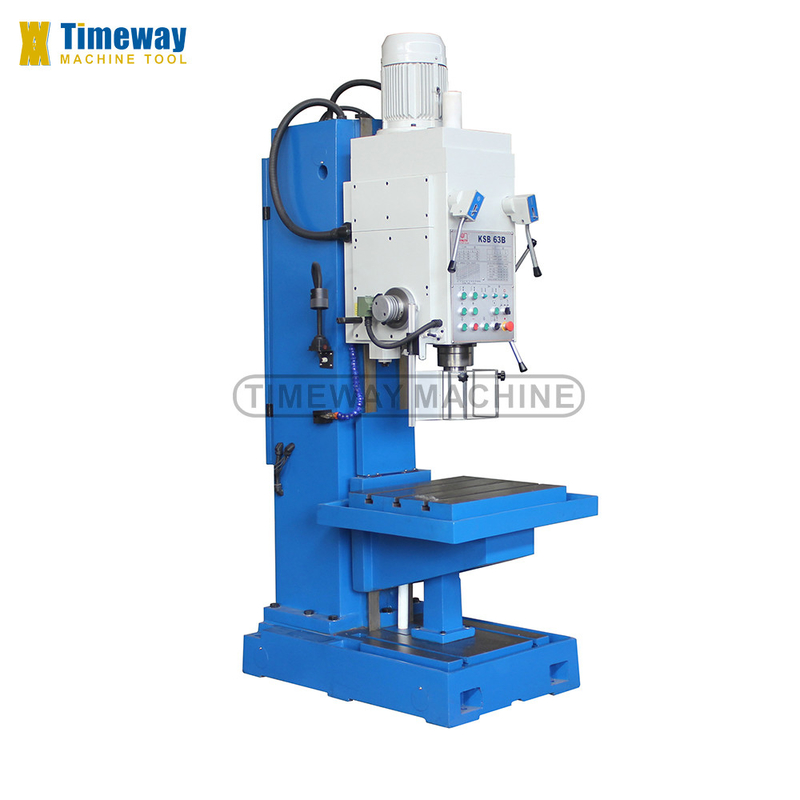

Vertical Knee-Type Box-Column Drilling Machine

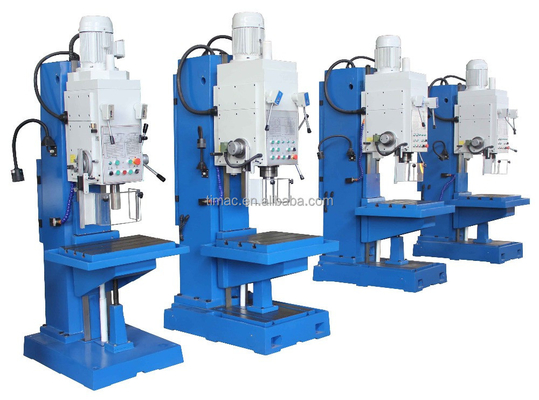

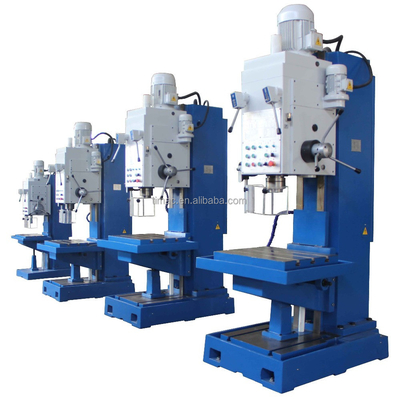

SD63B SD-80C SD-100
Features:
- Superior rigidity for demanding drilling, reaming and thread-cutting tasks.
- Box-column design provides high load capacity, and is torsion proof and rigid.
- Table and drill head can be moved individually for an optimum machining height.
- 9-steps feed and speed gears, with oil-bath lubrication.
- High torque across the entire speed range.
- Thread cutting unit automatically reverses upon reaching the preset depth.
Technical Parameter:
| Specification | Unit | SD-63B | SD-80C | SD-100 |
| Drilling capacity in steel | mm | 63 | 80 | 100 |
| Feed force | N | 30000 | 30000 | 40000 |
| Torque | N.m | 800 | 800 | 1150 |
| Spindle taper | - | Morse No.5 | Morse No.6 | Morse No.6 |
| Distance from spindle center to column surface | mm | 375 | 375 | 480 |
| Spindle quill travel | mm | 250 | 250 | 310 |
| Drilling head travel | mm | 250 | 250 | 300 |
| Spindle speed range | rpm | 40-570(9steps) | 40-570(9steps) | 26-320(6steps) |
| Spindle feeds | mm/r | 0.1-0.78(6steps) | 0.1-0.78(6steps) | 0.096-0.717(6steps) |
| Vertical table travel | mm | 300 | 300 | 300 |
| Table setup area | mm | 650x550 | 650x550 | 760x650 |
| T-slot width/number | mm | - | - | - |
| Max. distance from spindle nose to table | mm | 800 | 800 | 850 |
| Main motor power | kw | 5.5 | 5.5 | 7.5 |
| Coolant pump | W | 90 | 90 | 90 |
| Flow rate | L/min | 25 | 25 | 25 |
| Overall dimension(LxWxH) | mm | 1452x965x2787 | 1452x965x2787 | 1465x970x3170 |
| Machine weight | kg | 2500 | 2500 | 3500 |
Standard Configuration:
- Coolant system
- Tapping feature
- Halogen work lamp
- Operating tools
- Operator manual
Optional Configuration:
- Universal facing and boring head
- Coolant concentrate
- Accessory set MT4(8pieces)
- Reducing sleeve MT5/4
|

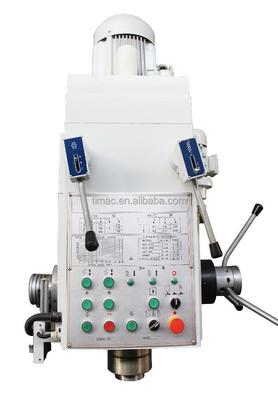

Drilling Box and Manual Speed Exchange

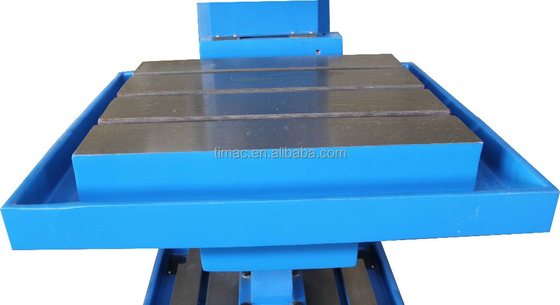

Hardened and Precision-Ground Worktable |

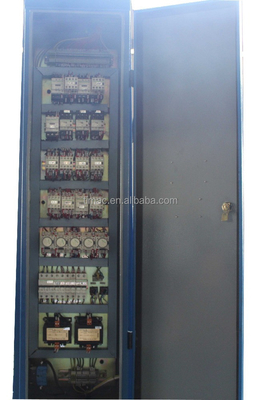

Electric Cabinet and All Schneider Electric Parts |
