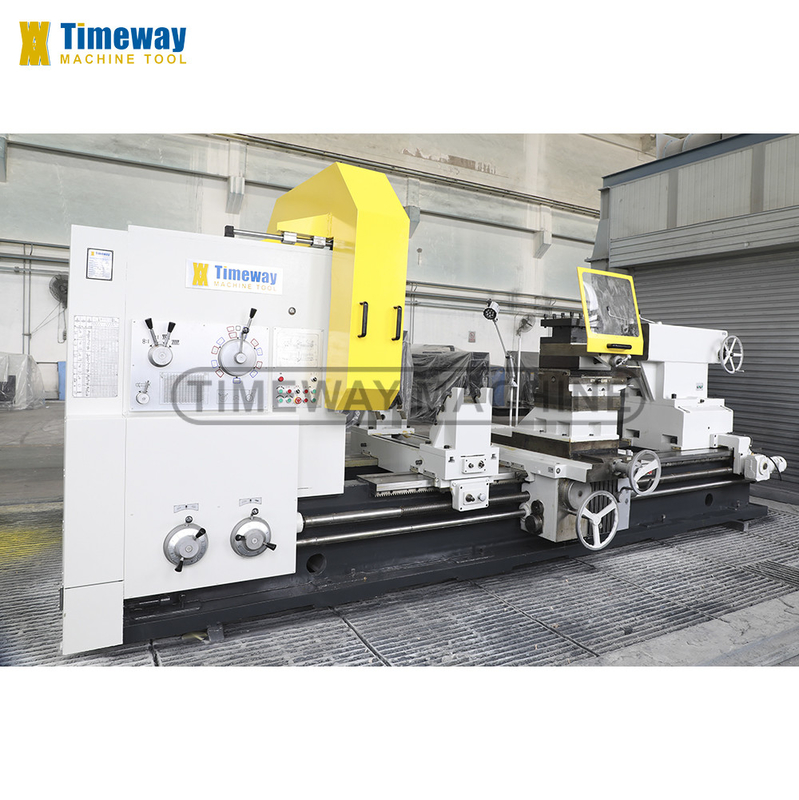

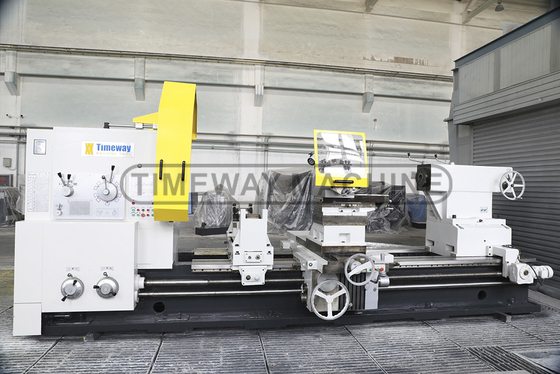

High Rigidity Heavy Duty Horizontal Lathe Machine AL-2000 for Industrial Metal Turning
Product Details:
| Place of Origin: | China |
| Model Number: | AL2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2800 | Range Of Spindle Speed(r.p.m): | 0 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 1100 |
| Type: | Horizontal | Spindle Motor Power(kW): | 30 |
| Dimension(L*W*H): | 6120 2430 2580 | Weight (KG): | 16666 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Manual Metal Lathe Machine | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Keyword: | Universal Metal Lathe | Function: | Machining Metal |
| After-sales Service Provided: | Online Services | Product Type: | Horizontal Universal Lathe |
| Precision: | High Precision High Accuracy | CNC Or Not: | Nomal |
| Processing: | Metal Workpiece | Distance Between Centers: | 3000mm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Max. Turned Length (mm): | 2800 Mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specifications | unit | AL2000 |
Max. swing over bed | mm | 2000 |
Max. swing over cross slide | mm | 1650 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Loading capacity | tons | 16(opt: 20) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Distance from spindle center to tool base | mm | 53 |
Tool post swivel angle | 掳 | ±90° |
Cross slide travel | mm | 900 |
Top slide travel | mm | 360 |
Tool section size | mm | 50x50 |
Tool post feed per gar | mm | 0.05 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 30 |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
Machine width | mm | 2430 |
Machine height | mm | 2580 |
STANDARD ACCESSORIES:

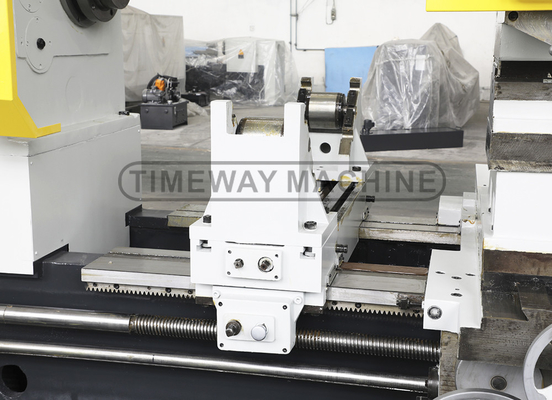

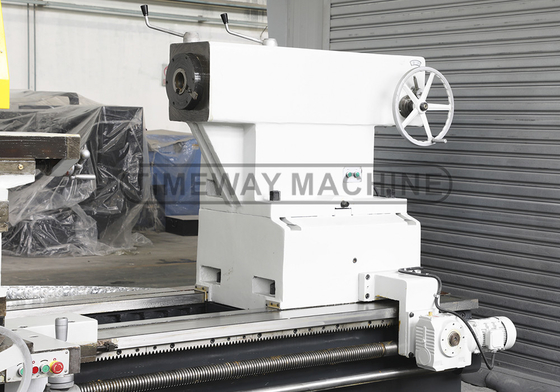

4-jaw heavy duty independent chuck, Steady rest, Dead center, 4-station tool post, Cooling system, Work lamp, Electric moving tailstock
OPTIONAL ACCESSORIES:
Face plate, 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Roller support, Grinding attachment.
