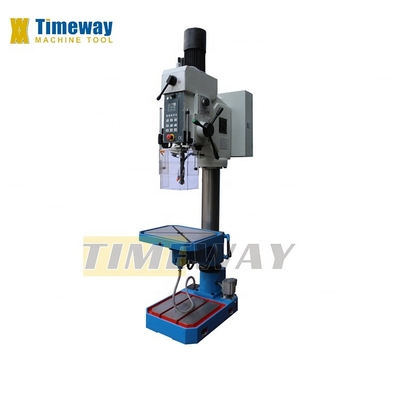

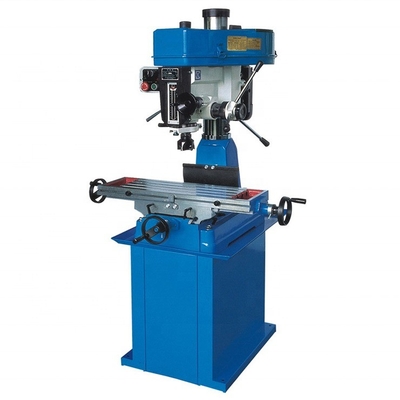

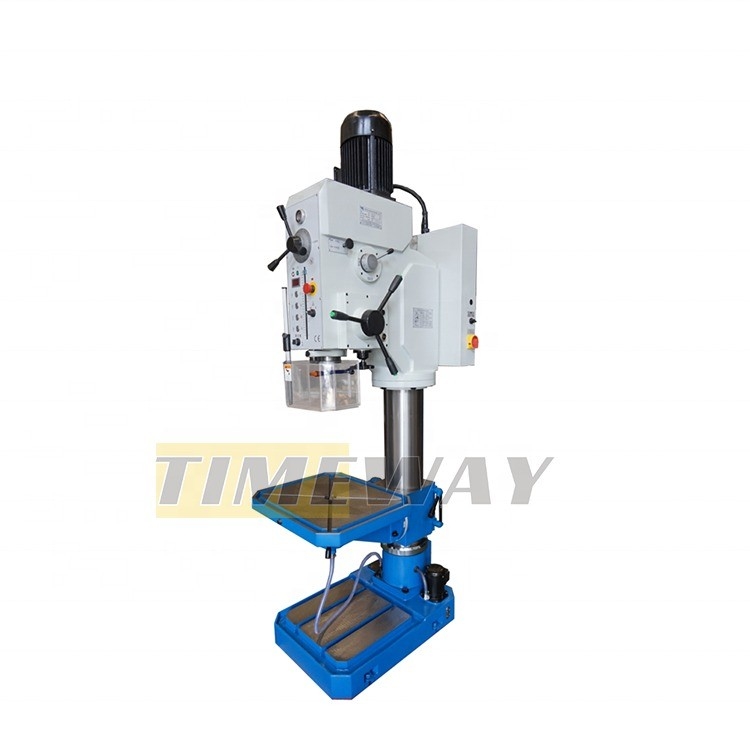

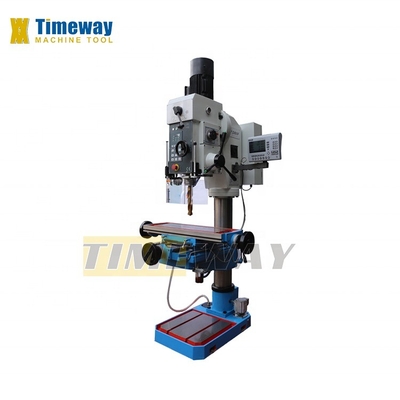

40mm Max. Face Mill Capacity High Productivity Drilling Milling Machine for 16mm Max. Drilling Dia
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | Z-30A, Z-35A, Z-40A, Z-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,030.00/sets 1-4 sets |
| Packaging Details: | Plywood case (fumigated) |
| Supply Ability: | 75 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 16 | Range Of Spindle Speed(r.p.m): | 320 - 2870 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Per Customer Request |
| Dimension(L*W*H): | 88x62x26.5cm | Power (kW): | 0.55 |
| Weight (KG): | 80 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Canada, United States, Italy, Germany |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Other |
| Max.drilling Capacity: | 25mm | Max.face Mill Capacity: | 40mm |
| Diameter Of Vertical Milling: | 10mm | Spindle Travel: | 80mm |
| Max.distance Spindle Nose To Table: | 360mm | Spindle Taper: | MT2 |
| Spindle Speeds Range: | 320~2870r/min | Spindle Speeds Series: | 12 |
| Dimension Of Worktable Surface: | 420*152mm | Table Travel: | 230*120mm |
Product Description
Products Description
Features:
Reinforced column,enlarged worktable, stable and sturdy Standard accessories: drill chuck, taper shank, lower cutter iron, wrench, pull rod Special accessories: milling chuck, angle vise, eye shield, rack
Reinforced column,enlarged worktable, stable and sturdy Standard accessories: drill chuck, taper shank, lower cutter iron, wrench, pull rod Special accessories: milling chuck, angle vise, eye shield, rack
Specification | Unit | Z-30A | Z-35A | Z-40A | Z-50A |
Max. drilling capacity | mm | 30 | 35 | 40 | 50 |
Max. tapping capacity | mm | M18 | M20 | M24 | M24 |
Distance from spindle axis to generating line of column | mm | 315 | 330 | 360 | 360 |
Max. distance from spindle nose to worktable surface | mm | 520 | 610 | 600 | 600 |
Max. distance from spindle nose to base surface | mm | 1080 | 1150 | 1215 | 1205 |
Max. travel of spindle | mm | 135 | 150 | 180 | 180 |
Max. adjustment of worktable and table rest | mm | 480 | 540 | 560 | 525 |
Swivel of table and table rest | ° | ±45° | ±45° | ±45° | ±45° |
Spindle bore taper | - | Morse 3 | Morse 4 | Morse 4 | Morse 4 |
Spindle speed steps | steps | 12 | 12 | 12 | 12 |
Spindle speed range | rpm | 70-2600 | 70-2600 | 42-2050 | 42-1865 |
Spindle feed steps | steps | 3 | 3 | 4 | 4 |
Spindle feed range | mm/r | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.07,0.15,0.26,0.4 | 0.07,0.15,0.26,0.4 |
Column diameter | mm | 125 | 140 | 160 | 170 |
Effective working area of table(LxW) | mm | 450x450 | 500x550 | 580x450 | 580x450 |
Effective working ares of base(LxW) | mm | 690x480 | 760x500 | 820x550 | 820x550 |
Dimension of T-slot of table and base | mm | 2-14, 2-16 | 2-14, 2-16 | 2-14, 2-16 | 2-14, 2-16 |
Main motor power (double-speed) | kw | 1.1/1.5 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
Main motor speed | rpm | 960/1450 | 960/1450 | 960/1450 | 960/1450 |
Pump motor | kw | 0.09 | 0.09 | 0.09 | 0.09 |
Packing size | mm | 650x1050x1950 | 700x1150x2150 | 700x1150x2150 | 700x1150x2150 |
Net/Gross weight | kg | 440/500 | 670/730 | 740/800 | 800/860 |
