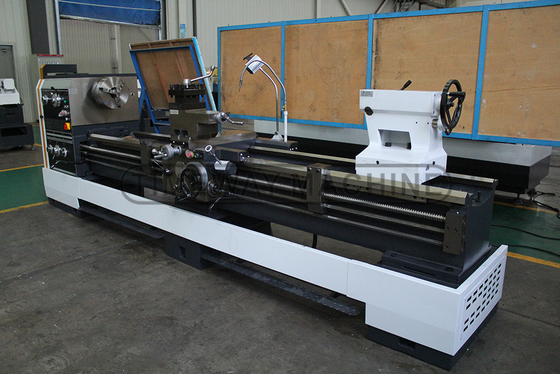

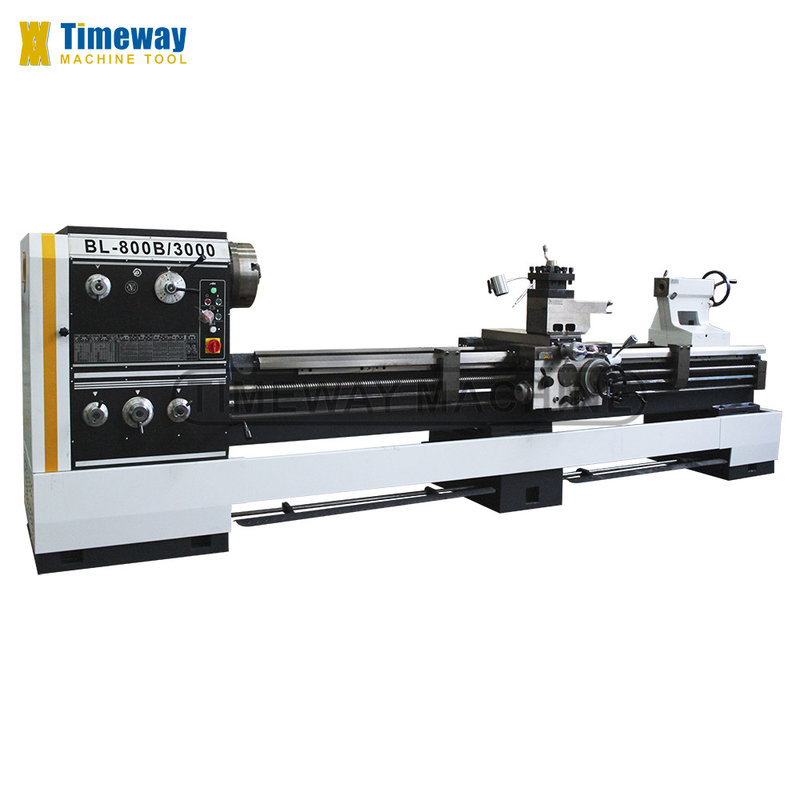

Spindle Motor Power kW 7.5 High Precision Gap-bed Lathe Machine BL-800B for Energy Mining
Product Details:
| Place of Origin: | China |
| Model Number: | BL-800B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2850 | Range Of Spindle Speed(r.p.m): | 8 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 4365 1340 1430 |
| Weight (KG): | 3700 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Gap Bed Lathe Machine |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Keyword: | Lathe Machine Tool |
| Function: | Machining Metal | Processing: | Metal Workpiece |
| CNC Or Not: | Nomal | Precision: | High Precision High Accuracy |
| Distance Between Centers: | 3000mm | Application: | Material Processing |
| Max. Swing Over Bed: | 800mm | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Core Components: | Other |
| Max. Turned Length (mm): | 2850 Mm | ||
Product Description
Product Description
Specification
SPECIFICATION | UNIT | BL-800B |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1000 |
Gap length | mm | 240 |
Distance between centers | mm | 2000/3000 |
Max. turning length | mm | 1850/2850 |
Spindle bore | mm | Φ82 |
Spindle taper | - | Φ90, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 8-1400 (24) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 320 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.012-2.73 (93) |
Z-axis feed range | mm/r | 0.028-6.43 (93) |
Metric threads range (kinds) | mm | 0.5-224 (48) |
Inch threads range (kinds) | TPI | 72-1/8 (46) |
Module threads range (kinds) | MP | 0.5-112 (42) |
Diametrical threads range (kinds) | DP | 56-1/4 (45) |
Tailstock quill diameter | mm | Φ90 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1430 |
Machine weight | kg | 330/3700 |
STANDARD ACCESSORIES:
3-jaw chuck, 4-jaw chuck, Face plate, Dead center, Thread chasing dial, Splash guard, Oil gun, Work lamp,
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation manual.
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation manual.
OPTIONAL ACCESSORIES:
Quick change tool post, 2/3-axis digital readout, Living center, Taper turning attachment, Chuck guard,
Leadscrew guard, Tool post guard.
Leadscrew guard, Tool post guard.
