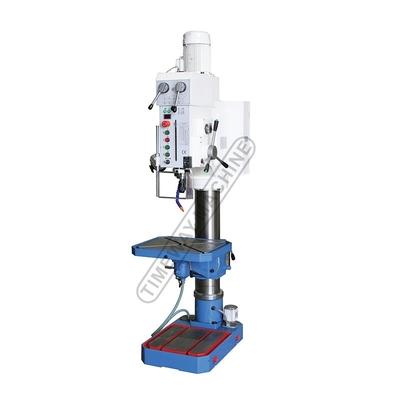

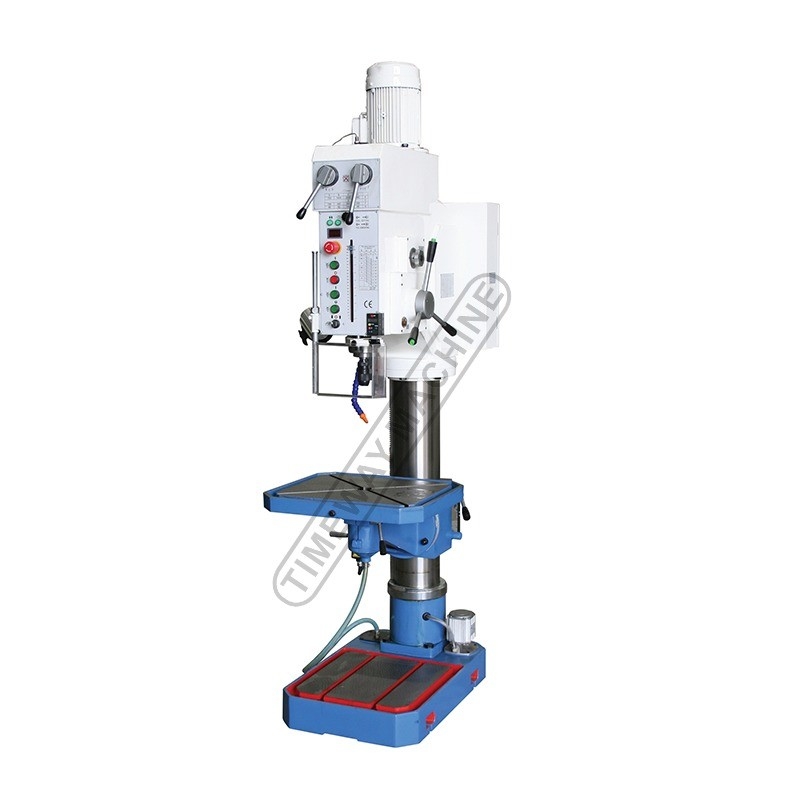

D-35A/D-50A Vertical Drilling Machine for Metal Max. Drilling dia. 50mm Power kW 2.2
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | D-35A D-40A D-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,200.00/sets 3-4 sets |
| Packaging Details: | Wooden case, plywood case |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 52 - 1400 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Require |
| Dimension(L*W*H): | 940x680x2405mm | Power (kW): | 2.2 |
| Weight (KG): | 620 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Brazil, Peru, Romania, South Africa, Malaysia, Australia |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| Product Name: | Vertical Drilling Machine | Machine Type: | Vertical Drilling Milling |
| Max. Drilling Dia.: | 50mm | Warranty Period: | 1 Year |
| Dimension Of Worktable: | 580x460mm | Keyword: | Column Drilling Machine |
| Port: | China Port | ||
Product Description

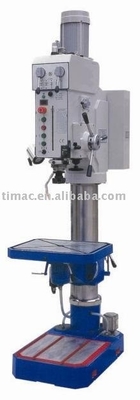

Column Vertical Drilling Machine D-50A
| Model | D-25 | D-30/D-30A | D-32A | D-32 | D-35/D-35A | D-40A | D-50A |
| Max. Drilling dia.(steel) and taping dia.(mm) | Φ25/M16 | Φ30/M20 | Φ32/M22 | Φ32/M20 | Φ35/M22 | Φ40/M24 | Φ50/M27 |
| Max. travel of spindle (mm) | 110 | 135 | 160 | 150 | 160 | 190 | 200 |
| Max. distance from spindle to generating line of column (mm) | 240 | 260 | 320 | 300 | 320 | 340 | 360 |
| Max. distance from spindle nose to surface of worktable (mm) | 630 | 670/685 | 630 | 800 | 585 | 665 | 590 |
| Max. distance from spindle nose to surface of base worktable (mm) | 1100 | 1150/1165 | 1185 | 1225 | 1140 | 1195 | 1175 |
| Max. travel of spindle box (mm) | 250 | 180 | 285 | 270 | |||
| Max. travel of worktable bracket/Manual(Mechanical) (mm) | 450 | 605/500 | 415 | 550 | 545 | 570(450) | 530(410) |
| Swivel angle of worktalbe | ±45° | ±45° | ±45° | ±45° | ±45° | ||
| Spindle taper bore (MT) | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Spindle speed steps | 6 | 12 | 12 | 12 | 12 | 12 | 12 |
| Spindle speed range (r/min) | 125-2825 | 125-3030 | 125-3030 | 78-2500 | 125-3030 | 76-2065 | 52-1400 |
| Spindle feed steps | 3 | 3 | 3 | 3 | 4 | ||
| Spindle feed range (mm/r) | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.4 | ||
| Dimension of worktable(mm) | 350x400 | 420x350 | 500x420 | 190 | 500x420 | 520x440 | 580x460 |
| Effective workig area of worktable | 310x320 | 335x340 | 400x360 | 365x415 | 400x360 | 405x395 | 445x435 |
| Diameter of column (mm) | Φ95 | Φ110 | Φ120 | Φ120 | Φ140 | Φ160 | |
| Power of motor (kw) | 0.75 | 0.85/1.1 | 1/1.2 | 1/1.3/1.7 | 1/1.2 | 1.5 | 2.2 |
| Machine dimension (mm) | 700x500x1900 | 700x465x2060 | 835x500x1960 | 780x505x1910 | 835/510x1730 | 849x545x2290 | 940x680x2405 |
| Packing dimension (mm) | 830x530x1950 | 870x550x2220 | 960x580x2080 | 880x620x1980 | 940x570x2120 | 1000x650x2220 | 1170x680x2300 |
| Net weight/gross weight (kg) | 300/350 | 340/380 | 500/555 | 420/465 | 430/475 | 565/615 | 620/675 |
