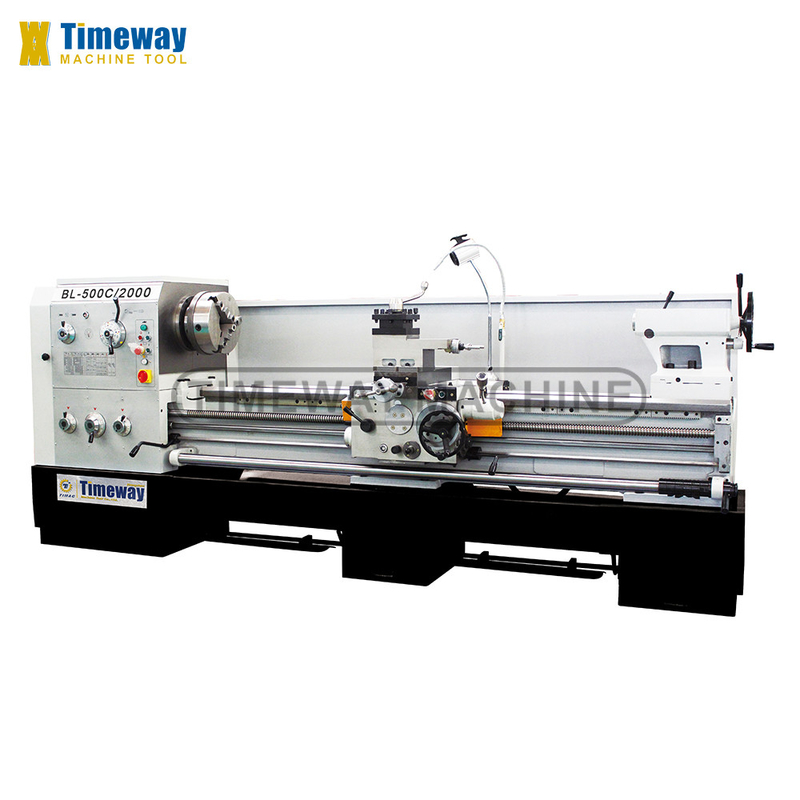

Spindle Speed 36-1600 rpm Gap Bed Lathe Machine BL-500C for Universal Metal Turning
Product Details:
| Place of Origin: | China |
| Model Number: | BL-500C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1950 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 3632 975 1270 |
| Weight (KG): | 2500 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| Function: | Machining Metal | CNC Or Not: | Nomal |
| Precision: | High Precision High Accuracy | Processing: | Metal Workpiece |
| Spindle Speed: | 36-1600 Rpm | Distance Between Centers: | 2000mm |
| Spindle Bore: | 105mm | Condition: | New |
| Spindle Bore(mm): | 105 | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Max. Turned Length (mm): | 1950 Mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Technical parameter: | ||||||
Specifications | Unit | BL-500C | BL-660C | |||
Capacity | ||||||
Max. swing dia. over bed | mm | 500 | 660 | |||
Max. swing dia. over cross slide | mm | 300 | 420 | |||
Max. swing dia. over gap | mm | 710 | 870 | |||
Effective length in gap | mm | 240 | 240 | |||
Max. workpiece length | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | |||
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | |||

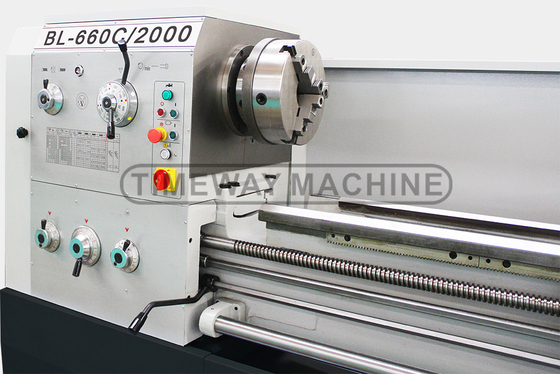

Spindle | ||||||
Spindle bore diameter | mm | Φ105 | Φ105 | |||
Taper of spindle bore | Φ113 1:20 | Φ113 1:20 | ||||
Type of spindle nose | ISO 702/II No.8 | ISO 702/II No.8 | ||||
Spindle speeds | rpm | 36-1600 (12) | 36-1600 (12) | |||
Feeds and threads | ||||||

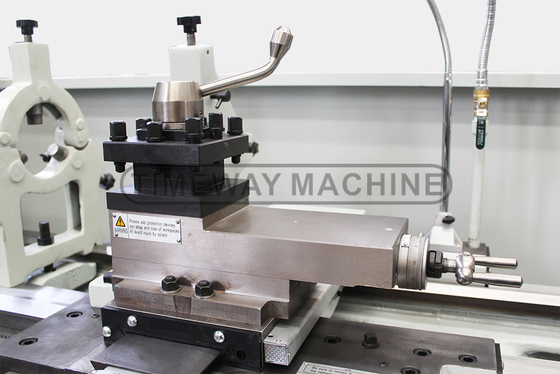

Max. travel of upper toolpost | mm | 145 | 145 | |||
Max. travel of lower toolpost | mm | 320 | 310 | |||
Tool section | mm | 25x25 | 25x25 | |||
X-axis rapid feed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | |||
Z-axis rapid feed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ:4.5; 60HZ: 5.4 | |||
X-axis feeds | mm/r | 0.027-1.07 (65) | 0.027-1.07 (65) | |||
Z-axis feeds | mm/r | 0.63-2.52 (65) | 0.63-2.52 (65) | |||
Metric threads | mm | 1-14 (22) | 1-14 (22) | |||
Inch threads | TPI | 28-2 (25) | 28-2 (25) | |||
Moudle threads | πmm | 0.5-7 (18) | 0.5-7 (18) | |||
Diametric pitch threads | DP | 56-4 (24) | 56-4 (24) | |||

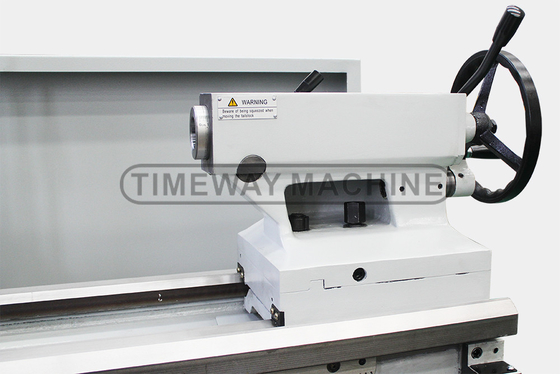

Tailstock | ||||||
Diameter of quill | mm | Φ75 | Φ75 | |||
Max. travel of quill | mm | 150 | 150 | |||
Taper of quill(Morse) | - | MT5 | MT5 | |||
Motor | ||||||
Main motor power | kw | 7.5 | 7.5 | |||
Rapid traverse motor power | kw | 0.3 | 0.3 | |||
Coolant pump motor power | kw | 0.12 | 0.12 | |||
Others | ||||||
Length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | |||
Width | mm | 975 | 975 | |||
Height | mm | 1270 | 1450 | |||
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | |||
STANDARD ACCESSORIES:
3-jaw chuck, 4-jaw chuck, Face plate, Thread chasing dial, Splash guard, Oil gun, Work lamp,
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, etc.
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, etc.
OPTIONAL ACCESSORIES:
Quick change tool post, 2/3-axis digital readout, Living center, Taper turning attachment, Chuck guard,
Leadscrew guard, Tool post guard.
Leadscrew guard, Tool post guard.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
