320 KG Weight Drilling Milling Machine GHM-45B Perfect for Metalworking Projects
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | MD-30A, MD-30B, GHM-40A, GHM-45B, GHM-50B, GHD-40A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,500.00/sets 1-1 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 800 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 45 | Range Of Spindle Speed(r.p.m): | 100 - 2150 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 12r/min |
| Voltage: | 280V | Dimension(L*W*H): | 860x780x1910mm |
| Power (kW): | 1.5KW | Weight (KG): | 320 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Peru, Indonesia, Russia, Thailand, Chile, Algeria, South Africa, Malaysia, Australia | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Advertising Company |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Other | Product Name: | Drilling Milling Machine |
| Max. Drilling Diameter: | 31.5mm | Motor: | 1.5kw |
| Color: | Client's Requirement | Spindle Travel: | 515mm |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

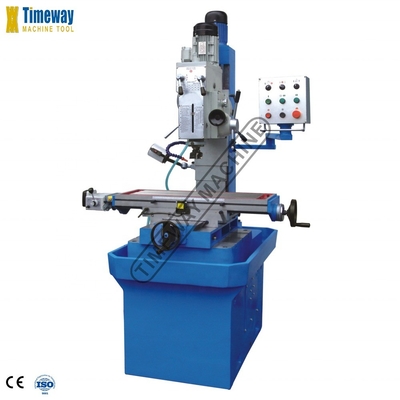

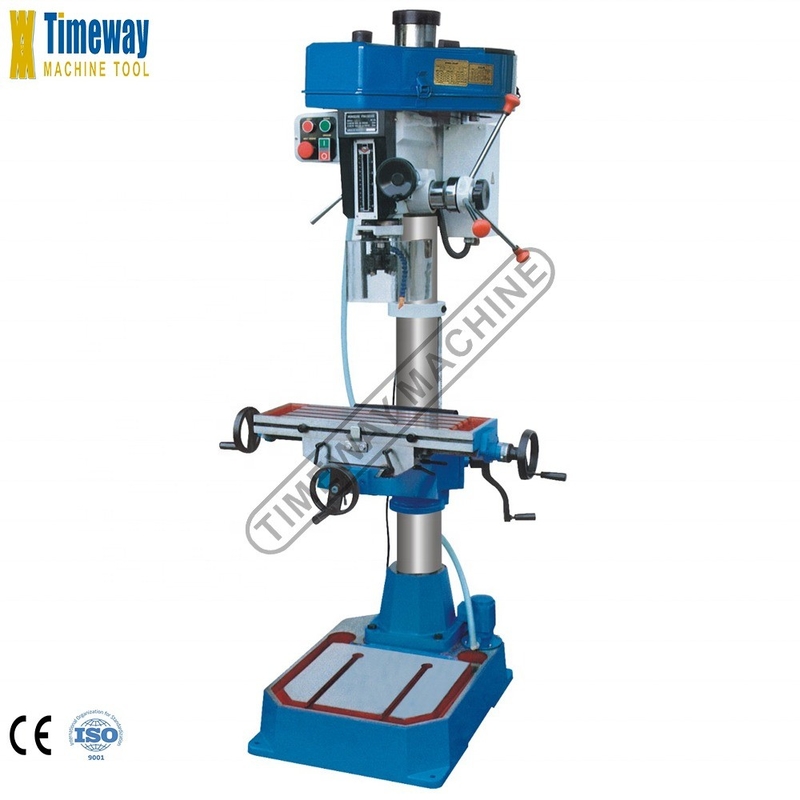

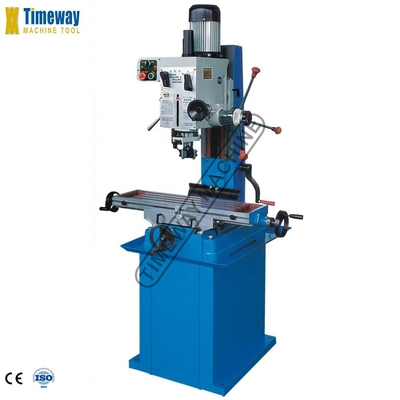

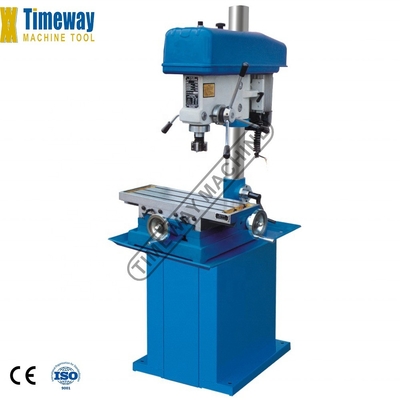

Drilling/Milling Machine
Belt or gear head type drilling machine, drilling milling machine
Product technical parameters
| Model | D-30A | MD-30A | MD-30B | GHD-40 | GHD-40A | GHM-40A | GHM-45B | GHM-50B |
| Max.Drilling capacity (mm) | 31.5 | 31.5 | 31.5 | 40 | 40 | 40 | 45 | 50 |
| Width of facing milling (mm) | / | 80 | 80 | / | / | 80 | 80 | 120 |
| Diameter of facing milling (mm) | / | 22 | 22 | / | / | 22 | 28 | 32 |
| Diameter of column (mm) | 115 | 115 | 115 | 115 | 115 | 115 | / | / |
| Spindle travel (mm) | 130 | 130 | 130 | 120 | 120 | 120 | 120 | 130 |
| Distance spindle axis to column generating line (mm) | 202 | 202 | 202 | 272.5 | 272.5 | 272.5 | 260 | 380 |
| Max.Distance spindle nose to table (mm) | 790 | 745 | 460 | / | 745 | 745 | 475 | 500 |
| Max.Distance spindle nose to base (mm) | 1245 | 1245 | / | 800 | 1200 | 1245 | / | / |
| Spindle taper | MT3 | MT3 | MT3 | MT4 | MT4 | MT4 | MT4 | MT5 |
| Spindle speeds range | 100-2150 | 100-2150 | 100-2150 | 95-1600 | 95-1600 | 95-1600 | 95-1600 | 60-2200 |
| Spindle speeds series (r/min) | 12 | 12 | 12 | 6 | 6 | 6 | 6 | 12 |
| Dimension of worktable surface | 570×470 | 585×190 | 730×210 or 820×240 | / | 540×470 | 585×190 | 730×210 or 820×240 | 900×320 |
| Table travel (mm) | 515 | 370×140×515 | 450×170 or 540×170 | / | 515 | 370×140×515 | 450×170 or 540×170 | 400×320 |
| Dimension of base (mm) | 690×520 | 690×520 | / | 690×520 | 635×460 | 690×520 | 605×558 | / |
| Overall height (mm) | 1810 | 1810 | 1100 | 1450 | 1760 | 1810 | 1050 | 2230 |
| Main motor (W) | 1100 or 1500 | 1100 or 1500 | 1100 or 1500 | 750 or 1100 | 750 or 1100 | 750 or 1100 | 750 or 1100 | 1500/2200 |
| G.W/N.W (kg) | 360/320 | 360/320 | 285/250 | 310/270 | 350/310 | 375/335 | 318/278 | 1700/1500 |
| Packing dimension (cm) | 86×78×191 | 86×78×191 | 86×74×116 or 97×77×116 | 75×73×146 | 72×74×191 | 72×74×191 | 86×74×116 or 97×77×116 | 142×132×280 |
