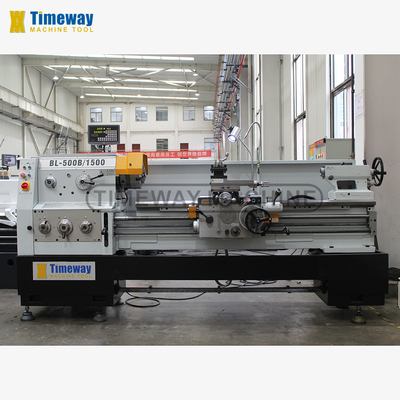

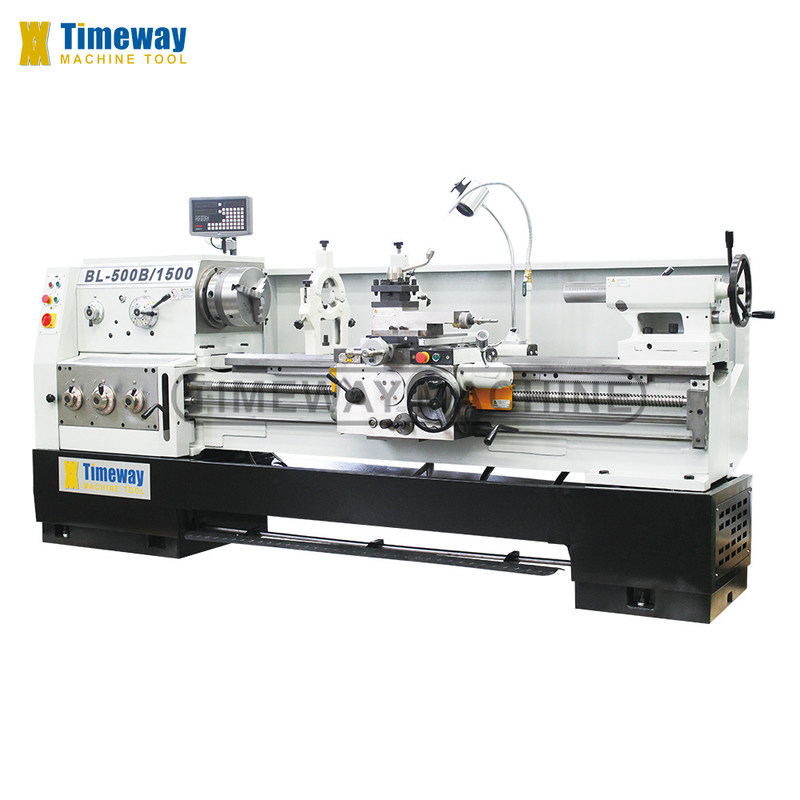

High Precision Small Gap Bed Lathe Machine BL-500B for Workpieces up to 1950mm
Product Details:
| Place of Origin: | China |
| Model Number: | BL-500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1950 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 3632 975 1230 |
| Weight (KG): | 2500 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Gap Bed Lathe Machine |
| Machine Type: | Horizontal Metal Turning Lathe Machine | Keyword: | Universal Metal Lathe |
| Function: | Machining Metal | Product Type: | Horizontal Universal Lathe |
| CNC Or Not: | Nomal | Precision: | High Precision High Accuracy |
| Distance Between Centers: | 2000mm | Swing Over Bed: | 500mm |
| Spindle Bore: | 82mm | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Showroom Location: | Canada, Italy, France, Germany, Russia, Spain, South Africa, Australia | Core Components: | Other |
| Max. Turned Length (mm): | 1950 Mm | ||
Product Description
Product Description
Specification
Specifications | Unit | BL-500B | BL-660B | BL-800B | ||||
Capacity | ||||||||
Max. swing dia. over bed | mm | 500 | 660 | 800 | ||||
Max. swing dia. over cross slide | mm | 300 | 420 | 560 | ||||
Max. swing dia. over gap | mm | 710 | 870 | 1000 | ||||
Effective length in gap | mm | 240 | 240 | 240 | ||||
Max. workpiece length | mm | 750/1000/1500/2000/3000 | 750/1000/1500/2000/3000 | 2000/3000 | ||||
Max. turning length | mm | 700/950/1450/1950/2950 | 700/950/1450/1950/2950 | 1850/2850 | ||||
Spindle | ||||||||
Spindle bore diameter | mm | Φ82 | Φ82 | Φ82 | ||||
Taper of spindle bore | - | Φ90, 1:20 | Φ90, 1:20 | Φ90, 1:20 | ||||
Type of spindle nose | - | ISO 702/II No.8 | ISO 702/II No.8 | ISO 702/II No.8 | ||||
Spindle speeds | rpm | 9-1600 (24) | 9-1600 (24) | 8-1400 (24) | ||||
Feeds and threads | ||||||||
Max. travel of upper toolpost | mm | 145 | 145 | 145 | ||||
Max. travel of lower toolpost | mm | 320 | 310 | 320 | ||||
Tool section | mm | 25x25 | 25x25 | 25x25 | ||||
X-axis rapid feed | m/min | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | 50HZ: 1.9; 60HZ: 2.3 | ||||
Z-axis rapid feed | m/min | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 | 50HZ: 4.5; 60HZ: 5.4 | ||||
X-axis feeds | mm/r | 0.012-2.73 (93) | 0.012-2.73 (93) | 0.012-2.73 (93) | ||||
Z-axis feeds | mm/r | 0.028-6.43 (93) | 0.028-6.43 (93) | 0.028-6.43 (93) | ||||
Metric threads | mm | 0.5-224 (48) | 0.5-224 (48) | 0.5-224 (48) | ||||
Inch threads | t.p.i | 72-1/8 (46) | 72-1/8 (46) | 72-1/8 (46) | ||||
Moudle threads | πmm | 0.5-112 (42) | 0.5-112 (42) | 0.5-112 (42) | ||||
Diametric pitch threads | DP | 56-1/4 (45) | 56-1/4 (45) | 56-1/4 (45) | ||||
Tailstock | ||||||||
Diameter of quill | mm | Φ75 | Φ75 | Φ90 | ||||
Max. travel of quill | mm | 150 | 150 | 150 | ||||
Taper of quill(Morse) | - | MT5 | MT5 | MT5 | ||||
Motor | ||||||||
Main motor power | kw | 7.5 | 7.5 | 7.5 | ||||
Rapid traverse motor power | kw | 0.3 | 0.3 | 0.3 | ||||
Coolant pump motor power | kw | 0.12 | 0.12 | 0.12 | ||||
Others | ||||||||
Length | mm | 2382/2632/3132/3632/4632 | 2382/2632/3132/3632/4632 | 3365/4365 | ||||
Width | mm | 975 | 975 | 1340 | ||||
Height | mm | 1230 | 1270 | 1430 | ||||
Machine weight | kg | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 330/3700 | ||||
STANDARD ACCESSORIES:
3-jaw chuck, 4-jaw chuck, Face plate, Dead center, Thread chasing dial, Splash guard, Oil gun, etc.
OPTIONAL ACCESSORIES:
Quick change tool post, 2/3-axis digital readout, Living center, Taper turning attachment, Chuck guard, Leadscrew guard, Tool post guard.
