Enhance Your Drilling Experience with 0.4KW Column Drill Press and Coolant System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | ZX32H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,500.00/sets 3-4 sets |
| Packaging Details: | WOODEN CASE |
| Supply Ability: | 500 Set/Sets per Month . |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 32 | Range Of Spindle Speed(r.p.m): | 70 - 3200 R.p.m |
| CNC Or Not: | Normal | Voltage: | 220/380V |
| Dimension(L*W*H): | 880x750x1700mm | Power (kW): | 1.1 |
| Weight (KG): | 340 KG | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Showroom Location: | Indonesia, Chile, Romania |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Gear, Motor |
| Column Drill Press: | Drilling Machine | Max. Drilling Diameter: | 32mm |
| Type: | Column Drill Press | Worktable Travel: | 370mmX190mmX120mm |
| Coolant System: | 0.4KW | Head Swivel Range: | ±45° |
| Max. Distance Spindle Nose To Worktable: | 610mm | Diameter Of Column: | 115mm |
| Max. Diatance Spindle Nose To Base: | 1180mm | Thread Cutting In Steel/ST37: | M16 |
| Port: | China Port | ||
Product Description
Product Description

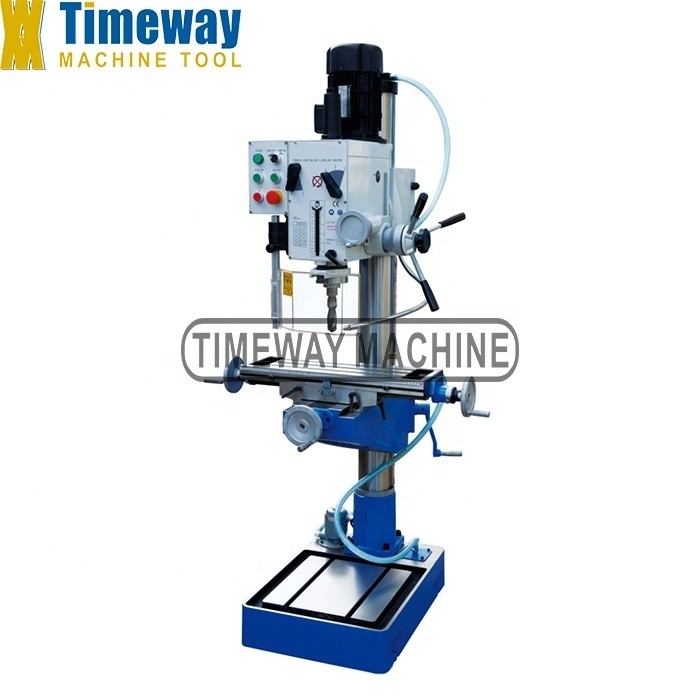

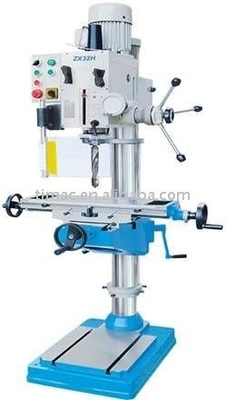

Column Drill Press
Feature
1. Milling, drilling, tapping, boring, reaming;
2. Head swivels 360°;
3. Worktable up & down perpendicularly;
4. Super high column;
5. Micro feed precision;
6. Heavy-duty tapered roler bearing spindle;
7. Positive spindle lock;
8. Adjustable gibs on table;
9. Geared drive, lower noise.
2. Head swivels 360°;
3. Worktable up & down perpendicularly;
4. Super high column;
5. Micro feed precision;
6. Heavy-duty tapered roler bearing spindle;
7. Positive spindle lock;
8. Adjustable gibs on table;
9. Geared drive, lower noise.
Specification
Specifications | ZX32H |
Worktable travel | X: 370mm, Y: 190mm, Z: 120mm |
Dimension of worktable | 710x210mm |
Table load capacity | 100kg |
T-slots(number/width/spacing) | 3x12x50mm |
T-slot foot(number/width/spacing) | 2x14x200mm |
Spindle speeds | 75~3200(12)rpm |
Spindle taper | MT4 |
Quill stroke | 120mm |
Throat | 270mm |
Drilling capacity in steel/ST37 | 32mm |
Main motor rating | 1.1kw |
Coolant system | 0.4kw |
Overall dimensions(LxWxH) | 880x750x1700mm |
Weight | 340kg |
Standard Accessories:
Draw bar; Drill chuck; Tool-holder bits; Coolant system; Operator manual;
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
