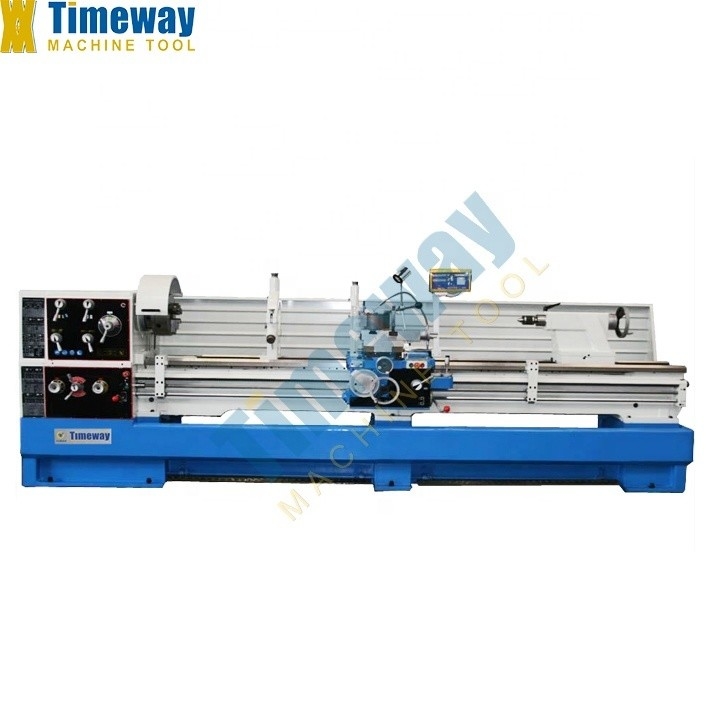

Max. Swing Over Gap 1035mm Saddle Lathe for Metal CL-800 D1-8 Spindle Nose
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CL-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,780.00/sets >=1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 25 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 321*123*167 |
| Weight (KG): | 3175 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Distance Between Centers: | 1500 Mm |
| Max.swing Over Bed: | 800 Mm | Max.swing Over Cross Slide: | 800 Mm |
| Max. Swing Over Gap: | 1035 Mm | Gap Length: | 250 Mm |
| Bed Width: | 400 Mm | Spindle Nose: | D1-8 |
| Spindle Bore: | 105 Mm | Spindle Taper: | Metric 113 |
| Cross Slide Travel: | 420 Mm | Condition: | New |
| Spindle Bore(mm): | 105 | Showroom Location: | France, Brazil, India, Russia, South Africa, Uzbekistan, Tajikistan |
| Core Components: | Bearing, Gear, Motor, Engine | Max. Turned Length (mm): | 1035 Mm |
| Year: | 2024 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Advertising Company, Other |
Product Description
Product Description

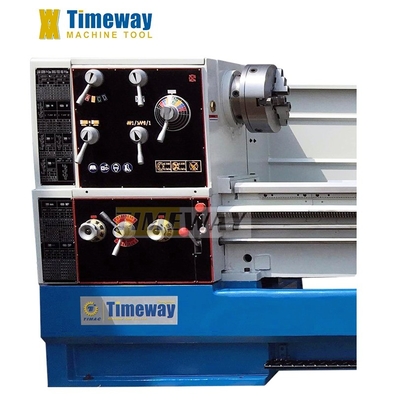

THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. GEARS PRECISELY GROUND TO REDUCE NOISE. SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.
Specification
Specification | CL-800 |
Max. swing over bed | 800 mm |
Max. swing over cross slide | 800 mm |
Max. swing over gap | 1035 mm |
Distance between centers | 1500 mm |
Gap length | 250 mm |
Bed width | 400 mm |
Spindle nose | D1-8 |
Spindle bore | 105 mm |
Spindle taper | Metric 113 |
Spindle speed range | 25-1600 rpm |

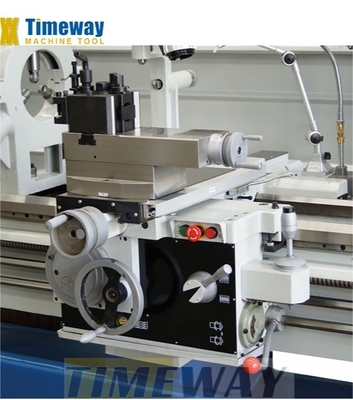

Top slide travel | 230 mm |
Cross slide travel | 420 mm |
Tool section size | 25×25 mm |
Leadscrew | 12 mm |
Longitudinal feed range | 0.044-1.48 mm/rev |
Cross feed range | 0.022-0.74 mm/rev |
Metric threads range (kinds) | 0.45-120(54) mm |
Inch threads range (kinds) | 7/16-80(54) TPI |
Diametrical threads range (kinds) | 7/8-160(42) DP |
Module threads range (kinds) | 0.25-60(46) MP |

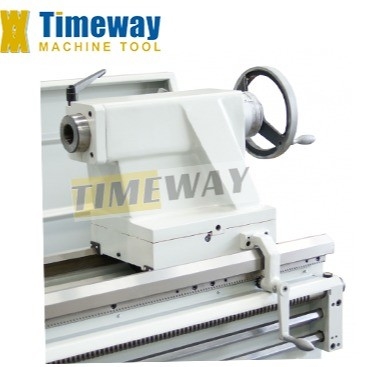

Tailstock quill travel | 90 mm |
Tailstock quill diameter | 235 mm |
Tailstock stock taper | MT5 |
Main motor power | 7.5 kw |
Coolant pump power | 0.1 kw |
Machine dimensions | 321×123×167 cm |
Net weight | 3175 kg |
