Large-sized Radial Drilling Machine Your Best Choice for Heavy-duty Drilling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE |
| Model Number: | RD-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Radial Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 63 | Range Of Spindle Speed(r.p.m): | 20 - 1600 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Request |
| Dimension(L*W*H): | 3110x1250x3150 Mm | Power (kW): | 5.5 Kw |
| Weight (KG): | 7000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Canada, Italy, Peru, Mexico, Russia, Thailand, Chile, South Africa, Ukraine, Malaysia, Australia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gear, Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Tool: | Radial Drilling Machine |
| Power: | 5.5 Kw | Max.Drilling Capacity: | 63 Mm |
| Diameter Of Column: | 450 Mm | Spindle Taper: | MT5 |
| Spindle Speeds Range: | 20-1600 R/min | Dimension Of Worktable: | 950x630x500 Mm |
| Machine Type: | Veritcal | ||
Product Description
Products Description

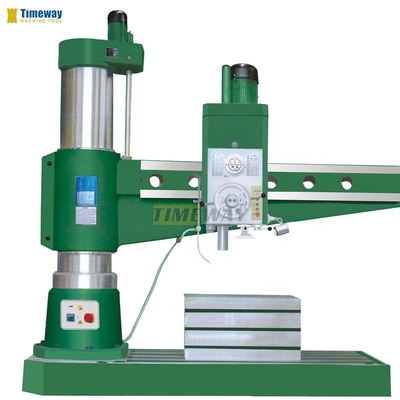

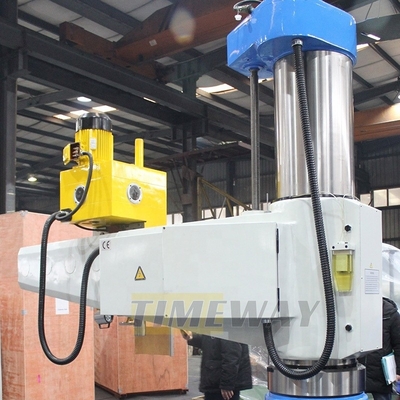

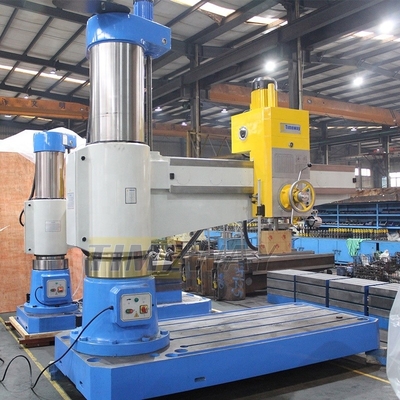

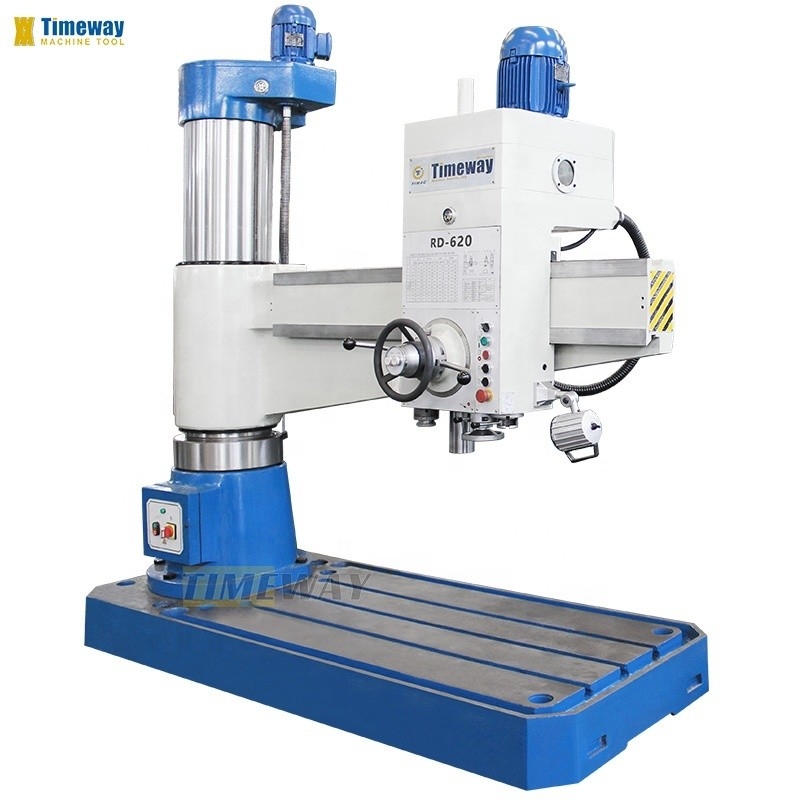

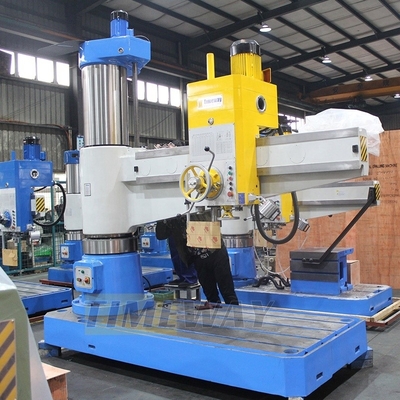

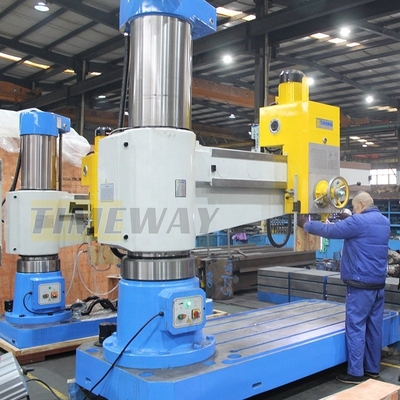

Radial Drilling Machine
* Gather mechanical-electrical-hydraulic functions, use extensively.
* With wide range of speed and feed, with manual, power and fine feeds.
* With wide range of speed and feed, with manual, power and fine feeds.
* The feed of machines are very easily engaged and disengaged at any time.
* With safe and reliable feed safety machine, all parts easy operation and change.
* All controls centralized on the headstock easy operation and change.
* With safe and reliable feed safety machine, all parts easy operation and change.
* All controls centralized on the headstock easy operation and change.
*Clamping for all assemblies and speed change of spindleachieved by hydraulic, sensitive and reliable.
* Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
* Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
*Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
*Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
*Importable electrical components with CE, CSA, UL standard.
* Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
*Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
*Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
*Importable electrical components with CE, CSA, UL standard.
Specification | Unit | RD620 |
Max.Drilling capacity | mm | 63 |
Distance spindle axis to column generating line | mm | 450-2050 |
Diameter of column | mm | 450 |
Spindle taper | MT5 | |
Spindle travel | mm | 400 |
Spindle speeds range | r/min | 20-1600 |
Spindle speeds series | 16 | |
Range of spindle feeds | mm/r | 0.04-3.2 |
Spindle feeds | 16 | |
Distance spindle nose to working surface of base | mm | 400-1600 |
Dimension of worktable | mm | 950x630x500 |
Dimension of base | mm | 2900x1250x250 |
Overall size | mm | 3110x1250x3150 |
Power of main motor | kw | 5.5 |
G.W/N.W | kg | 8000/7000 |
Packing dimension | cm | 382x163x170 |
·Box table ·Drill chuck arbor ·Morse taper drill sleeve ·LED working lamp ·Coolant system ·Lifting motor ·Hydraulic motor ·Spindle protective cover ·Tools & tool-box, Operation manual | ·Rotation worktable ·Quick change collet ·Machine Vise ·Keyless drill chuck |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
