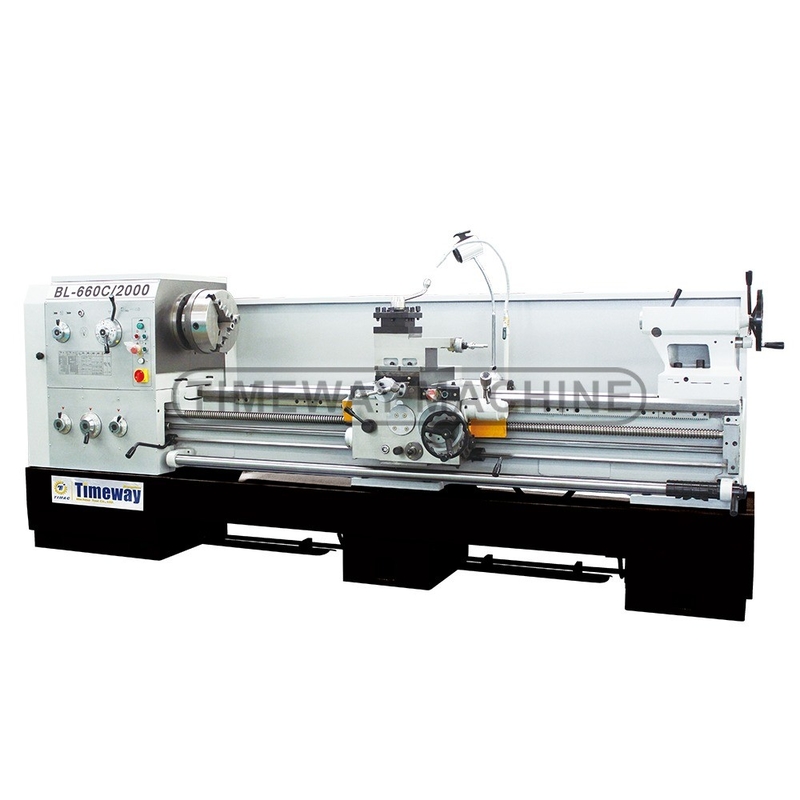

BL-660C Metal Lathe Machine 36-1600 rpm Spindle Speed Range 660mm Max. Swing Over Bed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL-660C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,888.00/sets >=1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 2000 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 3632*975*1450 |
| Weight (KG): | 2600 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Bed: | 660 Mm |
| Max. Swing Over Cross Slide: | 420 Mm | Max. Swing Over Gap: | 870 Mm |
| Gap Length: | 240 Mm | Distance Between Centers: | 2000 Mm |
| Max. Turning Length: | 1950 Mm | Spindle Bore: | 105 Mm |
| Spindle Taper: | 113 Mm | Spindle Nose: | ISO 702/II No.8 |
| Spindle Speed Range: | 36-1600 Rpm | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | Viet Nam, Saudi Arabia, Argentina, UAE, Malaysia | Core Components: | Gear, Gearbox |
| Max. Turned Length (mm): | 1950 Mm | Year: | 2024 |
Product Description
Product Description
The lathe is widely used. Itis mainly used for lathe turning the excircle, inner bore, head face, taper, metric screw
threadsmodule threads and pitch threads of various kinds of rotating pats.
threadsmodule threads and pitch threads of various kinds of rotating pats.
Marking accessories: 3-jaw chuck/4-jaw chuck, Face plate, Dead center, Thread chasing dial, Splash guard, Oil gun, Work lamp, Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation manual.
Specification
Specification | BL-660C |
Max. swing over bed | 600 mm |
Max. swing over cross slide | 420 mm |
Max. swing over gap | 870 mm |
Gap length | 240 mm |
Distance between centers | 2000 mm |
Max. turning length | 1950 mm |
Spindle bore | 105 mm |
Spindle taper | 113 mm |
Spindle nose | ISO 702/II No.8 |
Spindle speed range (steps) | 36-1600 (12) |
Top slide travel | 145 mm |
Cross slide travel | 310 mm |
Tool section size | 25x25 mm |
X-axis rapid feed speed | 50HZ: 1.9; 60HZ: 2.3 m/min |
Z-axis rapid feed speed | 50HZ:4.5; 60HZ: 5.4 m/min |
X-axis feed range | 0.027-1.07 (65) mm/r |
Z-axis feed range | 0.63-2.52 (65) mm/r |
Metric threads range (kinds) | 1-14 (22) mm |
Inch threads range (kinds) | 28-2 (25) TPI |
Module threads range (kinds) | 0.5-7 (18) MP |
Diametrical threads range (kinds) | 56-4 (24) DP |
Tailstock quill diameter | 75 mm |
Tailstock quill travel | 150 mm |
Tailstock quill taper | MT5 |
Main motor power | 7.5 kw |
Rapid feed motor power | 0.3 kw |
Coolant pump motor power | 0.12 kw |
Machine length | 3632 mm |
Machine width | 975 mm |
Machine height | 1450 mm |
Machine weight | 2600 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
