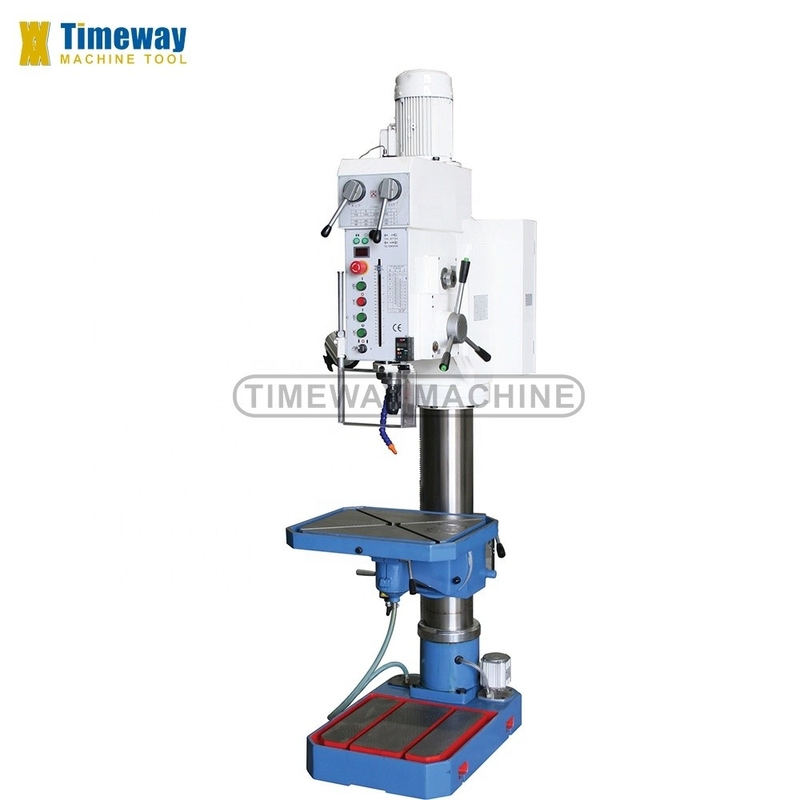

50mm Geared Head Pedestal Drillers Spindle Feed Range 0.1-0.4 r/min 12 Speed Steps
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | D-50A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-4 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 52 - 1400 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Per Customer Request |
| Dimension(L*W*H): | 940x680x2405mm | Power (kW): | 2.2 |
| Weight (KG): | 675 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Canada, United States, Italy, Germany, Brazil, India, Mexico, Spain, Thailand, South Africa, Australia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine, Other |
| Type: | Drilling Machine | Max. Drilling Dia. & Taping Dia.: | 50/M27 Mm |
| Max. Travel Of Spindle (mm): | 200 Mm | Throat Depth (mm): | 360 Mm |
| Max. Travel Of Spindle Box (mm): | 270 Mm | Spindle Feed Range (mm/r): | 0.1-0.4 R/min |
| Spindle Feed Steps: | 4 | Spindle Speed Range (r/min): | 52-1400 R/min |
| Spindle Speed Steps: | 12 | Diameter Of Column (mm): | 160 Mm |
| Port: | China Port | ||
Product Description
Products Description
* Superior quality of gears with hardened and lapped gears of surface.
* Gear shift, realize multiple steps spindle speed for various machining needs.
* Thin oil lubrication is available for drilling diameter 40mm and 50mm, grease lubrication is available for others.
* 220v-575v with 3-phase collocation is available.

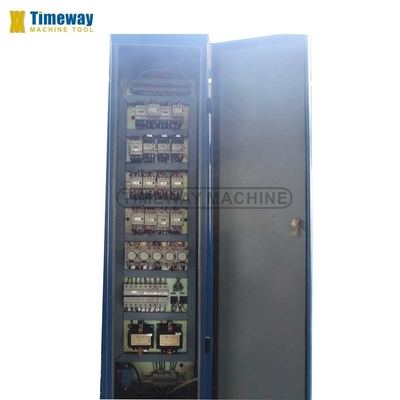

* Importable electrical components with CE, CSA and UL standard.
* Equipped with coolant system and fender device.

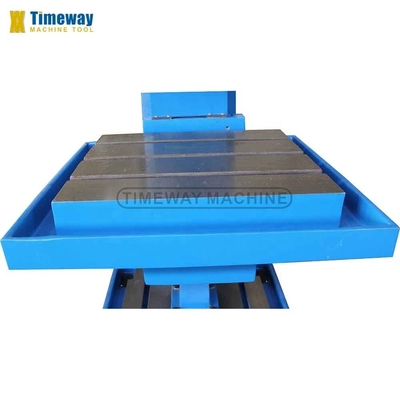

* Worktable could be rotated and could be inclined ±45°.
* Gear shift, realize multiple steps spindle speed for various machining needs.
* Thin oil lubrication is available for drilling diameter 40mm and 50mm, grease lubrication is available for others.
* 220v-575v with 3-phase collocation is available.
* Importable electrical components with CE, CSA and UL standard.
* Equipped with coolant system and fender device.
* Worktable could be rotated and could be inclined ±45°.
Specification | Unit | D-30A | D-32A | D-35A | D-40A | D-50A |
Max. drilling and tapping diameter (steel) | mm | Φ30/M20 | Φ32/M22 | Φ35/M22 | Φ40/M24 | Φ50/M27 |
Max. travel of spindle | mm | 135 | 155 | 155 | 190 | 200 |
Max. distance from spindle axis to column | mm | 260 | 320 | 320 | 360 | 380 |
Max. distance from spindle nose to worktable | mm | 685 | 630 | 585 | 615 | 590 |
Max. distance from spindle nose to base worktable | mm | 1165 | 1185 | 1140 | 1195 | 1175 |
Max. travel of spindle box | mm | 180 | 285 | fixed | fixed | fixed |
Max. travel of worktable and bracket | mm | 500 | 415 | 545 | 550 | 530 |
Swivel angle of worktable | ±45° | ±45° | ±45° | ±45° | ±45° | |
Inclined angle of worktable | ±45° | ±45° | ±45° | ±45° | ±45° | |
Spindle taper bore | MT | 3 | 4 | 4 | 4 | 4 |
Spindle speed steps | steps | 12 | 12 | 12 | 9 | 9 |
Spindle speed range | r/min | 125-3030 | 125-3030 | 125-3030 | 72-2150 | 70-2100 |
Spindle feed steps | steps | 3 | 3 | 3 | 3 | 3 |
Spindle feed range | mm/r | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.1, 0.2, 0.3 | 0.12, 0.24, 0.42 | 0.12, 0.23, 0.40 |
Spindle feed way | electromagnetism | electromagnetism | electromagnetism | electromagnetism | electromagnetism | |
Dimension of worktable (LXW) | mm | 420x350 | 500x420 | 500x420 | 570x480 | 600x500 |
Effective working area of worktable | mm | 335x340 | 370x360 | 370x360 | 410x395 | 445x435 |
Power of motor | kw | 0.85/1.1 | 1/1.2 | 1/1.2 | 2 | 2.2 |
Machine dimension | mm | 750x500x2080 | 850x500x2220 | 860x515x2170 | 945x570x2290 | 1000x600x2260 |
Net weight/gross weight | kg | 320/360 | 510/560 | 430/475 | 550/600 | 675/710 |
· Shaft sleeve for taper shank tool ·Key type drill chuck ·Connecting bar for drill chuck ·Wedge for taper shank tool · Double open end spanner | ·Φ6-Φ16mm collet ·Milling cutter shank ·Cross worktable ·Collet shank ·Nut for T-slot ·Inner hexagon bolt ·125mm precision vice ·Rotation worktable |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
