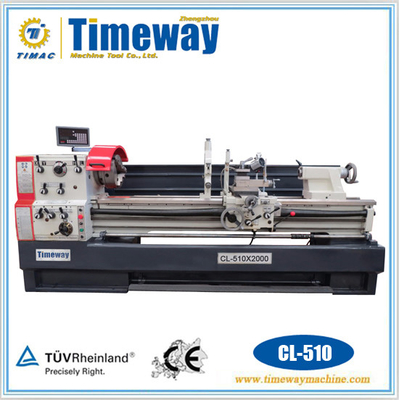

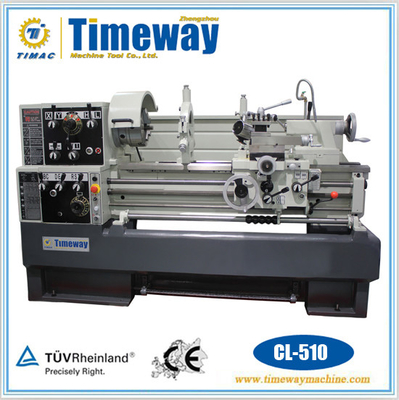

Horizontal Gap Bed Lathe Machine CL-510 Customrized for Your Metal Turning Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CL-510 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $31,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Weight (KG): | 2070 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 510mm | Max. Swing Over Cross Slide: | 305mm |
| Gap Length: | 170mm | Machine Type: | Gab Bed Lathe |
| Cross Slide Travel: | 316mm | CNC Or Not: | Nomal |
| Color: | Customrized | Name: | Gap-bed Lathe |
| Precision: | High Precision High Accuracy | Processing Types: | Metal Processing Machine |
| Condition: | New | Spindle Bore(mm): | 80 |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Farms, Construction Works , Energy & Mining | Showroom Location: | Canada, Italy, France, Germany, Brazil, India, Russia, Thailand, Kenya, Algeria, Bangladesh, South Africa, Nigeria, Japan, Malaysia, Australia |
| Core Components: | Motor, Engine | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual(English)
OPTIONAL ACCESSORIES:
Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION | UNIT | CL-510 |
Max. swing over bed | mm | 510 |
Max. swing over cross slide | mm | 305 |
Max. swing over gap | mm | 735 |
Distance between centers | mm | 1000/1500/ 2000/3000 |
Gap length | mm | 170 |
Bed width | mm | 350 |
Spindle nose | - | D1-8 |
Spindle bore | mm | 80 |
Spindle taper | - | MT7 |
Spindle speed range (steps) | rpm | 25-2000 (12) |
Top slide travel | mm | 130 |
Cross slide travel | mm | 316 |
Tool section size | mm | 25x25 |
Leadscrew | - | 40x4T.P.I or pitch 6mm |
Longitudinal feed range | mm/rev | 0.059-1.646 (32) |
Cross feed range | mm/rev | 0.02-0.573 (42) |
Metric threads range (kinds) | mm | 0.2-14 (47) |
Inch threads range (kinds) | TPI | 2-112 (60) |
Diametrical threads range (kinds) | DP | 4-112 (50) |
Module threads range (kinds) | MP | 0.1-7 (34) |
Tailstock quill diameter | mm | Φ75 |
Tailstock quill travel | mm | 180 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Coolant pump motor power | kw | 0.1 |
Machine dimensions (LxWxH) | mm | 239/284/334/434x115x143 |
Packing size (LxWxH) | mm | 245/290/340/440x119x174 |
Net weight | kg | 2070/2160/2435/2805 |
Gross weight | kg | 2460/2550/2840/3270 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
