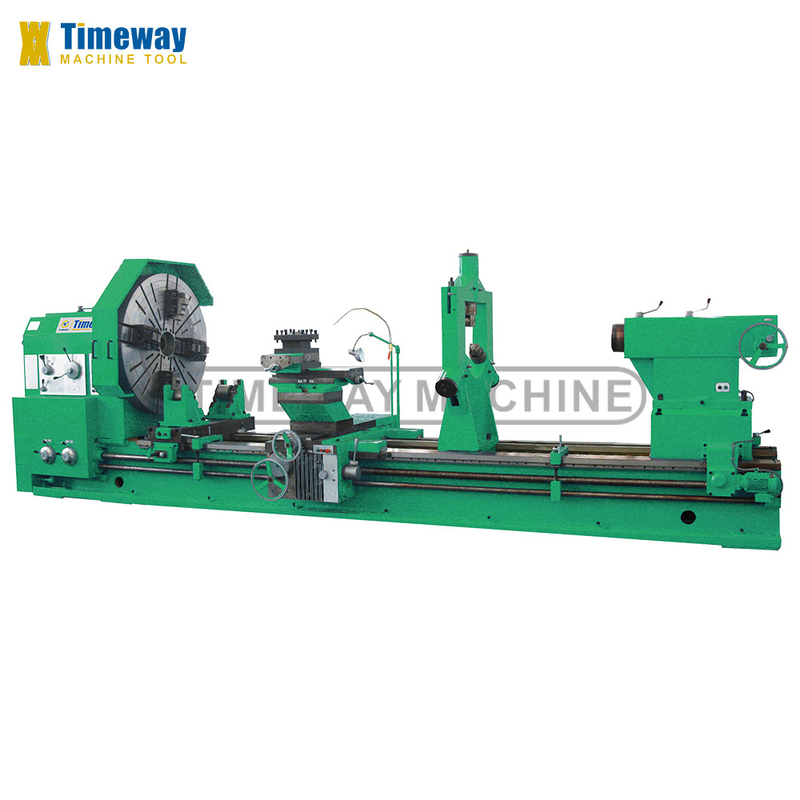

AL-1600 Heavy Duty Horizontal Lathe Machine for Output and Customizable Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,080.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 11800 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 6120x2130x2380 | Weight (KG): | 12000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 16000 | Spindle Taper: | Metric 140 |
| Cutting Torque: | 52 N.m | Rapid Feed Speed(mm/min): | 3.15 - 315 Mm/min |
| Feed Speed(mm/min): | 3.5 - 291 Mm/min | Tool Post Stations: | 4 |
| Product Name: | Horizontal Turning Lathe Machine | CNC Or Not: | Normal Lathe Machine |
| Max. Swing Over Bed: | 1600mm | Distance Between Centers: | 3000/4000/5000/6000/8000/10000/12000/-mm |
| Bed Width: | 1100mm | Loading Capacity: | 16(opt: 20)tons |
| Machine Type: | Horizontal Normal Lathe | Spindle Bore: | 100mm |
| Cross Slide Travel: | 850mm | Color: | Customrized |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
1.This series horizontal lathe is suitable for processing large sized parts of castings, steels and non-ferrous metals. It can turn outer circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and external threads, such as metric, inch, modulus and
diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.
diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful cutting; When finished, the roundness error is not more than 0.015mm, the cylinder degree error is not more than 0.05mm in the measuring length of 300mm.
Specification
SPECIFICATION | UNIT | AL-1600 |
Max.swing over bed | mm | 1600 |
Max.swing over cross slide | mm | 1250 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Loading capacity | tons | 16(opt: 20) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21, Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal:0.1-12; Cross:0.05-6; Top tool-post: 0.025-3 |
Metric threads range(kinds) | mm | 1-120 (44) |
Inch threads range(kinds) | TPI | 28-1/4 (31) |
Module threads range(kinds) | MP | 0.5-60 (45) |
Diametrical threads range(kinds) | DP | 1/2-56 (38) |
Distance spindle center to tool base | mm | 53 |
Tool post swivel angle | . | ±90° |
Cross slide travel | mm | 850 |
Top slide travel | mm | 360 |
Top section size | mm | 50x50 |
Tool post feed per gar | mm | 0.05 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 30 |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
Machine width | mm | 2130 |
Machine height | mm | 2380 |
STANDARD ACCESSORIES:

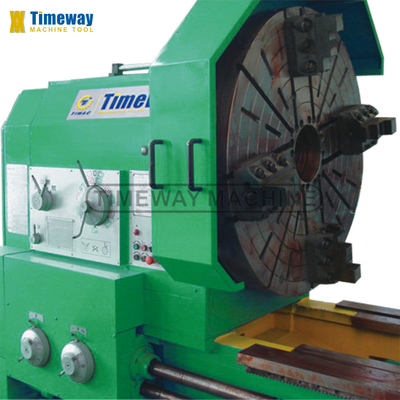

4-jaw heavy duty independent chuck,

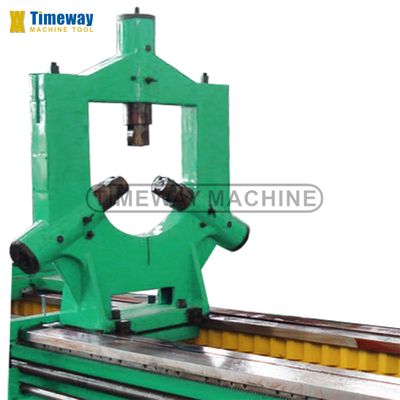

Steady rest,
Dead center,

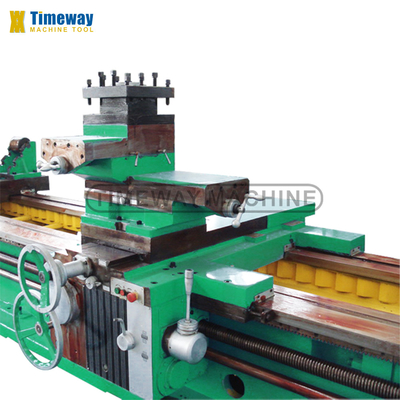

4-station tool post,
Cooling system,
Work lamp,
Electric moving tailstock,
Tools & tool-box,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
Face plate,
2 or 3-axis DRO,
Chuck guard,
Tool-post guard,
Rear splash guard,

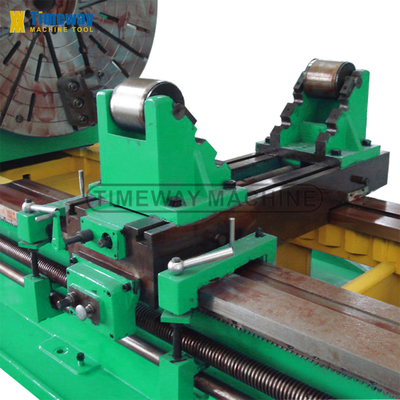

Roller support,
Grinding attachment.
