565kg Vertical Drilling Machine D-40A with 849x545x2290mm Dimensions
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | D-40A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,000.00/sets 3-4 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 40 | Range Of Spindle Speed(r.p.m): | 76 - 2065 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Require |
| Dimension(L*W*H): | 849x545x2290mm | Power (kW): | 1.5 |
| Weight (KG): | 565 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Brazil, Indonesia, Russia, Thailand, South Africa |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Product Name: | Vertical Drilling Machine | Weight: | 565kg |
| Max. Drilling Diameter: | 40mm | Warranty Period: | 1year |
| Power Of Motor: | 1.5kw | Port: | China Port |
Product Description

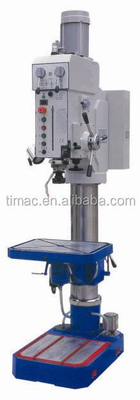

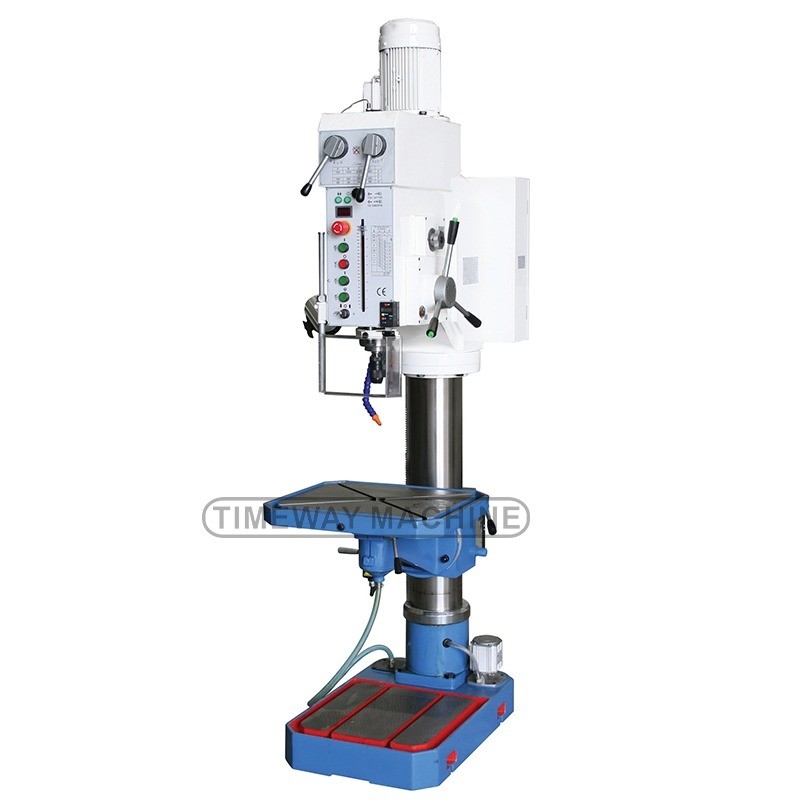

Vertical Drilling Machine D-40A
| Specification | D-40A | D-50A |
| Max. Drilling diameter(steel) & taping diameter(mm) | 40/M24 | 50/M27 |
| Max. travel of spindle (mm) | 190 | 200 |
| Throat depth (mm) | 340 | 360 |
| Max. distance from spindle nose to surface of worktable (mm) | 665 | 590 |
| Max. distance from spindle nose to surface of base worktable (mm) | 1195 | 1175 |
| Max. travel of spindle box (mm) |
|
|
| Max. travel of worktable bracket/Manual(Mechanical) (mm) | 570(450) | 530(410) |
| Swivel angle of worktable | ±45° | ±45° |
| Spindle taper bore (MT) | 4 | 4 |
| Spindle speed steps | 12 | 12 |
| Spindle speed range (r/min) | 76-2065 | 52-1400 |
| Spindle feed steps | 3 | 4 |
| Spindle feed range (mm/r) | 0.1-0.3 | 0.1-0.4 |
| Dimension of worktable(mm) | 520x440 | 580-460 |
| Effective working area of worktable | 405x395 | 445x435 |
| Diameter of column (mm) | 140 | 160 |
| Power of motor (kw) | 1.5 | 2.2 |
| Machine dimension (mm) | 849x545x2290 | 940x680x2405 |
| Packing dimension (mm) | 1000x650x2220 | 1170x680x2300 |
| Net weight/gross weight (kg) | 565/615 | 620/675 |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
