Max. Drilling Capacity 50mm Redial Arm Pillar Drilling Machine for Metal Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | Z5050A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,800.00/sets >=1 sets |
| Packaging Details: | Wooden case/Pallet(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 42 - 1865 R.p.m |
| CNC Or Not: | Normal | Voltage: | As Require |
| Dimension(L*W*H): | 700x1150x2150mm | Power (kW): | 2.8kw |
| Weight (KG): | 800 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Brazil, Indonesia, Russia, South Africa |
| Applicable Industries: | Building Material Shops, Manufacturing Plant | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Other |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Max. Drilling Capacity: | 50mm |
| Machine Type: | Veritcal | Color: | As Require |
| Warranty Period: | 1year | Max. Travel Of Spindle: | 180mm |
| Port: | China Port | ||
Product Description

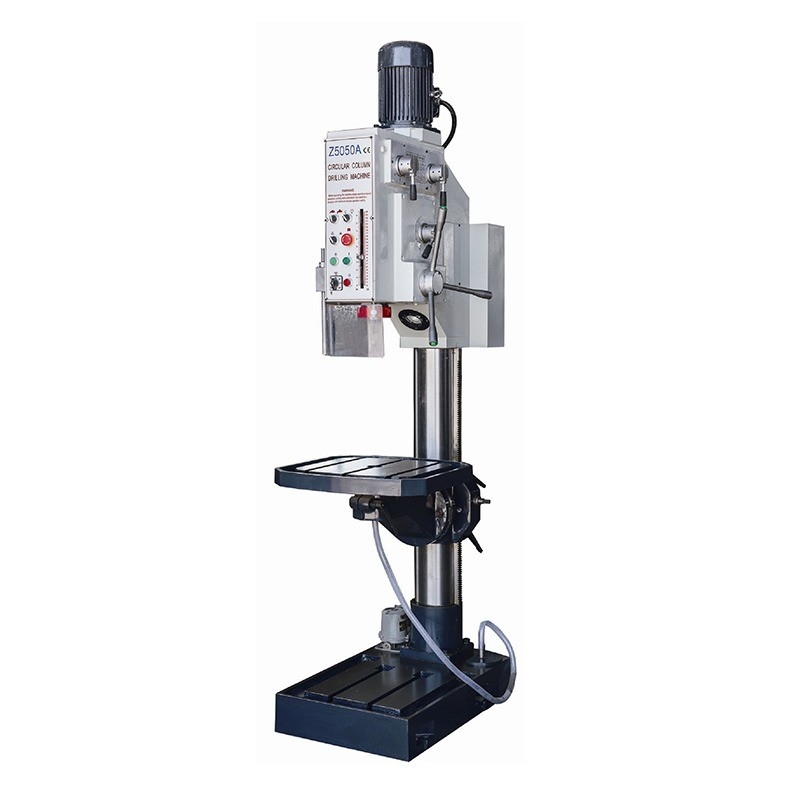

Z5050A Redial, Arm Pillar Drilling Machine for Metal

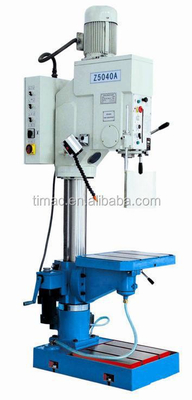

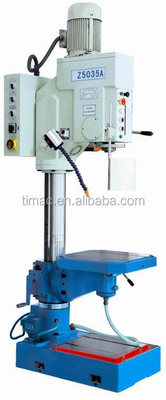

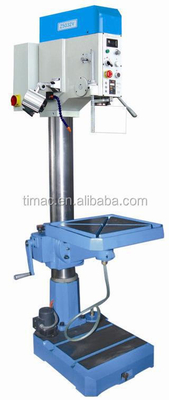

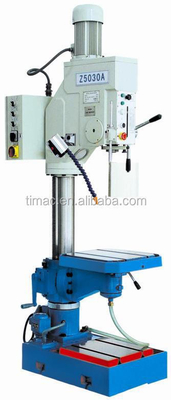

| Specification | Unit | Z5030A | Z5032V | Z5035A | Z5040A | Z5050A |
| Max. drilling capacity | mm | 30 | 32 | 35 | 40 | 50 |
| Max. tapping capacity | mm | M18 | - | M20 | M24 | M24 |
| Distance from spindle axis to generating line of column | mm | 315 | 290 | 330 | 360 | 360 |
| Max. distance from spindle nose to worktable surface | mm | 520 | 790 | 610 | 600 | 600 |
| Max. distance from spindle nose to base surface | mm | 1080 | 1300 | 1150 | 1215 | 1205 |
| Max. travel of spindle | mm | 135 | 115 | 150 | 180 | 180 |
| Max. adjustment of worktable and table rest | mm | 480 | 790 | 540 | 560 | 525 |
| Swivel of table and table rest | ° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Spindle bore taper |
| Morse 3 | Morse 3 | Morse 4 | Morse 4 | Morse 4 |
| Spindle speed steps |
| 12steps | 2steps, variable in each step | 12steps | 12steps | 12steps |
| Spindle speed range | rpm | 70-2600 | Low: 55-350, High 350-2300 | 12steps, 70-2600 | 42-2050 | 42-1865 |
| Spindle feed steps |
| 3 | - | 3 | 4 | 4 |
| Spindle feed range | mm/r | 0.1, 0.2, 0.3 | - | 0.1, 0.2, 0.3 | 0.07,0.15,0.26,0.4 | 0.07,0.15,0.26,0.4 |
| Column diameter | mm | 125 | 120 | 140 | 160 | 170 |
| Effective working area of table(LxW) | mm | 450x450 | 420x420 | 500x550 | 580x450 | 580x450 |
| Effective working ares of base(LxW) | mm | 690x480 | 600x450 | 760x500 | 820x550 | 820x550 |
| Dimension of T-slot of table and base | mm | 2-14, 2-16 | 2-12 | 2-14, 2-16 | 2-14, 2-16 | 2-14, 2-16 |
| 3-Phase two speed AC motor | kw | 1.1/1.5 | 1.1 | 1.5/2.2 | 2.2/2.8 | 2.2/2.8 |
| 3-Phase two speed AC motor speed | rpm | 960/1450 | 1440 | 960/1450 | 960/1450 | 960/1450 |
| 3-Phase pump motor | kw | 0.09 | 0.06 | 0.09 | 0.09 | 0.09 |
| Packing size | mm | 650x1050x1950 | 900x590x1980 | 700x1150x2150 | 700x1150x2150 | 700x1150x2150 |
| Net/Gross weight | kg | 440/500 | 310/360 | 670/730 | 740/800 | 800/860 |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
