3900 KG Weight RD516 50mm Radial Drilling Machine for Your Request
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | RD516 RD520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,600.00/sets >=1 sets |
| Packaging Details: | wooden case/plywood case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Radial Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 25 - 2000 R.p.m |
| CNC Or Not: | Normal | Voltage: | 220/380V |
| Dimension(L*W*H): | 2500x1060x2650mm | Power (kW): | 4 |
| Weight (KG): | 3900 KG | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level | Showroom Location: | Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine |
| Product Name: | Radial Drilling Machine | Color: | As Your Request |
| After-sales Service Provided: | Online Support | Max.Drilling Capacity: | 50mm |
| Spindle Travel: | 315mm | Machine Type: | Drilling Equipment |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

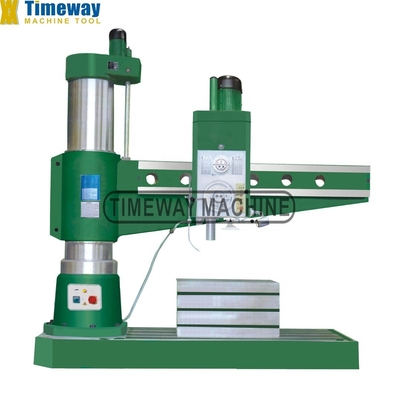

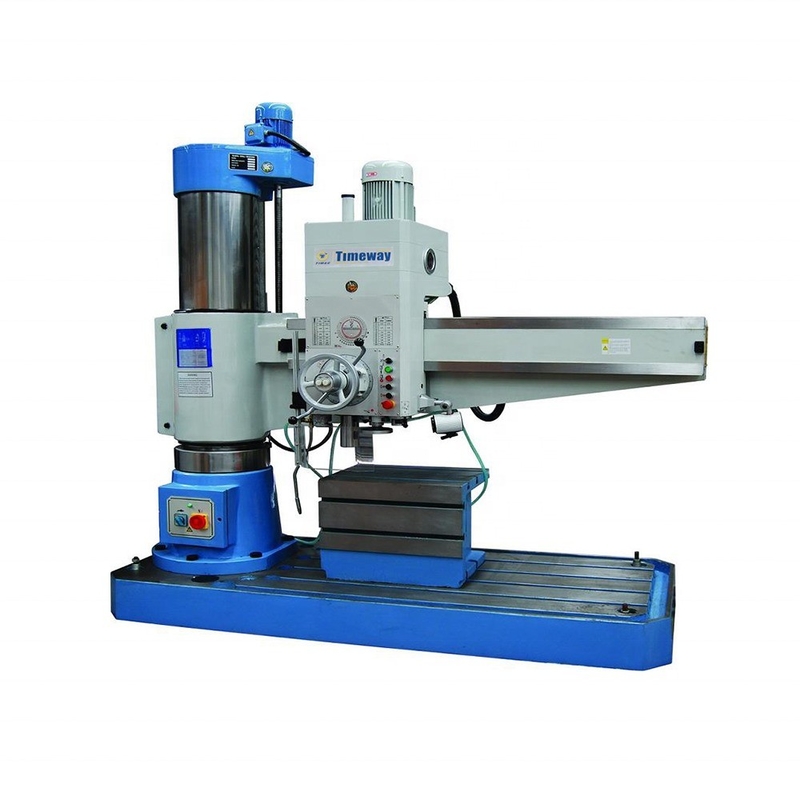

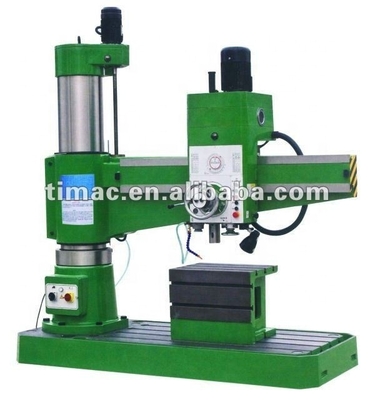

Hydraulic Radial Drilling Machine
Features:
1. The radial drilling machine is new series with diversified fuctions of product which has been designed and accomplished referring to international standard ISO in the recent years.
2. In this machine, hydraulic preselection speed and feed change mechanisms are adopted, the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.
3. The forward, reverse, stop(braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has characteristics features of perfect performance, safe,reliable and easy operation, convenient maintenance, high-accuracy, ample rigidity and long service long.
4. It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used in every department of mechaninal machining.
| Specification | Unit | RD516 | RD520 |
| Max.Drilling capacity | mm | 50 | 50 |
| Distance spindle axis to column generating line | mm | 350-1600 | 350-2000 |
| Diameter of column | mm | 350 | 350 |
| Spindle taper | MT5 | MT5 | |
| Spindle travel | mm | 315 | 315 |
| Spindle speeds range | r/min | 25-2000 | 25-2000 |
| Spindle speeds steps | 16 | 16 | |
| Range of Spindle feeds | mm/r | 0.04-3.2 | v |
| Spindle feeds steps | mm | 16 | 16 |
| Max.Distance spindle nose to working surface of base | mm | 320-1220 | 320-1220 |
| Dimension of worktable | mm | 630×500×500 | 630×550×500 |
| Dimension of base | mm | 2400×1000×200 | 2400×1000×200 |
| Overall Size | mm | 2500×1060×2650 | 2900×1060×2650 |
| Power of Main motor | kw | 4 | 4 |
| G.W/N.W | kg | 3900/3500 | 3950/3550 |
| Packing dimension | cm | 270×112×258 | 320×112×258 |
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
