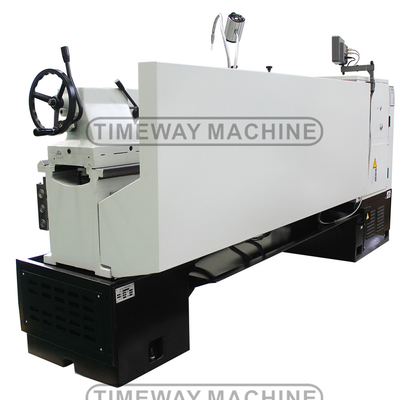

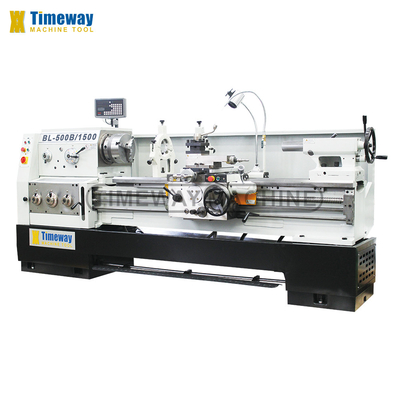

1500mm Distance between Centers and Construction Works Gap-bed Lathe BL-500B for Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BL500B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,400.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1450 | Range Of Spindle Speed(r.p.m): | 9 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 7.5 | Dimension(L*W*H): | 3132 975 1230 |
| Weight (KG): | 2300 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Bed-gap Lathe BL-500B |
| Machine Type: | Gab Bed Lathe | CNC Or Not: | Non-CNC |
| Keyword: | Metal Turning Lathe | Application: | Construction Machine |
| Distance Between Centers: | 1500 | Spindle Taper: | 90, 1:20 |
| Swing Over Bed: | 500 | Brand: | TIMEWAY |
| Color: | Customrized | Condition: | New |
| Spindle Bore(mm): | 82 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, United Kingdom, Italy, France, Germany, Philippines, Brazil, Peru, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, Colombia, Algeria, South Africa, Japan, Malaysia, Australia | Core Components: | Motor |
| Max. Turned Length (mm): | 1450 Mm | ||
Product Description
Product Description
Specification
Max. swing over bed | Φ500mm |
Max. swing over cross slide | Φ300mm |
Max. swing over gap | Φ710mm |
Gap length | 240mm |
Distance between centers | 1500mm |
Max. turning length | 1450mm |
Spindle bore | Φ82mm |
Spindle taper | Φ90, 1:20 |
Spindle nose | ISO 702/II No.8 |
Spindle speed range (steps) | 9-1600 (24) |
Top slide travel | 145mm |
Cross slide travel | 320mm |
Tool section size | 25x25mm |
X-axis rapid feed speed | 50HZ: 1.9; 60HZ: 2.3m/min |
Z-axis rapid feed speed | 50HZ: 4.5; 60HZ: 5.4m/min |
X-axis feed range | 0.012-2.73 (93)mm/r |
Z-axis feed range | 0.028-6.43 (93)mm/r |
Metric threads range (kinds) | 0.5-224 (48)mm |
Inch threads range (kinds) | 72-1/8 (46)TPI |
Module threads range (kinds) | 0.5-112 (42)MP |
Diametrical threads range (kinds) | 56-1/4 (45)DP |
Tailstock quill diameter | Φ75mm |
Tailstock quill travel | 150mm |
Tailstock quill taper | MT5 |
Main motor power | 7.5kw |
Rapid feed motor power | 0.3kw |
Coolant pump motor power | 0.12kw |
Machine length | 3132mm |
Machine width | 975mm |
Machine height | 1230mm |
Machine weight | 2300kg |
STANDARD ACCESSORIES

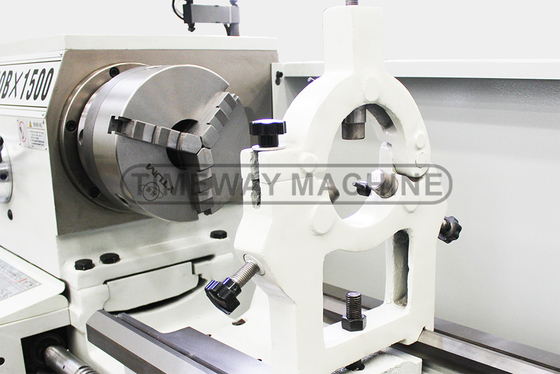

3-jaw chuck, 4-jaw chuck, Face plate, Dead center, Thread chasing dial, Splash guard, Oil gun, Work lamp,
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation
manual.
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation
manual.
OPTIONAL ACCESSORIES.
Quick change tool post, 2/3-axis digital readout, Living center, Taper turning attachment, Chuck guard,
Leadscrew guard, Tool post guard.
Leadscrew guard, Tool post guard.
