Radial Drilling Machine Z3040x12A for Max. Drilling Dia. mm 40 in Industrial Settings
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | Z3040x12A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Radial Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 40 | Range Of Spindle Speed(r.p.m): | 40 - 1500 R.p.m |
| CNC Or Not: | Normal | Dimension(L*W*H): | 1955x870x2540mm |
| Power (kW): | 3 | Weight (KG): | 2200 KG |
| Warranty: | 1 Year, 1 Year | Key Selling Points: | Energy Saving |
| Showroom Location: | Indonesia, Russia, Spain, Kenya, Argentina, UAE, Colombia, Romania, Bangladesh, Kyrgyzstan | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction Works , Energy & Mining |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine | Product Nane: | Radial Drilling Machine |
| Taper Of Spindle Bore: | Morse No.4 | After-sales Service Provided: | Online Support |
| After Warranty Service: | Online Support | Local Service Location: | Russia |
| Max. Diameter To Be Drilled: | 40 Mm | Port: | China Port |
Product Description
Product Overview

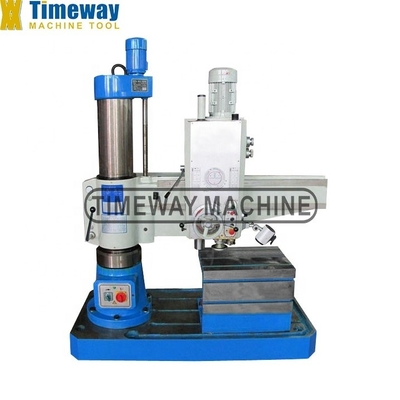

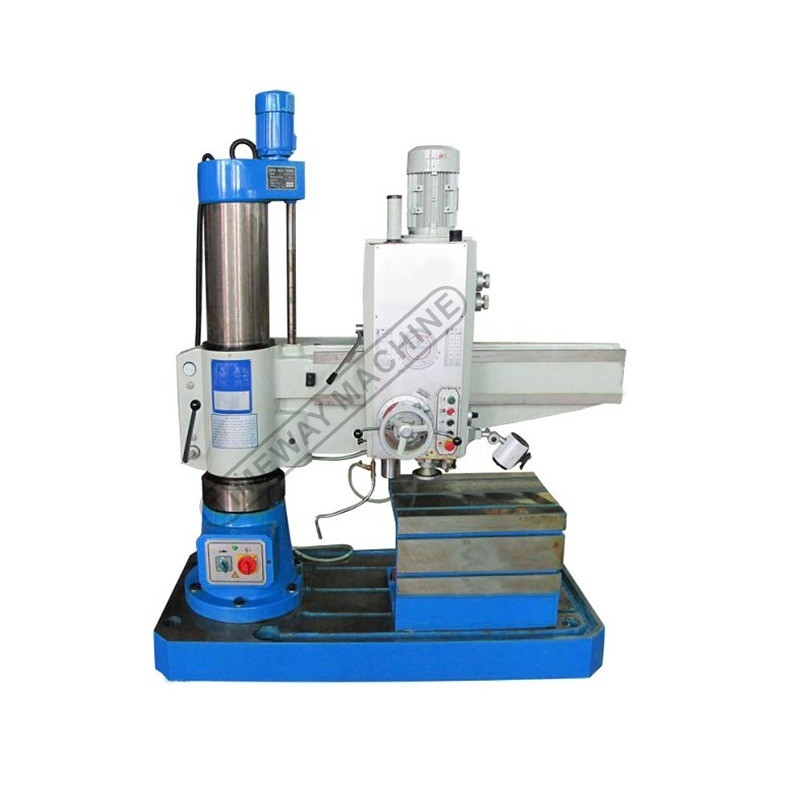

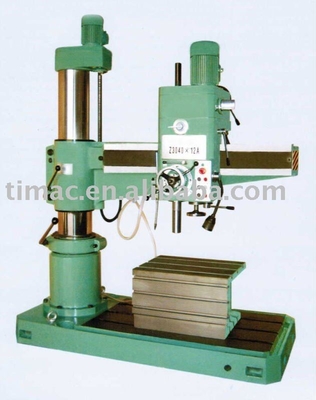

Radial Drilling Machine
The radial drilling machine, Z3040X12A, is a versatile machine with a wide range of applications, it has reasonable speed of revolution, it can be used on work pieces for drilling, expending, reaming, spot-facing, tapping and other operations.Equipped with suitable accessories, it can also be used for boring operation. It may be used in machine shops for serial production or single-piece production.
Features
1. The spindle speeds and feed change are affected by their separate mechanical levers, and therefore easily and accurately controlled. 2. The drilling depth is controlled by the stroke-set cutting mechanism. The feed can thus be automatically and accurately stopped, and the stroke setting is accurate. 3. Mechanical clamping devices are the spindle box and the radial arm. The clamping is reliable and the maintenance is convenient. 4. The movement of spindle box and the rotation of radial arm are easy and agile. 5. The elevation of arm are secondary-driven by gears and feed screw nut. Only after the lever is in the disengaged position, could the arm be raised or lowered. The operation is accurate and convenient. 6. Antifriction measures are adopted on the guide rails of radial arm, spindle sleeve and the roller guide surface of inner and outer rotation in order to prolong their service lives.
PRODUCT SPECIFICATIONS
Model | Z3040X12A | |||
Max. diameter to be drilled | 40 mm | |||
Distance from the spindle axis to the column | Max. | 1200 mm | ||
Distance from the spindle axis to the column | Min. | 265 mm | ||
Horizontal traverse of the spindle box | 935 mm | 935 mm | ||
Distance from spindle nose to working surface | Max. | 1200 mm | ||
Distance from spindle nose to working surface | Min. | 290 mm | ||
Taper of spindle bore | Morse No.4 | |||
Max. travel of spindle | 250 mm | |||
Series of spindle speeds | 8 steps | |||
Range of spindle speeds | 40-70-115-190-320-540-915-1500 r.p.m | |||
Series of spindle feeds | 4 steps | |||
Range of spindle feeds | 0.10, 0.16, 0.25, 0.42 mm/r | |||
Power of the main motor | 3 kw | |||
Overall dimensions (LXWXH) | 1955x870x2540 mm | |||
Net weight (approx) | 2200 kg | |||
Company Introduction
Package & Transportation
Customers Visited
Exhibition & Training
Export Cases
Our Team
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
