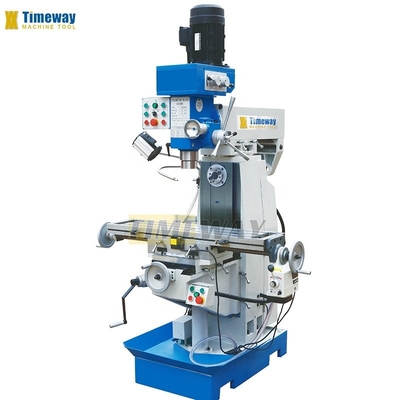

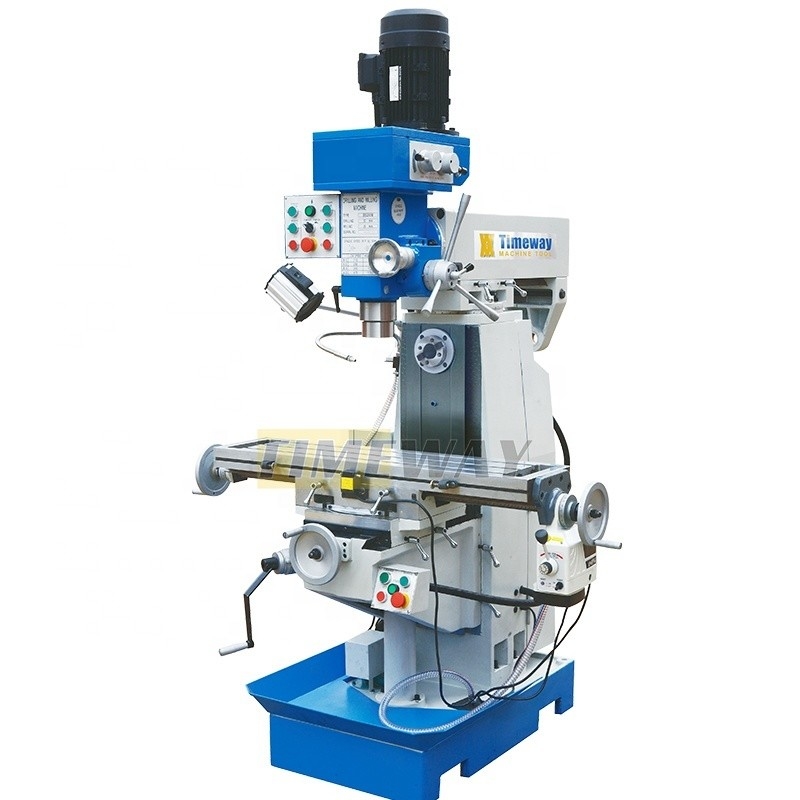

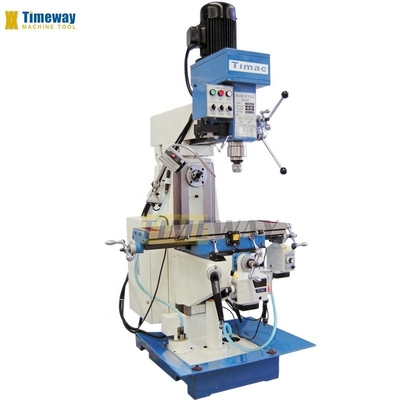

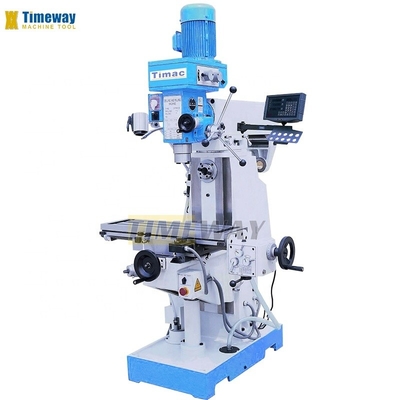

3 Axis Milling Machine for Light Duty Machining in Machinery Repair Shops
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | MD200H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
|
Detail Information |
|||
| Table Travel (X) (mm): | 400 Mm | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 230 Mm | Table Travel (Z) (mm): | 350 Mm |
| Spindle Taper: | R8/ISO30/MT4 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 0.85/0.15 Kw |
| Voltage: | 220/380V | Dimension(L*W*H): | 1290x1220x2100 Mm |
| Weight (KG): | 850 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Drilling Milling Machine |
| Keyword: | Milling Machine | Function: | Drilling Milling |
| Model: | MD200H | Table Size: | 240x800 Mm |
| CNC Or Not: | Normal | Spindle Speed Range: | 115-1750 Rpm |
| Machine Dimensions (LxWxH): | 1290x1220x2100 Mm | Net Weight/gross Weight: | 850/1000 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Kenya, Algeria, Kyrgyzstan, Nigeria, Egypt, United States, Peru, Mexico, Russia | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Gear, Other | Table Travel (mm): | 400X230X350 Mm |
| Port: | China Port | ||
Product Description
Products Description
* Hardened and ground table surface, guideways, and gears, and scrapped by hand. * The machine is a multi-functions drilling milling machine, can finish milling and drilling at one clamping workpiece. * For MD100 and MD100H, vertical and horizontal spindle are driven by V-belt to gain 8-steps speed. * For other MD series, vertical spindle gain 8steps speed by gears, horizontal spindle gain 8steps speed by V-belt. * Mill head swivels ±90°, quill movement by capstan handle, or quill micro-feed by hand-wheel. * Top beam can be rotated by ±180° on the column to horizontal machining. * X/Y/Z-axis feed by hand-wheel. Power feeder and gear-box feeder come optional for auto-feed. * Coolant system and work lamp and chip collection tray are included in standard equipment.
Specification | Unit | MD100H | MD200H | MD300H |
Table size | mm | 240x800 | 240x800 | 240x800 |
Longitudinal travel (X) | mm | 400 | 400 | 400 |
Cross travel (Y) | mm | 230 | 230 | 230 |
Vertical travel (Z) | mm | 350 | 350 | 350 |
T-slot No. and size and distance | mm | 3/14/60 | 3/14/60 | 3/14/60 |
Distance from vertical spindle to table | mm | 70-420 | 70-420 | 90-420 |
Max. drilling capacity | mm | 50 | 50 | 50 |
Vertical spindle taper | – | R8/ISO30 | R8/ISO30/MT4 | ISO40 |
Verical spindle quill travel | m | 120 | 120 | 120 |
Vertical spindle speed | rpm | 230-1825 (8) | 115-1750 (8) | 90-2000 (8) |
Vertical spindle motor power | kw | 0.85/1.5 | 0.85/1.5 | 1.5 |
Horizontal spindle taper | – | ISO30 | ISO30 | ISO30 |
Horizontal spindle speed | rpm | 60-1350 (8) | 60-1350 (8) | 60-1350 (8) |
Horizontal spindle motor power | kw | 1.5 | 1.5 | 2.2 |
Mill head swivel angle | ° | ±45° | ±45° | ±45° |
X/Y/Z-axis guide type | – | ▲▲▲ | ▲▲▲ | ▲▲▲ |
Machine dimensions (LxWxH) | mm | 1290x1220x2100 | 1290x1220x2100 | 1290x1220x2100 |
Net weight/gross weight | kg | 850/1000 | 850/1000 | 870/1000 |
· Draw bar · Coolant system · Chip tray · Work lamp · Lubrication system · Tools and Tool box · Operator manual | · 2/3-axis digital readout · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
