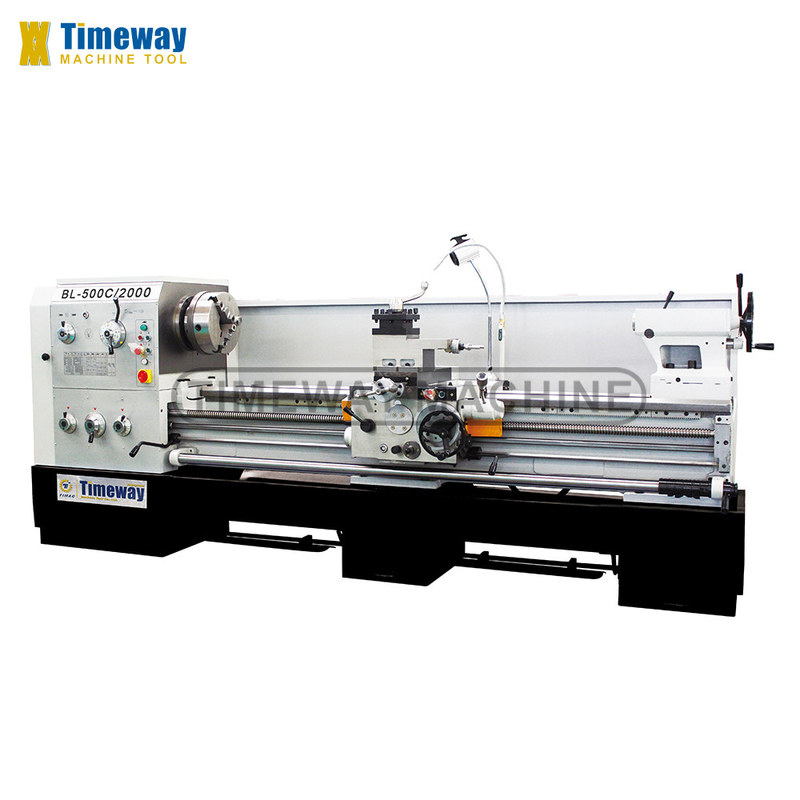

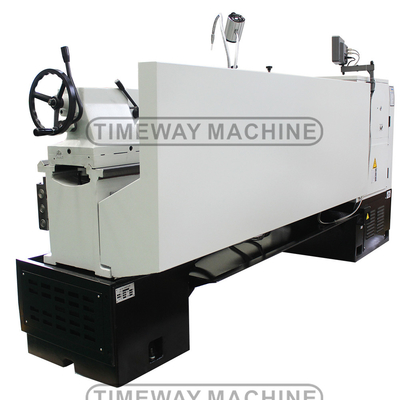

Metal Gap-bed Lathe BL-500C/2000 with 36-1600 r.p.m Spindle Speed and 500 Swing over Bed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BL-500C/2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,500.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1950 | Range Of Spindle Speed(r.p.m): | 36 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Dimension(L*W*H): | 3632 975 1270 | Weight (KG): | 2500 KG |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Gap-bed Lathe BL-500C/2000 | Machine Type: | Gab Bed Lathe |
| CNC Or Not: | Non-CNC | Application: | Metal Product |
| Distance Between Centers: | 2000 | Swing Over Bed: | 500 |
| Color: | Customrized | Spindle Taper: | 113(1:20) |
| Swing Over Cross Slide: | 300 | Spindle Nose: | ISO702/NO.8 |
| Condition: | New | Spindle Bore(mm): | 105 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, Morocco, South Korea, Chile, Colombia, Algeria, Romania, South Africa, Japan, Malaysia |
| Core Components: | Motor | Max. Turned Length (mm): | 1950 Mm |
Product Description
Product Description
Specification
Max. swing over bed | Φ500mm |
Max. swing over cross slide | Φ300mm |
Max. swing over gap | Φ710mm |
Gap length | 240mm |
Distance between centers | 2000mm |
Max. turning length | 1950mm |

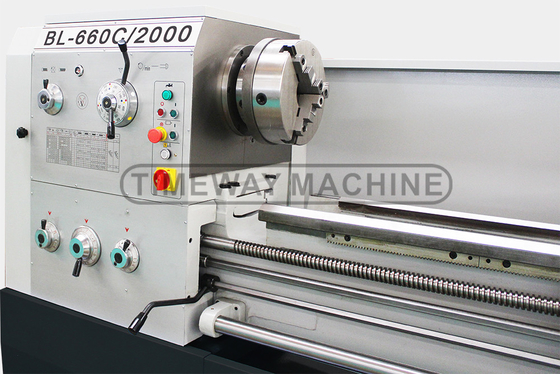

Spindle bore | Φ105mm |
Spindle taper | Φ113, 1:20 |
Spindle nose | ISO 702/II No.8 |
Spindle speed range (steps) | 36-1600 (12) |

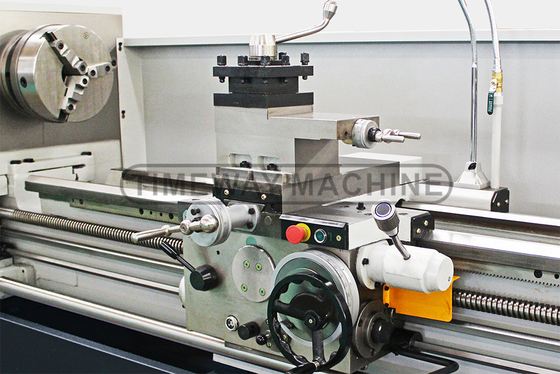

Top slide travel | 145mm |

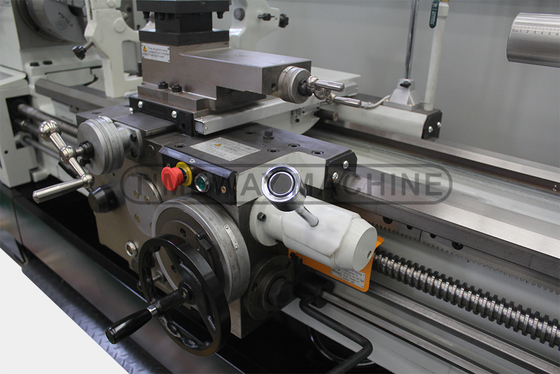

Cross slide travel | 320mm |
Tool section size | 25x25mm |
X-axis rapid feed speed | 50HZ: 1.9; 60HZ: 2.3m/min |
Z-axis rapid feed speed | 50HZ: 4.5; 60HZ: 5.4m/min |
X-axis feed range | 0.027-1.07 (65)mm/r |
Z-axis feed range | 0.63-2.52 (65)mm/r |
Metric threads range (kinds) | 1-14 (22)mm |
Inch threads range (kinds) | 28-2 (25)TPI |
Module threads range (kinds) | 0.5-7 (18)MP |
Diametrical threads range (kinds) | 56-4 (24)DP |

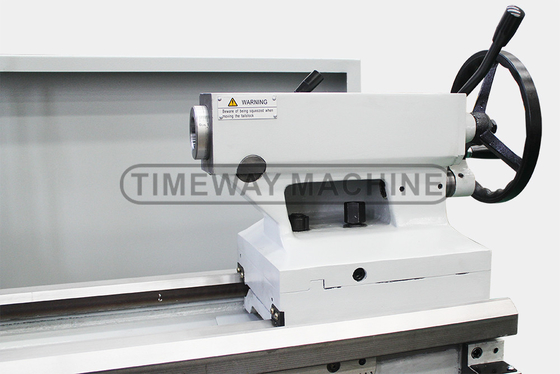

Tailstock quill diameter | Φ75mm |
Tailstock quill travel | 150mm |
Tailstock quill taper | MT5 |
Main motor power | 7.5kw |
Rapid feed motor power | 0.3kw |
Coolant pump motor power | 0.12kw |
Machine length | 3632mm |
Machine width | 975mm |
Machine height | 1270mm |
Machine weight | 2500kg |
STANDARD ACCESSORIES:
3-jaw chuck, 4-jaw chuck, Face plate, Dead center, Thread chasing dial, Splash guard, Oil gun, Work lamp,
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation
manual.
Cooling system, Steady rest, Follow rest, Change gears, Reducing sleeve, Foot brake, Leveling wedge, tool-box &tools, Operation
manual.
OPTIONAL ACCESSORIES:
Quick change tool post, 2/3-axis digital readout, Living center, Taper turning attachment, Chuck guard,
Leadscrew guard, Tool post guard.
Leadscrew guard, Tool post guard.
