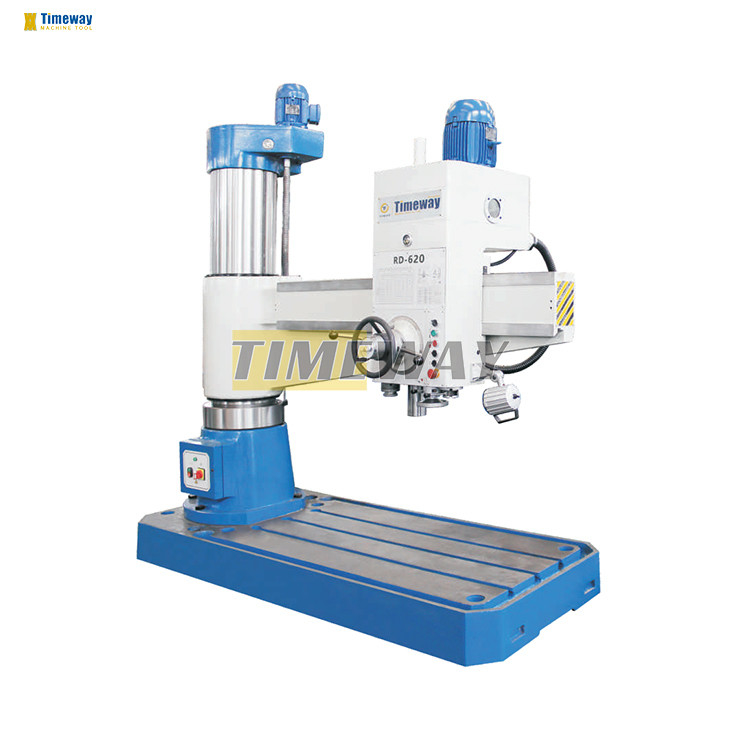

accuracy Large Radial Drilling Machine with Radial Arm Drill
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
| Model Number: | RD-620 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,290.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 63 | Range Of Spindle Speed(r.p.m): | 20 - 1600 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 1600rpm |
| Voltage: | 220V | Dimension(L*W*H): | 3110x1250x3150mm |
| Power (kW): | 5.5 | Weight (KG): | 6795 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Egypt, United Kingdom, United States, Italy, France, Philippines, Brazil, Peru, Russia, Spain, Thailand, Chile, UAE | Applicable Industries: | Machinery Repair Shops, Construction Works |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Product Name: | Radial Drilling Machine |
| Application: | Metal Processing | Machine Type: | Large Radial Drilling Machine |
| Model: | RD-620 | Motor: | 5.5KW |
| Color: | Customizable | After Warranty Service: | 1year |
| Max. Drilling Diameter: | 63mm For Mental Drilling | Spindle Speed(r/min): | 20-1600rpm |
Product Description
Products Description
Features:
1. Gather mechanical-electrical-hydraulic functions, use extensively.

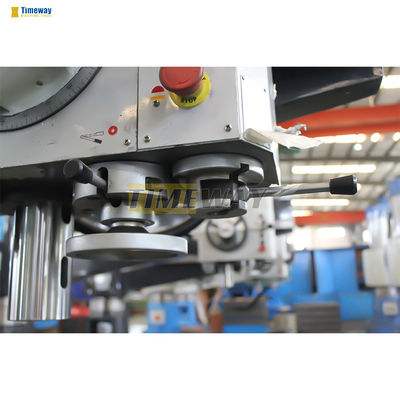

2. With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
3. With safe and reliable feed safety machine, all parts easy operation and change.

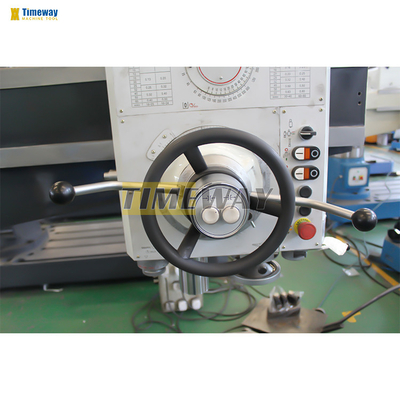

4. All controls centralized on the headstock easy operation and change. Clamping for all assemblies and speed change of spindle achieved by hydraulic, sensitive and reliable.
5. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
6. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
7. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
8. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

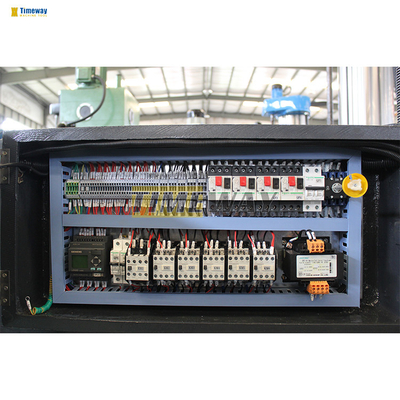

Importable electrical components with CE, CSA, UL standard.
Importable electrical components with CE, CSA, UL standard.
Specification | Unit | RD-620 |
Max. drilling capacity | mm | 63 |
Distance between spindle axis to column | mm | 450-2050 |
Distance between spindle nose to base | mm | 400-1600 |
Column dismeter | mm | 450 |
Spindle taper | - | MT5 |
Spindle travel | mm | 450 |
Spindle speed range | rpm | 20-1600 |
Spindle speed step | steps | 16 |
Spindle feed speed | mm/r | 0.04-3.2 |
Spindle feed speed step | - | 16 |
Rotary angle of rocker in horizontal plane | ° | 180 |
Table size | mm | 950x630x500 |
Base-table size | mm | 2900x1250x250 |
Main motor power | kw | 5.5 |
Overall dimensions (LxWxH) | mm | 3110x1250x3150 |
Machine weight | kg | 6795 |
- Box table - Drill chuck arbor - Morse taper drill sleeve - LED work lamp - Lifting motor - Coolant system - Hydraulic motor - Spindle protective cover - Tools & tool-box - Operation manual(English) | - Rotation worktable - Quill change collet - Machine vise - Keyless drill chuck |
