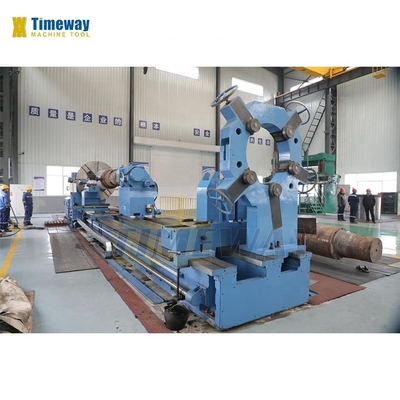

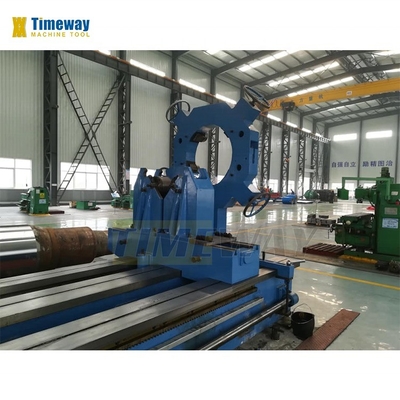

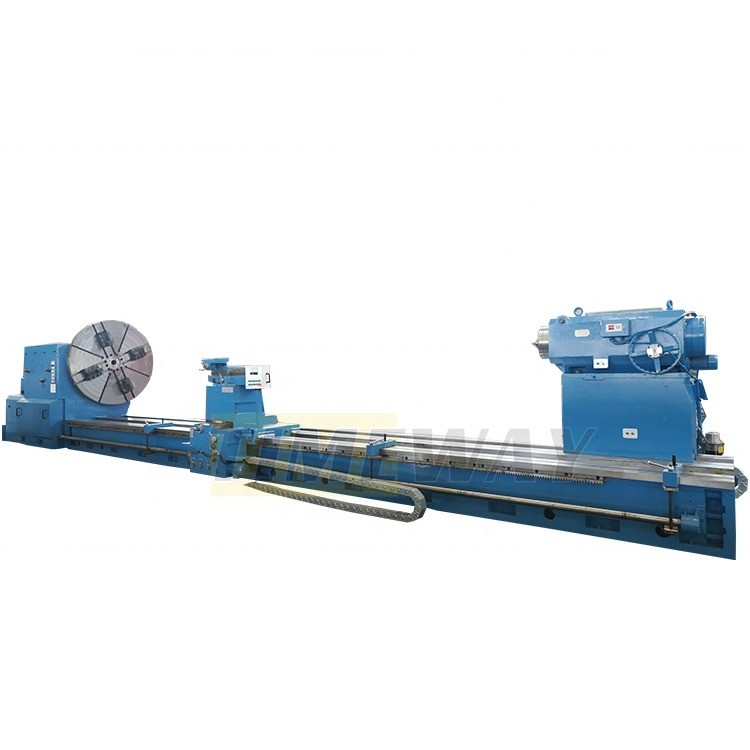

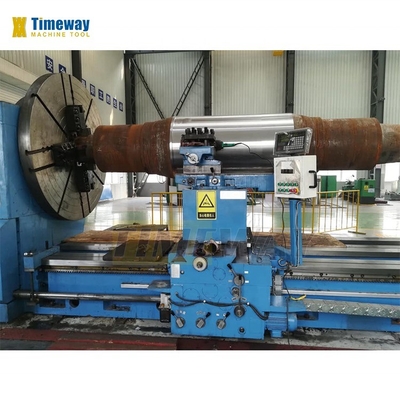

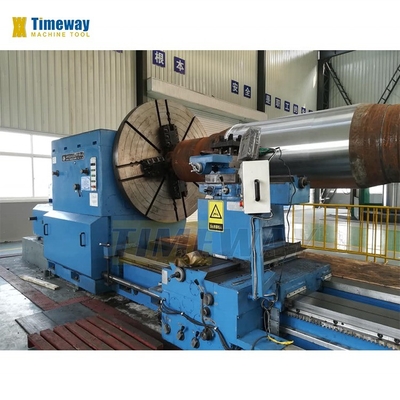

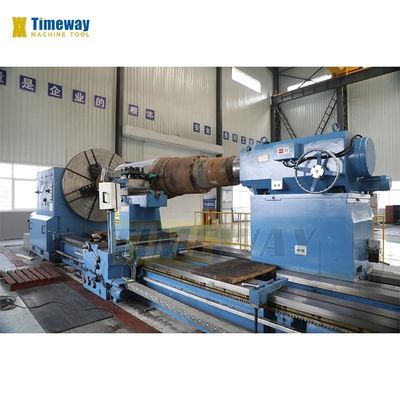

130mm Spindle Bore Heavy Duty Lathe Machine with High Capacity and Rapid Feed Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
| Model Number: | AL-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 11800 | Range Of Spindle Speed(r.p.m): | 3.15 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 400mm |
| Type: | Horizontal | Voltage: | 220V/380V |
| Dimension(L*W*H): | 15100x2150x1950 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 20tons | Spindle Taper: | ISO30 |
| Cutting Torque: | 200 N.m | Rapid Feed Speed(mm/min): | 935 - 3740 Mm/min |
| Feed Speed(mm/min): | 0.025 - 3 Mm/min | Tool Post Stations: | 8 |
| Swing Over Bed: | 1600mm | Swing Over Carriage: | 1210mm |
| Max. Length Of Workpiece: | 11800mm | Max. Turning Length: | 3800mm |
| Bed Width: | 970m | Max. Cutting Force: | 45000N |
| Spindle Nose: | A2-15 | Spindle Bore: | 130mm |
| Taper Hole Of Spindle: | Metric140 | Range Of Spindle Speeds: | Foreward:3.15-315, Reversal:3.5-291 |
Product Description
Products Description
Features:
1.This series horizontal lathe is suitable for processing large and medium-sized parts of castings, steels and non-ferrous metals.
It can turn outer
circle, inner hole, end face, grooving, drilling, boring and nesting, and can turn various internal and
external threads, such as metric, inch, modulus and diametrical.
2.The machine is solid body, strong in rigidity, high in power, wide in speed range, and capable of high-speed and powerful
cutting; When finished, the roundness error is not more than 0.01mm, the cylinder degree error is not more than 0.03mm in the
measuring length of 300mm.
3.The bed is made of cast structural bed. The internal ribs have a reasonable layout and high rigidity, and the guide rail adopts
an intermediate frequency quenching grinding process. On the sliding guide surface, the anti-crawling guide plate technology is
adopted, and the dynamic characteristics such as the friction damping coefficient are in an optimal state, thereby avoiding the
occurrence of low-speed
crawling.
4.The machine spindle bearing adopts famous brand products. The spindle box adopts a symmetrical structure to make the thermal
deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated
with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-row angular contact ball
bearing. Improve accuracy and increase rigidity.
5.The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise. The well-assembled spindle
has the characteristics of low temperature rise, small thermal deformation and high precision, which makes the spindle maintain
relatively stable accuracy during long-term operation.
6.High rigidity one piece type with 970mm bed span, which ensures the machine has strong stability and high precision.
7.Spindle standard through hole diameter is Ф130mm large hole, and adopt A2-15 spindle nose connection type, runout accuracy of
spindle is better.
8.The machine can be used to cut the short conical surface by the top tool post, and the long conical
surface can be turned by the top tool post and the longitudinal feed together.
9.High power, high rigidity and wide speed range for high speed and powerful cutting, speed range
of 3.15-315rpm with 33 speeds. The machine standard is equipped with electric moving tailstock, reduce operator labor intensity
and improve work efficiency.
11.The lathe standard loading capacity is 10000kg; Optional can be 12000kg
Specification | Unit | AL-1250C |
Max. swing over bed | mm | 1250 |
Max. swing over cross slide | mm | 865 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 970 |
Max. cutting force | N | 45000 |
Loading capacity | kg | 10000 (opt: 12000) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed range | rpm | Forward: 3.15-315, Reverse: 3.5-291 |
Spindle speed step | steps | Forward: 21,Reverse: 12 |
X/Z-axis feed kinds | kinds | 56 |
Feed range | mm/r | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 |
Metric threads range (kinds) | mm | 1-120 (44) |
Inch threads range (kinds) | TPI | 28-1/4 (31) |
Module threads range (kinds) | MP | 0.5-60 (45) |
Diametrical threads range (kinds) | DP | 1/2-56 (38) |
Cross slide travel | mm | 650 |
Top slide travel | mm | 300 |
Tool section size | mm | 45x45 |
Tool post swivel angle | ° | ±90° |
Rapid feed speed | mm/min | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 |
Tailstock quill diameter | mm | 220 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Main motor power | kw | 22 |
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- |
Machine width | mm | 1995 |
Machine height | mm | 2175 |
STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
4-jaw heavy independent chuck, Steady rest (over 3M length), Follow rest, Manual moving tailstock, Dead center, 4-station tool post, Cooling system, Work lamp, Tools & tool-box, Leveling wedge and bolts, Operation manual (English). | 2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Electric moving tailstock, Grinding attachment |
