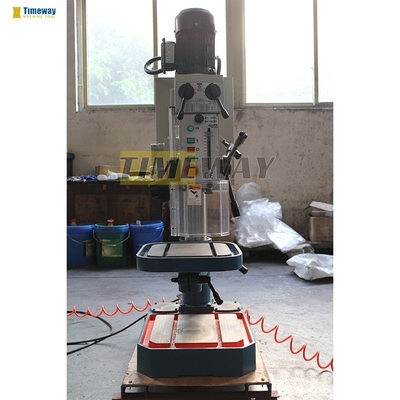

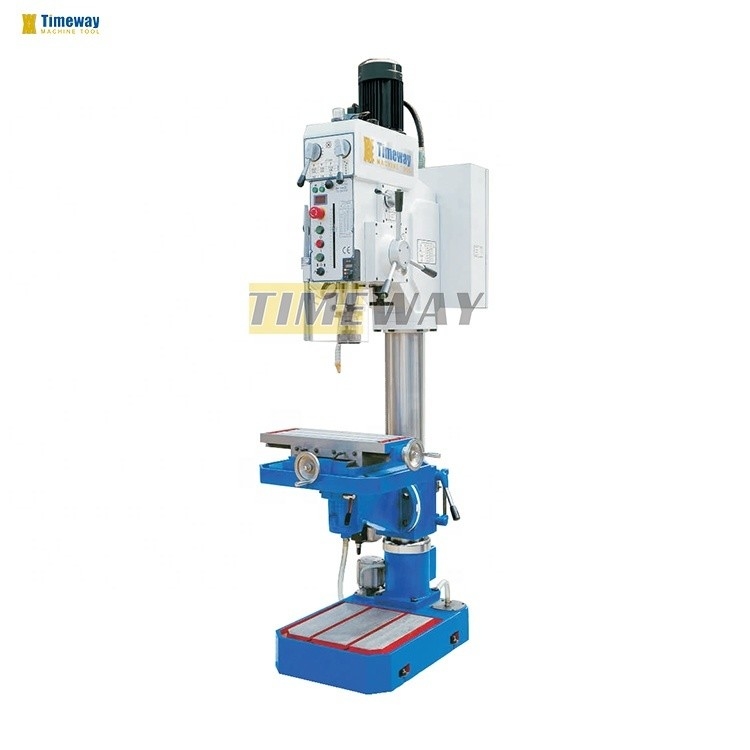

950x680x2405mm Mental Vertical Column Drilling Machine for High Precision Drilling
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
| Model Number: | DC-50A, DC-40A, DC-35A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,390.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 52 - 1400 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | 1400rpm |
| Voltage: | 220V | Dimension(L*W*H): | 950x680x2405mm |
| Power (kW): | 3 | Weight (KG): | 655 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Egypt, United Kingdom, United States, Italy, France, Philippines, Brazil, Peru, Russia, Spain, Thailand, Chile, UAE | Applicable Industries: | Machinery Repair Shops, Construction Works |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Product Name: | Radial Drilling Machine |
| Application: | Metal Processing | Machine Type: | Large Radial Drilling Machine |
| Model: | DC-50A; DC-40A;DC-35A | Motor: | 3KW |
| Color: | Customizable | After Warranty Service: | 1year |
| Max. Drilling Diameter: | 50mm For Mental Drilling | Spindle Speed(r/min): | 52-1400r/min |
| Port: | China Port | ||
Product Description
Products Description
Features:
1. 3-phase with voltage for 220V-575V collocation
.
2. All main parts are made with quality cast iron
.
3. Single-speed motor, 12 step gear shift; main motor with break
.
4. Unload tool device and coolant, fender device
.
5. Drilling diameter above 35mm (including 35mm) with milling function
.
6. Strength spindle, large diameter column
.
7. Worktable could be rotated and could be inclined ±45°
.
8. Motor driven lifting of worktable
.
9. Digital readout for the display of speed and cutting depth for drilling diameter above 35mm (including 35mm)
.
10. Micro feed is available; Trochoid thin oil lubrication
.
11. Superior quality of gears with hardened and lapped gears of surface
.
12. Importable electrical components with CE, CSA and UL standard
.
2. All main parts are made with quality cast iron
.
3. Single-speed motor, 12 step gear shift; main motor with break
.
4. Unload tool device and coolant, fender device
.
5. Drilling diameter above 35mm (including 35mm) with milling function
.
6. Strength spindle, large diameter column
.
7. Worktable could be rotated and could be inclined ±45°
.
8. Motor driven lifting of worktable
.
9. Digital readout for the display of speed and cutting depth for drilling diameter above 35mm (including 35mm)
.
10. Micro feed is available; Trochoid thin oil lubrication
.
11. Superior quality of gears with hardened and lapped gears of surface
.
12. Importable electrical components with CE, CSA and UL standard
Specification | Unit | DC-35A | DC-40A | DC-50A |
Max. drilling & tapping dia.(steel) | mm | 35 | 40 | 50 |
Distance between spindle axis to column | mm | 340 | 360 | 360 |
Distance between spindle nose to table/base | mm | 665/1195 | 590/1175 | 590/1170 |
Max. milling cutter dia. | mm | 80 | 80 | 80 |
Swivel angle of table | ° | 45 | 45 | 45 |
Spindle taper | - | MT4 | MT4 | MT4 |
Spindle travel | mm | 190 | 200 | 240 |
Spindle speed range | rpm | 76-2065 | 52-1400 | 52-1400 |
Spindle speed step | steps | 12 | 12 | 12 |
Spindle feed speed | mm/r | 0.1,0.2,0.3 | 0.1,0.2,0.3 | 0.1,0.2,0.3 |
Spindle feed step | stpes | 3 | 4 | 4 |
Column dia. | mm | 140 | 160 | 180 |
Table size | mm | 520x440 | 580x460 | 580x460 |
Main motor power | kw | 1.5 | 2.2 | 3 |
Overall dimensions (LxWxH) | mm | 849x545x2290 | 940x680x2405 | 950x680x2405 |
NW/GW | kg | 565/615 | 620/675 | 655/710 |
- Key type drill chuck - Connecting bar for drill chuck - Shaft sleeve for taper shank tool - Wedge for taper shank tool - Double open end spanner - Operation manual(English) | - Collet - Milling cutter shank - Cross worktable - 125mm precision vice |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
