Metal Processing Vertical Drilling Machine with Precise Drilling Capabilities
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY TIMAC |
| Model Number: | Z2 Z3 Z4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $3,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Pillar Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 30 | Range Of Spindle Speed(r.p.m): | 100 - 1800 R.p.m |
| CNC Or Not: | Normal | Voltage: | 220/380V |
| Dimension(L*W*H): | 844x558x1805 | Power (kW): | 1.5 |
| Weight (KG): | 660 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Showroom Location: | Germany, Viet Nam, India, Spain, Thailand, Algeria, Romania, Bangladesh, Uzbekistan |
| Applicable Industries: | Manufacturing Plant, Other | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Pump, Gear, Motor |
| Type: | Vertical Drilling Machine | Max. Drill Diameter: | 30mm |
| Product Name: | Pillar Drilling Machine Vertical | Keyword: | Metal Vertical Drilling Machine |
| Name: | Vertical Drilling Machine | Machine Type: | Vertical Metal Drilling Machine |
| Color: | Customizable | Key Selling Point: | Competitive Price |
| After-sales Service Provided: | Online Support | Application: | Metal Processing |
| Port: | China Port | ||
Product Description
Product Description

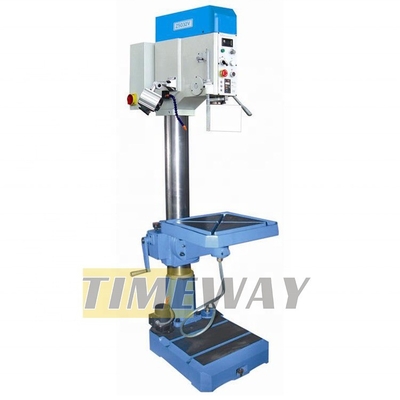

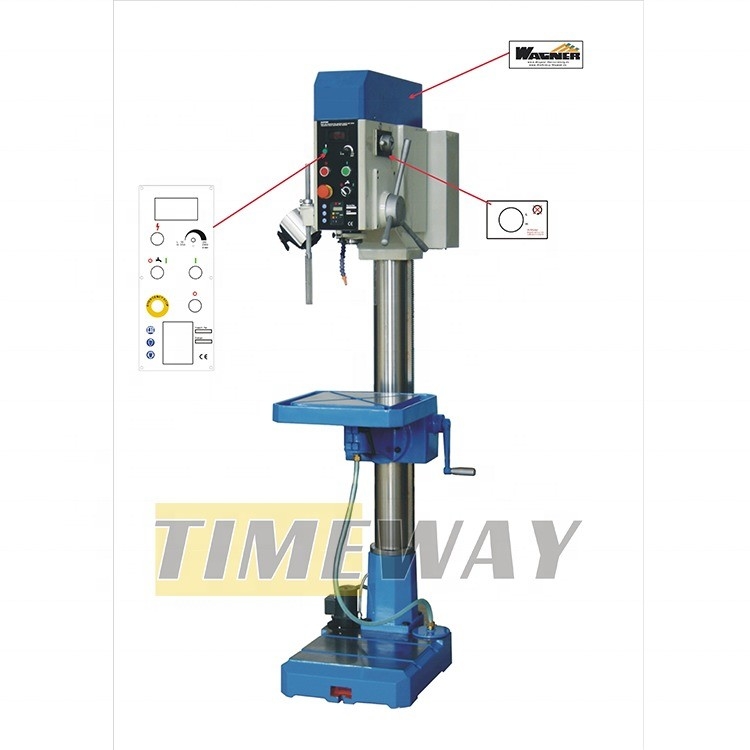

Vertical Drilling Machine
Specification
Model | Unit | Z2 | Z3 | Z4 |
Max. drilling capacity | mm | 20 | 25 | 30 |
Max. tapping capacity | mm | 12 | 14 | 20 |
Taper of spindle hole | MT2 | MT3 | MT3 | |
Spindle speed | r.p.m | 100-1500 | 100-1800 | H:200-1800 L:100-900 |
Distance from spindle axis to column surface | mm | 250 | 280 | 310 |
Max.distance from spindle nose to worktable | mm | 380 | 460 | 600 |
Max. distance from spindle nose to base surface | mm | 750 | 930 | 1160 |
Dimension of workable surface | mm | 320x360 | 400x350 | 440x390 |
Diameter of column | mm | 90 | 110 | 120 |
Overall height | mm | 1218 | 1450 | 1805 |
Output motor | w | 1000 | 1500 | 1500 |
T slot size | mm | 12 | 14 | 14 |
Overall size:(LxBxH) | mm | 680x386x1218 | 740x450x1450 | 844x558x1805 |
Packing size:(LxBxH) | mm | 805x570x1395 | 860x605x1615 | 900x640x2010 |
N.W./G.W. | kg | 230/300 | 330/400 | 580/660 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
