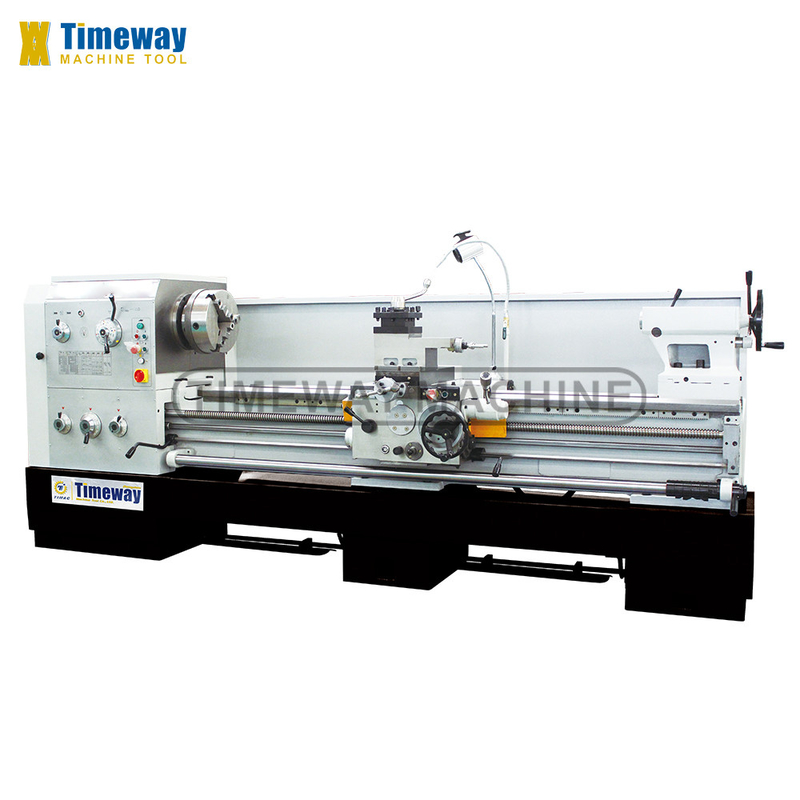

BL-800C Manual Gap Bed Lathe Machine with 4 Tool Post Stations Customrized Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BL-800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,855.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 30 - 1400 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Weight (KG): | 3000 KG | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 2050 |
| Spindle Taper: | Other | Cutting Torque: | 100 N.m |
| Rapid Feed Speed(mm/min): | 36 - 1600 Mm/min | Feed Speed(mm/min): | 30 - 1400 Mm/min |

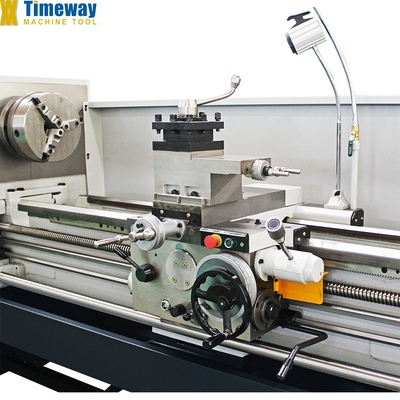

| Tool Post Stations: | 4 | Max. Swing Over Bed: | 800mm |
| Max. Turning Length: | 1850/2850mm | Gap Length: | 240mm |
| Name: | Gap Bed Lathe Machine | Precision: | National Standard |
| Color: | Customrized | Function: | Machining Metal |
| Spindle Bore: | 105mm | Main Motor Power: | 7.5kw |
| Keyword: | Metal Turning Lathe | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual(English)
OPTIONAL ACCESSORIES:
Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION | UNIT | BL-800C |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 560 |
Max. swing over gap | mm | 1000 |
Gap length | mm | 240 |
Distance between centers | mm | 2000/3000 |
Max. turning length | mm | 1850/2850 |
Spindle bore | mm | Φ105 |
Spindle taper | - | Φ113, 1:20 |
Spindle nose | - | ISO 702/II No.8 |
Spindle speed range (steps) | rpm | 30-1400 (12) |
Top slide travel | mm | 145 |
Cross slide travel | mm | 320 |
Tool section size | mm | 25x25 |
X-axis rapid feed speed | m/min | 50HZ: 1.9; 60HZ: 2.3 |
Z-axis rapid feed speed | m/min | 50HZ: 4.5; 60HZ: 5.4 |
X-axis feed range | mm/r | 0.027-1.07 (65) |
Z-axis feed range | mm/r | 0.63-2.52 (65) |
Metric threads range (kinds) | mm | 1-14 (22) |
Inch threads range (kinds) | TPI | 28-2 (25) |
Module threads range (kinds) | MP | 0.5-7 (18) |
Diametrical threads range (kinds) | DP | 56-4 (24) |

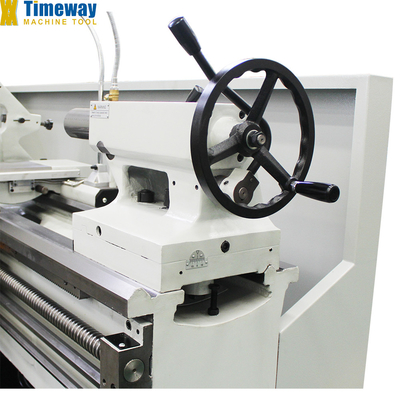

Tailstock quill diameter | mm | Φ90 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Rapid feed motor power | kw | 0.3 |
Coolant pump motor power | kw | 0.12 |
Machine length | mm | 3365/4365 |
Machine width | mm | 1340 |
Machine height | mm | 1490 |
Machine weight | kg | 3000/3200 |
