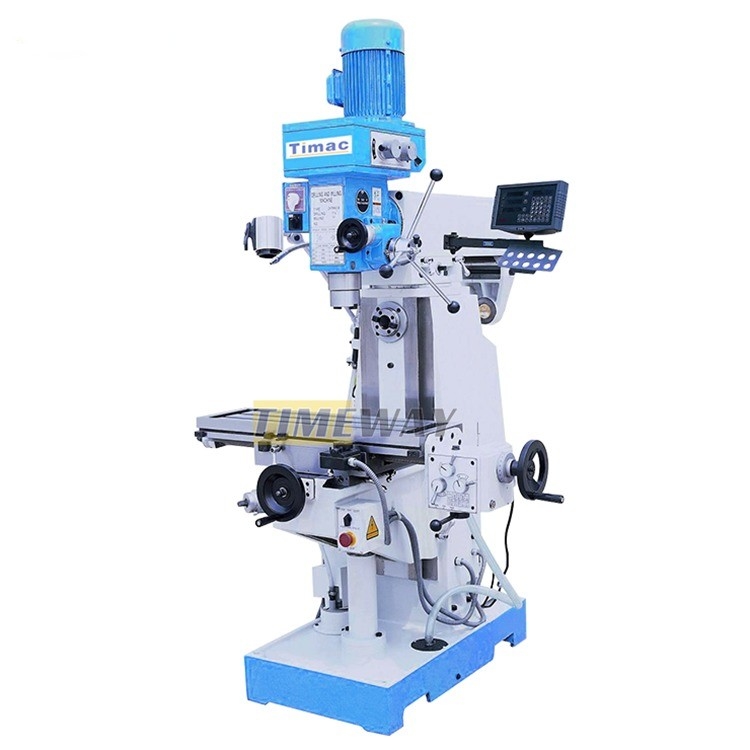

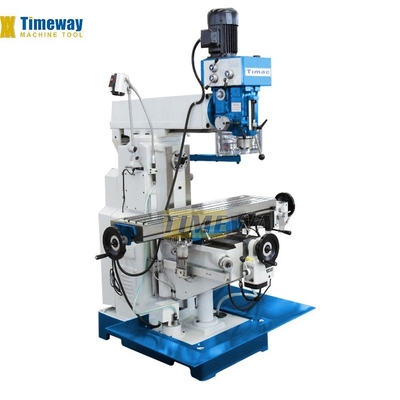

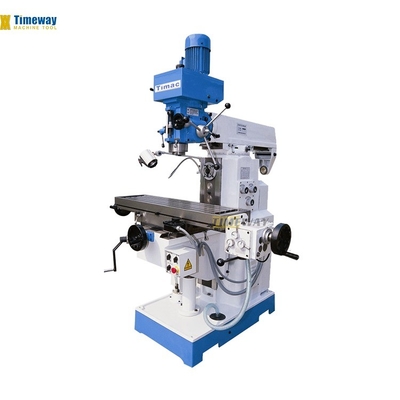

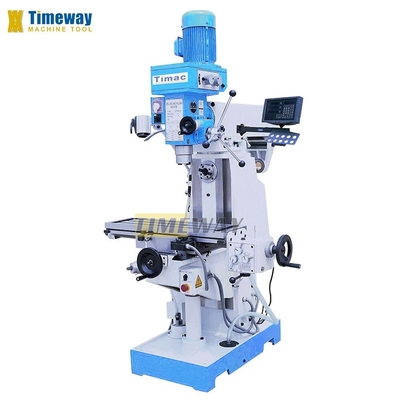

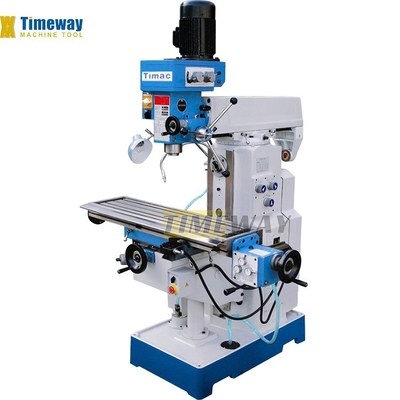

Opitional Vertical Drilling Milling Machine with 400mm Table Travel and Variable Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | MD300H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $62,350.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 400 | Machining Capacity: | Light Duty, Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 230 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO30 | Range Of Spindle Speed(r.p.m): | 90 - 2000 R.p.m |
| Type: | VERTICAL | Voltage: | 220/380V |
| Weight (KG): | 1000 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Drilling Milling Machine |
| Machine Type: | Vertical Drilling Milling | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Metal | Function: | Drilling Milling |
| Application: | Boring Machine | Precision: | High Precision Universal Milling Machine |
| Processing: | Mechanical Processing | Color: | Opitional |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Advertising Company | Showroom Location: | South Africa, Kyrgyzstan, Turkey, United Kingdom, Germany |
| Core Components: | Motor, Gear, PLC, Pressure Vessel, Engine, Gearbox | Port: | China Port |
Product Description
Product Description
Specification
Specifications | Unit | MD300H |
Table size | mm | 240x800 |
Longitudinal travel (X) | mm | 400 |
Cross travel (Y) | mm | 230 |
Vertical travel (Z) | mm | 350 |
T-slot No. and size and distance | mm | 3/14/60 |
Distance from vertical spindle to table | mm | 90-420 |
Max. drilling capacity | mm | 50 |
Vertical spindle taper | - | ISO40 |
Verical spindle quill travel | mm | 120 |
Vertical spindle speed | rpm | 90-2000 (8) |
Vertical spindle motor power | kw | 1.5 |
Horizontal spindle taper | - | ISO30 |
Horizontal spindle speed | rpm | 60-1350 (8) |
Horizontal spindle motor power | kw | 2.2 |
Mill head swivel angle | ° | ±45° |
Machine dimensions (LxWxH) | mm | 1290x1220x2100 |
Net weight/gross weight | kg | 870/1000 |
