Variable Speed and 3 Axes Vertical Drilling Milling Machine for High Accuracy in 2021
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | MD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,823.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Light Duty, Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 260 | Table Travel (Z) (mm): | 300 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | Optional | Dimension(L*W*H): | 1660*1340*2130 |
| Weight (KG): | 1250 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Drilling Milling Machine |
| Machine Type: | Vertical Drilling Milling | Product Name: | Drilling Milling Machines |
| Keyword: | Milling Machine Metal | Application: | Metal Milling Drilling Tapping |
| Processing: | Metal Vertical Milling Machine | Color: | Opitional |
| Precision: | High Precision Universal Milling Machine | Table Size: | 1200x280mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | None |
| Core Components: | Motor, Engine | Table Travel (mm): | 280*1120 |
| Year: | 2021 | Port: | China Port |
Product Description
Product Description

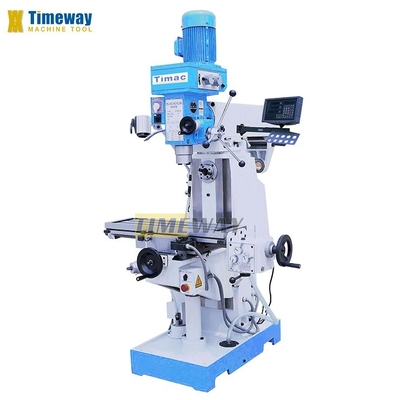

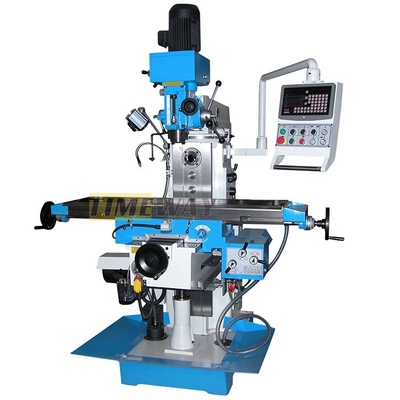

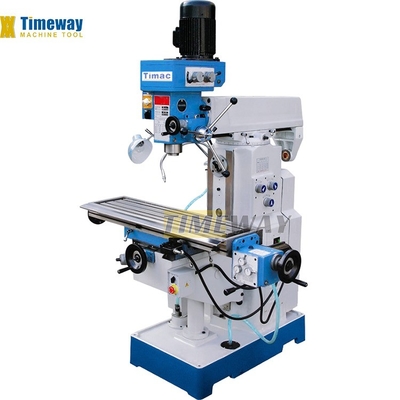

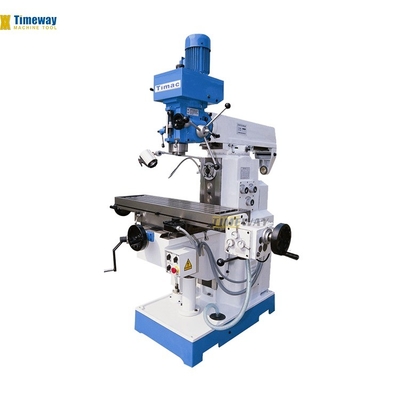

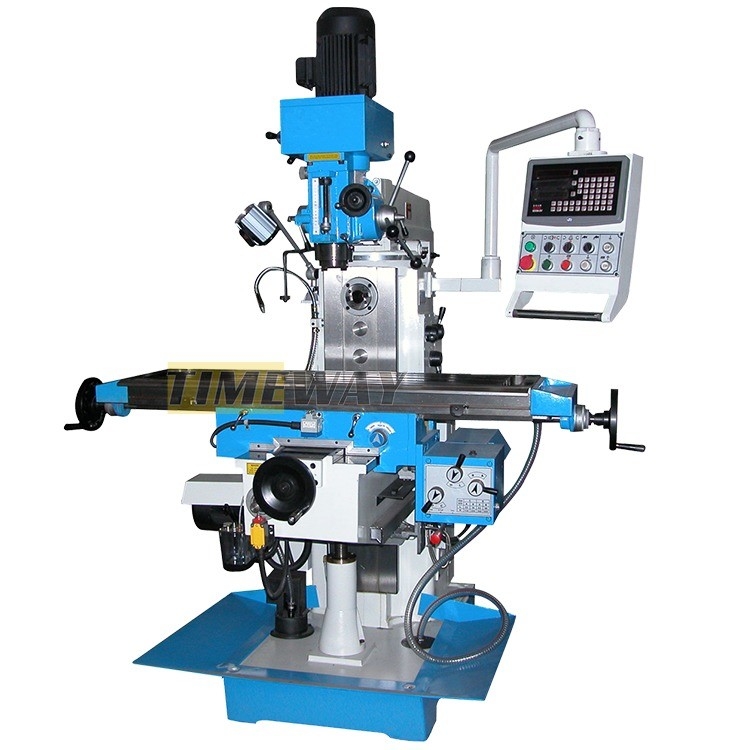

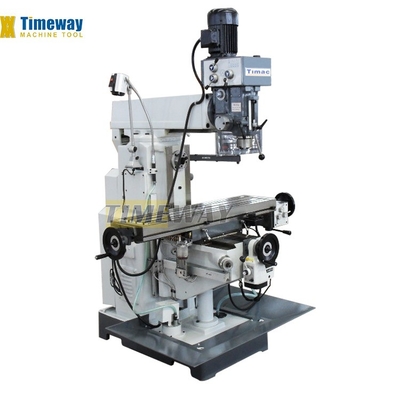

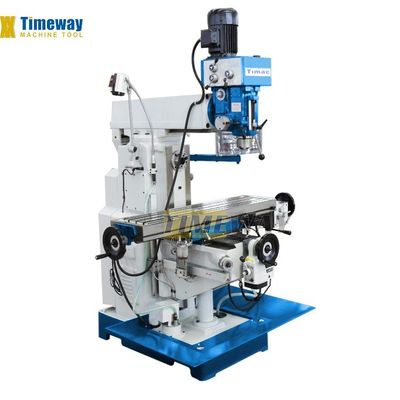

Milling & Drilling Machine
Specification
Specifications | Unit | MD400 | MD500 |
Table size | mm | 280x1120/280x1200 | 280x1120/280x1200 |
Longitudinal travel (X) | mm | 600 | 600 |
Cross travel (Y) | mm | 260 | 260 |
Vertical travel (Z) | mm | 300 | 300 |
T-slot No. and size and distance | mm | 3/14/70 | 3/14/70 |
Loading capacity | kg | 200 | 200 |
Max. drilling capacity | mm | 50 | 50 |
Max. tapping capacity | mm | M16 | M16 |
Distance from vertical spindle to table | mm | 90-410 | 110-410 |
Distance from vertical spindle to column | mm | 200-700 | 200-700 |
Vertical spindle taper | - | MT4 | ISO40 |
Verical spindle quill travel | mm | 120 | 120 |
Vertical spindle quill automatic feed | mm/r | - | 0.08/0.15/0.25 |
Vertical spindle speed | rpm | 115-1750 (8) | 90-2000 (8) |
Vertical spindle motor power | kw | 0.85/1.5 | 2.2 |
Distance from horizontal spindle center to table | mm | 0-300 | 0-300 |
Horizontal spindle taper | - | ISO40 | ISO40 |
Horizontal spindle speed | rpm | 40-1300 (12) | 40-1300 (12) |
Horizontal spindle motor power | kw | 2.2 | 2.2 |
X/Y-axis feed speed | mm/min | X: 24-720 | X: 36-1100 |
Z-axis rapid feed speed | mm/min | - | - |
Mill head swivel angle | ° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 1660x1340x2130 | 1660x1340x2130 |
Net weight/gross weight | kg | 1250/1350 | 1300/1380 |
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Want to Know more details about this product
