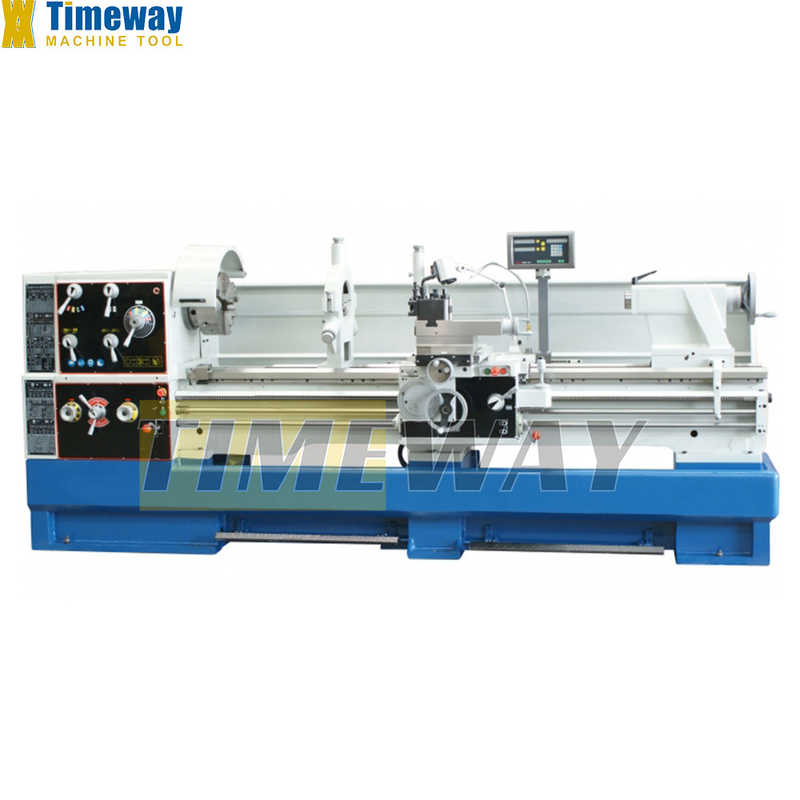

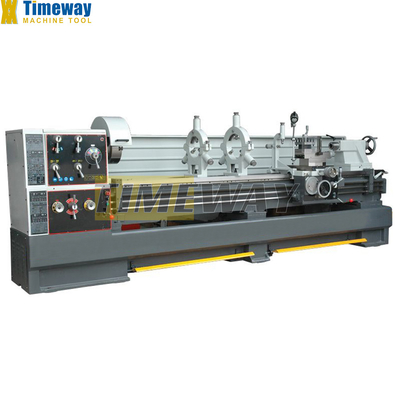

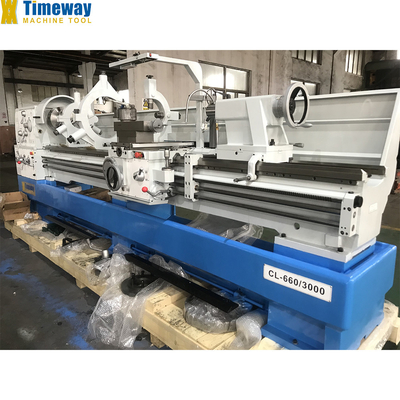

CL-660 Manual Gap Bed Lathe Machine 321/371/471x123x160cm 440mm Swing over Cross Slide
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CL-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 25 - 1600 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Dimension(L*W*H): | 321/371/471x123x160cm | Weight (KG): | 3065 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 2500 | Spindle Taper: | Metric 113 |
| Cutting Torque: | 100 N.m | Rapid Feed Speed(mm/min): | 25 - 1600 Mm/min |
| Feed Speed(mm/min): | 25 - 1600 Mm/min | Tool Post Stations: | 4 |
| Max. Swing Over Bed: | 660mm | Max. Swing Over Cross Slide: | 440mm |
| Gap Length: | 250mm | Machine Type: | Gab Bed Lathe |
| Cross Slide Travel: | 368mm | CNC Or Not: | Nomal |
| Color: | Customrized | Name: | Gap-bed Lathe |
| Precision: | High Precision High Accuracy | Processing Types: | Metal Processing Machine |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
3-jaw chuck
4-jaw chuck
Face plate
Dead center
Thread chasing dial
Splash guard
Oil gun
Work lamp
Cooling system
Steady rest
Follow rest
Change gears
Reducing sleeve
Foot brake
Leveling wedge
Tool-box &tools
Operation manual(English)
OPTIONAL ACCESSORIES:
Quick change tool post
2/3-axis digital readout
Living center
Taper turning attachment
Chuck guard
Leadscrew guard
Tool post guard
Specification
SPECIFICATION | UNIT | CL-660 |
Max. swing over bed | mm | 660 |
Max. swing over cross slide | mm | 440 |
Max. swing over gap | mm | 900 |
Distance between centers | mm | 1500/ 2000/3000 |
Gap length | mm | 250 |
Bed width | mm | 400 |
Spindle nose | - | D1-8 |
Spindle bore | mm | 105 |
Spindle taper | - | Metric 113 |
Spindle speed range (steps) | rpm | 25-1600 |
Top slide travel | mm | 230 |
Cross slide travel | mm | 368 |
Tool section size | mm | 25x25 |
Leadscrew | - | 12mm or 2TPI |
Longitudinal feed range | mm/rev | 0.044-1.48 |
Cross feed range | mm/rev | 0.022-0.74 |
Metric threads range (kinds) | mm | 0.45-120 (54) |
Inch threads range (kinds) | TPI | 7/16-80 (54) |
Diametrical threads range (kinds) | DP | 7/8-160 (42) |
Module threads range (kinds) | MP | 0.25-60 (46) |
Tailstock quill diameter | mm | Φ90 |
Tailstock quill travel | mm | 235 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 7.5 |
Coolant pump motor power | kw | 0.1 |
Machine dimensions (LxWxH) | mm | 321/371/471x123x160 |
Packing size (LxWxH) | mm | 324/374/474/x114x184 |
Net weight | kg | 3065/3345/3710 |
Gross weight | kg | 3535/3835/4310 |
