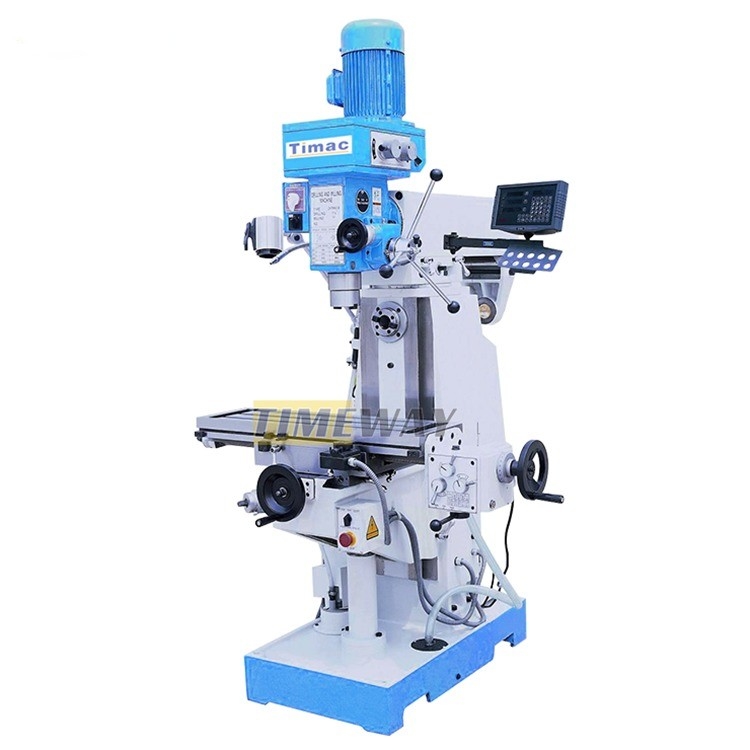

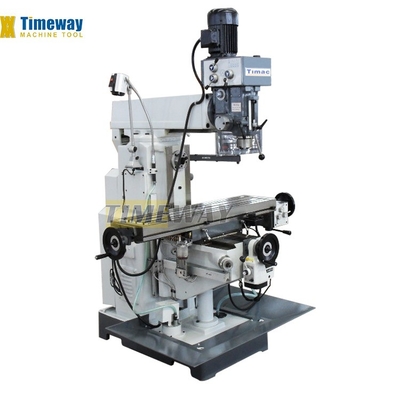

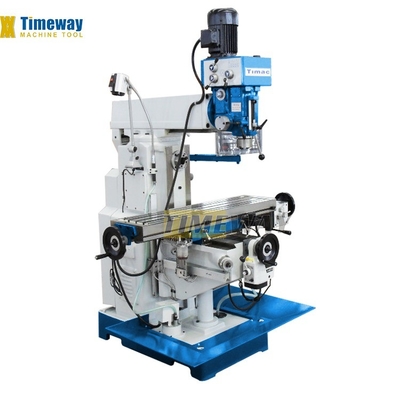

Vertical Drilling Milling Machine with 1.5kW Spindle Motor Power and 400mm Table Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | MD200H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 400 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 230 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 1.5 |
| Voltage: | Optional | Dimension(L*W*H): | 1290*1220*2100 |
| Weight (KG): | 1260 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Drilling Milling Machine |
| Machine Type: | Vertical Drilling Milling | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Manual | Function: | Drilling Milling |
| Application: | Metal Machining | Precision: | High Precision |
| Processing: | Mechanical Processing | CNC Or Not: | Normal Milling Machine |
| Color: | Custom-made | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | None | Core Components: | Motor, Engine |
| Table Travel (mm): | 400*230*350 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description
Milling & Drilling Machine
Features:
---Hardened and ground table surface, guideways, and gears, and scrapped by hand.
---The machine is a multi-functions drilling milling machine, can finish milling and drilling at one clamping workpiece.
---For MD100 and MD100H, vertical and horizontal spindle are driven by V-belt to gain 8-steps speed.
---For other MD series, vertical spindle gain 8steps speed by gears, horizontal spindle gain 8steps speed by V-belt.

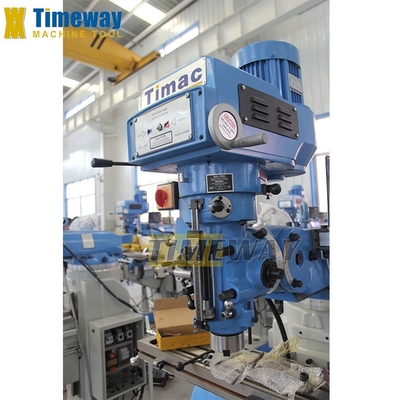

---Mill head swivels ±90°, quill movement by capstan handle, or quill micro-feed by hand-wheel.
---Top beam can be rotated by ±180° on the column to horizontal machining.
---X/Y/Z-axis feed by hand-wheel. Power feeder and gear-box feeder come optional for auto-feed.
---Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.

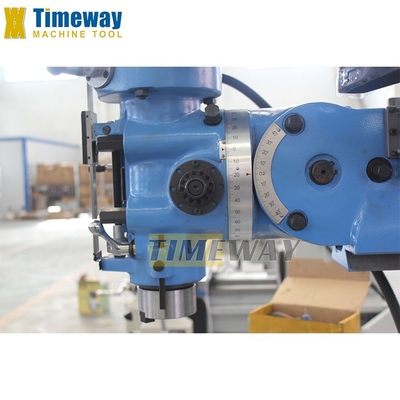

---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
---Hardened and ground table surface, guideways, and gears, and scrapped by hand.
---The machine is a multi-functions drilling milling machine, can finish milling and drilling at one clamping workpiece.
---For MD100 and MD100H, vertical and horizontal spindle are driven by V-belt to gain 8-steps speed.
---For other MD series, vertical spindle gain 8steps speed by gears, horizontal spindle gain 8steps speed by V-belt.
---Mill head swivels ±90°, quill movement by capstan handle, or quill micro-feed by hand-wheel.
---Top beam can be rotated by ±180° on the column to horizontal machining.
---X/Y/Z-axis feed by hand-wheel. Power feeder and gear-box feeder come optional for auto-feed.
---Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.
---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
Specification
Specifications | Unit | MD100H | MD200H |
Table size | mm | 240x800 | 240x800 |
Longitudinal travel (X) | mm | 400 | 400 |
Cross travel (Y) | mm | 230 | 230 |
Vertical travel (Z) | mm | 350 | 350 |
T-slot No. and size and distance | mm | 3/14/60 | 3/14/60 |
Distance from vertical spindle to table | mm | 70-420 | 70-420 |
Max. drilling capacity | mm | 50 | 50 |
Vertical spindle taper | - | R8/ISO30 | R8/ISO30/MT4 |
Verical spindle quill travel | mm | 120 | 120 |
Vertical spindle speed | rpm | 230-1825 (8) | 115-1750 (8) |
Vertical spindle motor power | kw | 0.85/1.5 | 0.85/1.5 |
Horizontal spindle taper | - | ISO30 | ISO30 |
Horizontal spindle speed | rpm | 60-1350 (8) | 60-1350 (8) |
Horizontal spindle motor power | kw | 1.5 | 1.5 |
Mill head swivel angle | ° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 1290x1220x2100 | 1290x1220x2100 |
Net weight/gross weight | kg | 850/1000 | 850/1000 |
