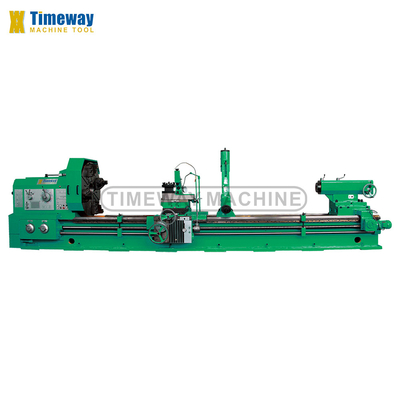

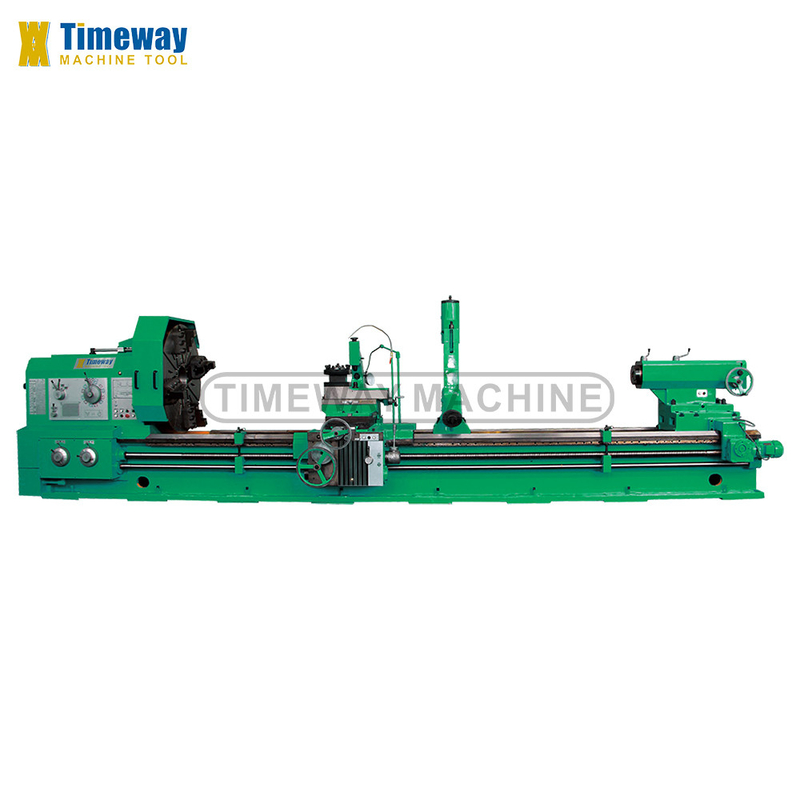

8000mm Distance between Centers Max. Swing 1600 Heavy Duty Horizontal Lathe for Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AL-1600C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 12000, 10000, 6000, 5000, 4000, 3000, 8000 | Range Of Spindle Speed(r.p.m): | 3.5 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 8020 1995 2525 | Weight (KG): | 18000 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Other, Easy To Operate, Digital |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 10000 | Spindle Taper: | Metric140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 3740 Mm/min |
| Feed Speed(mm/min): | 0 - 1870 Mm/min | Tool Post Stations: | 4 |
| Name: | Bench Lathe | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | Keyword: | Universal Metal Lathe |
| After-sales Service Provided: | Service Machinery Overseas | Function: | Machining Metal |
| Automatic Grade: | Normal | Product Type: | Horizontal Universal Lathe |
| Distance Between Centers: | 8000mm | Model: | AL-1600C |
Product Description
Product Description
Specification
Max. swing over bed | 1600mm |
Max. swing over cross slide | 1210mm |
Distance between centers | 3000/4000/5000/6000/8000/10000/12000/-mm |
Max. turning length | 2800/3800/4800/5800/7800/9800/11800mm |
Bed width | 970mm |
Max. cutting force | 45000N |
Loading capacity | 10000 (opt: 12000)kg |
Spindle nose | A2-15 |
Spindle bore | 130mm |
Spindle taper | Metric 140 |
Spindle speed range | Forward: 3.15-315, Reverse: 3.5-291 rpm |
Spindle speed step | Forward: 21,Reverse: 12 steps |
X/Z-axis feed kinds | 56 kinds |
Feed range | Longitudinal: 0.1-12; Cross: 0.05-6; Top tool-post: 0.025-3 mm/r |
Metric threads range (kinds) | 1-120 (44) mm |
Inch threads range (kinds) | 28-1/4 (31)TPI |
Module threads range (kinds) | 0.5-60 (45) MP |
Diametrical threads range (kinds) | 1/2-56 (38) DP |
Cross slide travel | 650mm |
Top slide travel | 300mm |
Tool section size | 45x45mm |
Tool post swivel angle | ±90° |
Rapid feed speed | Longitudinal: 3740; Cross: 1870; Top tool-post: 935 mm/min |
Tailstock quill diameter | 220mm |

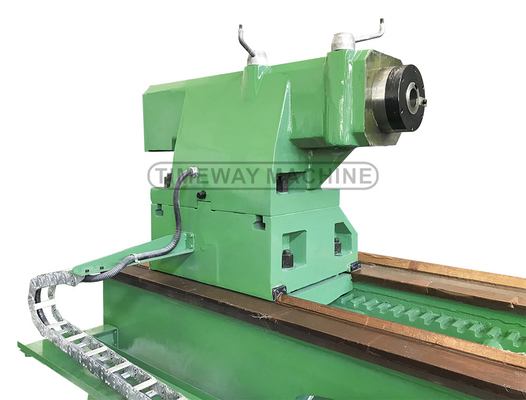

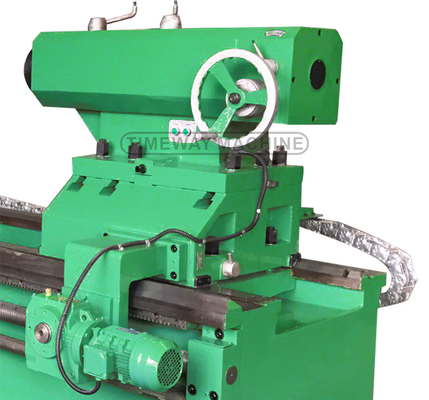

Tailstock quill travel | 300mm |
Tailstock quill taper | MT6 |
Main motor power | 22 kw |
Machine length | 6020/7020/8020/9020/11020/13020/15020 mm |
Machine width | 1995 mm |
Machine height | 2525 mm |
STANDAD ACCESSORIES:

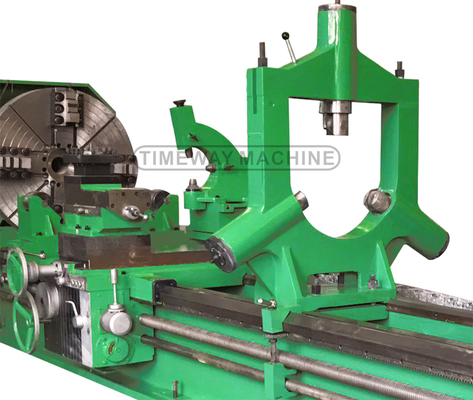

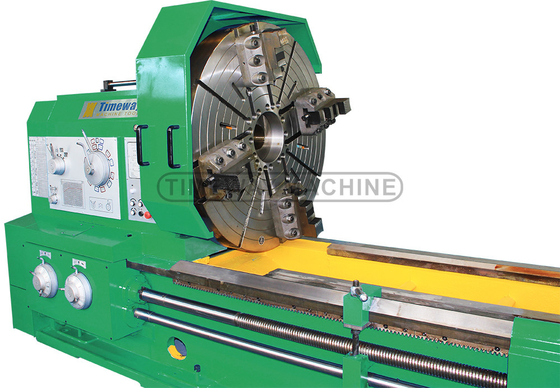

4-jaw heavy duty independent chuck, Steady rest, Follow rest, Dead center, 4-station tool post, Cooling system, Work lamp,Electric moving tailstock, Tools & tool-box, Leveling wedge and bolts, Operation manual (English).
OPTIONAL ACCESSORIES:
2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Roller support, Grinding attachment.
