16500 KG Weight High Selling Big Bore Chuck Oil Country Lathe
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | Q-520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $47,890.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 0 - 1870 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 780 |
| Type: | Horizontal | Voltage: | 220V/380V |
| Dimension(L*W*H): | 5000/6500x2100x1800 Mm | Weight (KG): | 16500 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional, Automatic, High Safety Level, High-accuracy, Easy To Operate |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 6000 Kg | Spindle Taper: | ISO40 |
| Cutting Torque: | 456 N.m | Rapid Feed Speed(mm/min): | 0 - 1870 Mm/min |
| Feed Speed(mm/min): | 0 - 1870 Mm/min | Tool Post Stations: | 4 |
| CNC Or Not: | Not | Machine Type: | Oil Country Lathe |
| Max. Swing Over Bed: | 1200 Mm | Max. Swing Over Cross Slide: | 710 Mm |
| Distance Between Centers: | 1500/3000 Mm | X-axis Travel: | 520 Mm |
| Max. Load Capacity: | 6000 Kg | Spindle Bore: | 520 Mm |
| Chuck Size: | 1000 Mm | Main Motor Power: | 22 Kw |
Product Description
Products Description

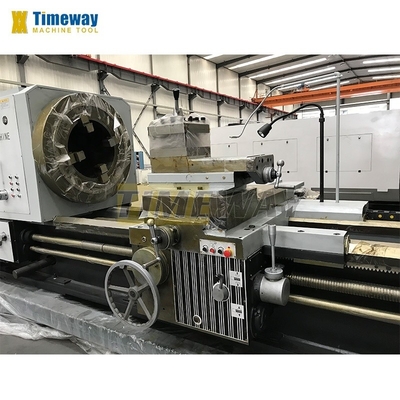

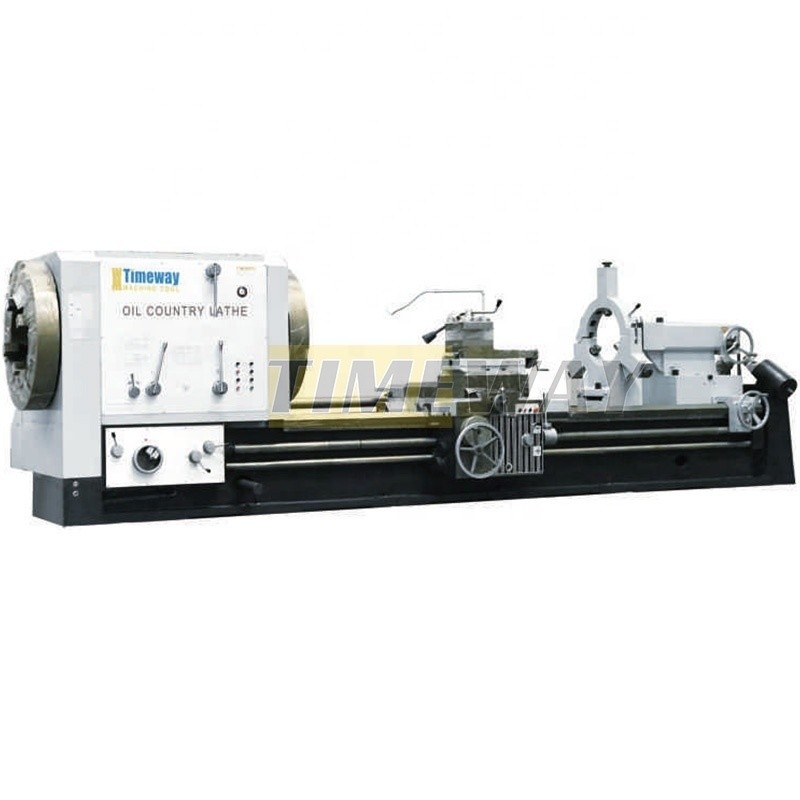

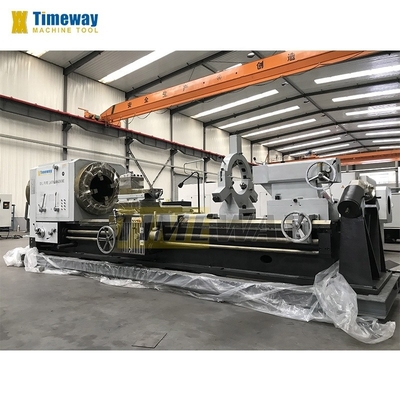

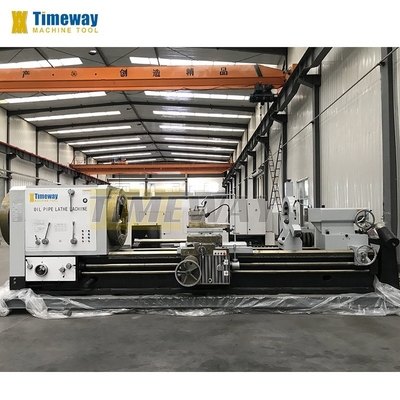

Oil country lathe Q-390,Q-440,Q-520
* After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.

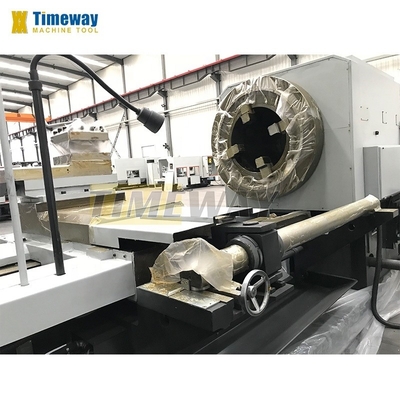

* The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so on. * At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
* The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.
Specification | Unit | Q-390 | Q-440 | Q-520 |
Max. swing over bed | mm | 1000 | 1000 | 1200 |
Max. swing over cross slide | mm | 610 | 610 | 710 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
Pipe threading range | mm | 190-380 | 270-430 | 330-510 |
Bed width | mm | 755 | 755 | 755 |
X-axis travel | mm | 520 | 520 | 520 |
Z-axis travel | mm | 1350/2850 | 1350/2850 | 1350/2850 |
Max. load capacity | kg | 6000 | 6000 | 6000 |
Spindle bore | mm | 390 | 440 | 520 |
Spindle speed steps | steps | 9 | 9 | 9 |
Spindle speed | rpm | 6-205 | 4.9-180 | 4.9-180 |
Chuck size | mm | 850 | 1000 | 1000 |
Chuck type | - | 4-jaw electric | 4-jaw electric | 4-jaw electric |
Turret type (manual) | - | V4 | V4 | V4 |
Tool shank size | mm | 45x45 | 45x45 | 45x45 |
X-axis feed range (steps) | mm/r | 0.05-0.75(32) | 0.05-0.75 (32) | 0.05-0.75 (32) |
X-axis rapid feed speed | mm/min | 1870 | 1870 | 1870 |
Z-axis feed range (steps) | mm/r | 0.1-1.5(32) | 0.1-1.5 (32) | 0.1-1.5 (32) |
Z-axis rapid feed speed | mm/min | 3740 | 3740 | 3740 |
No. of Metric thread and range | mm | 1-15(23) | 1-15 (23) | 1-15 (23) |
No. of Inch thread and range | TPI | 2-28(22) | 2-28 (22) | 2-28 (22) |
Tailstock quill diameter | mm | 140 | 160 | 160 |
Tailstock quill taper | - | MT6 | MT6 | MT6 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Main motor power | kw | 22 | 22 | 22 |
Rapid motor power | kw | 1.5 | 1.5 | 1.5 |
Coolant motor power | kw | 0.125 | 0.125 | 0.125 |
Machine dimensions (LxWxH) | mm | 4900/6400x2100x1700 | 5000/6500x2100x1700 | 5000/6500x2100x1800 |
Machine weight | kg | 12800/14300 | 13000/14500 | 15000/16500 |

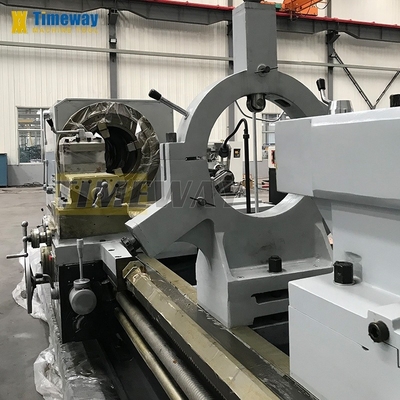

· Electric chuck · Follow rest · Dead center · 4-station tool post · Taper turning attachment · Cooling system · Work lamp · General tools · Leveling wedge and bolts· Operation manual (English). | · 2 or 3-axis digital indicator · Chuck guard · Tool-post guard · Rear support for long pipe |
